Vehicle Speed Sensor: Camry

For testing procedures of Vehicle Speed Sensor (VSS), see Fig 1-Fig 3 .

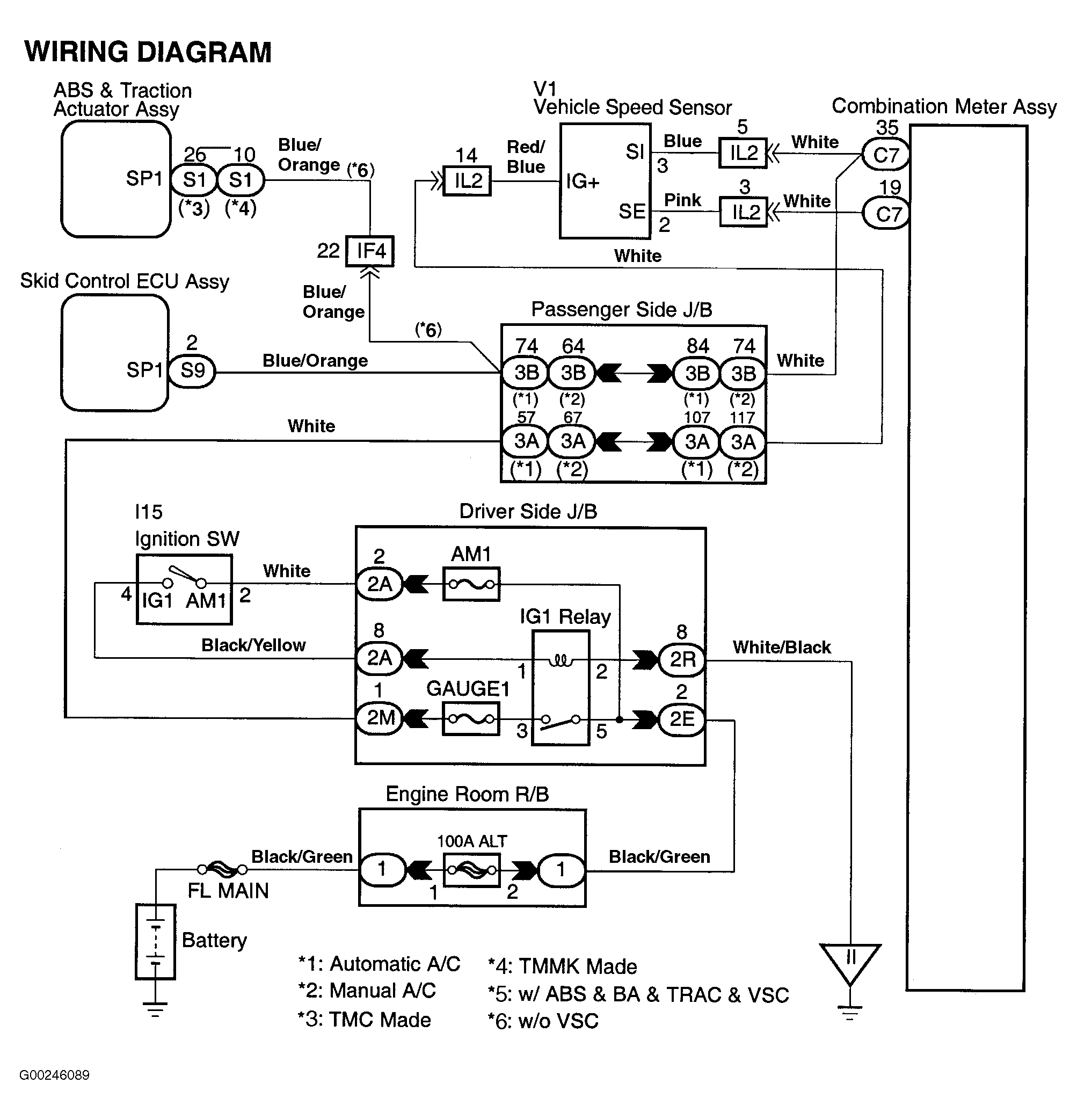

Fig 1: Testing Vehicle Speed Sensor - Wiring Diagram (Camry)
G00246089Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

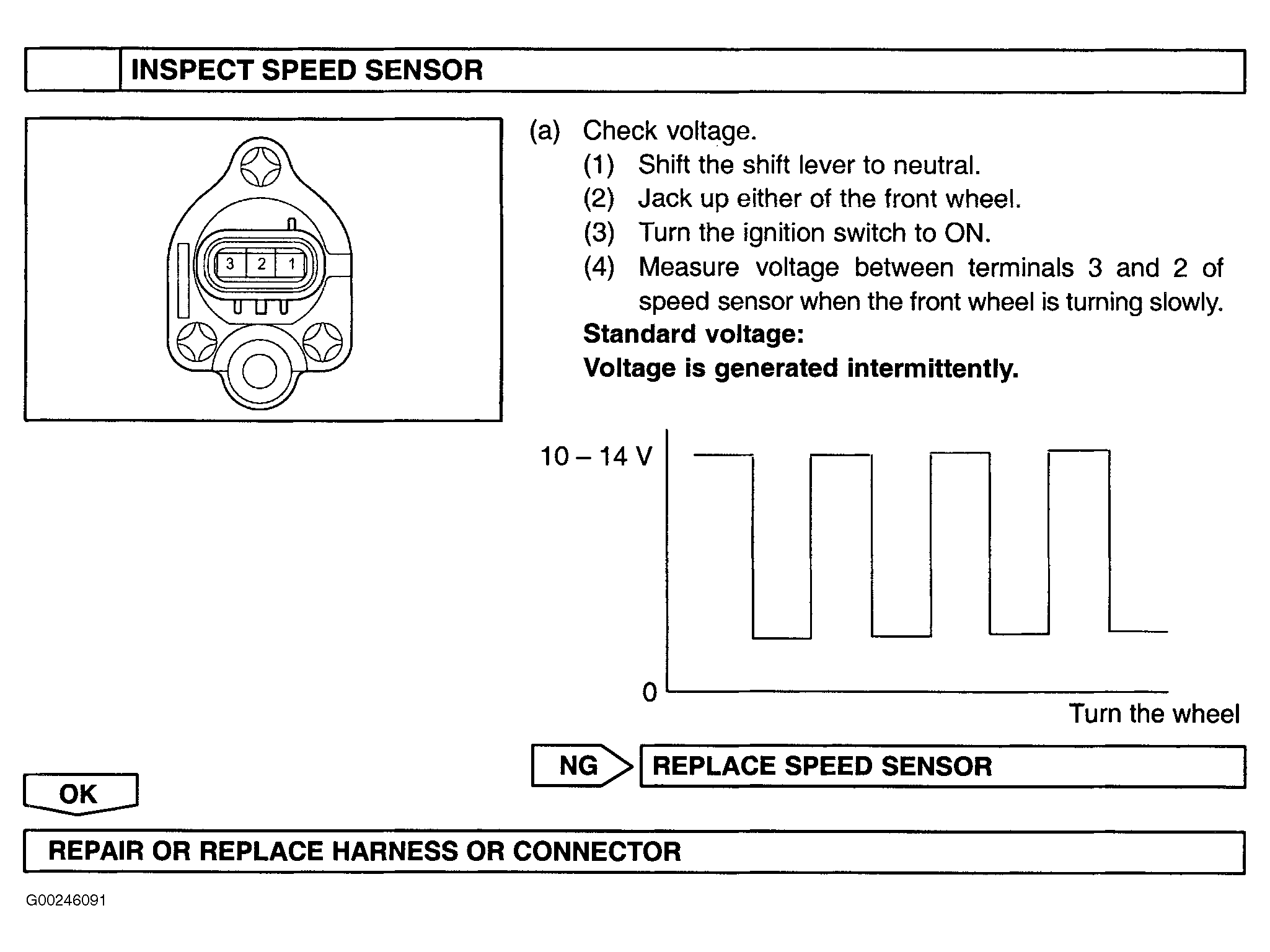

Fig 2: Testing Vehicle Speed Sensor - Step 1 (Camry)
G00246090Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

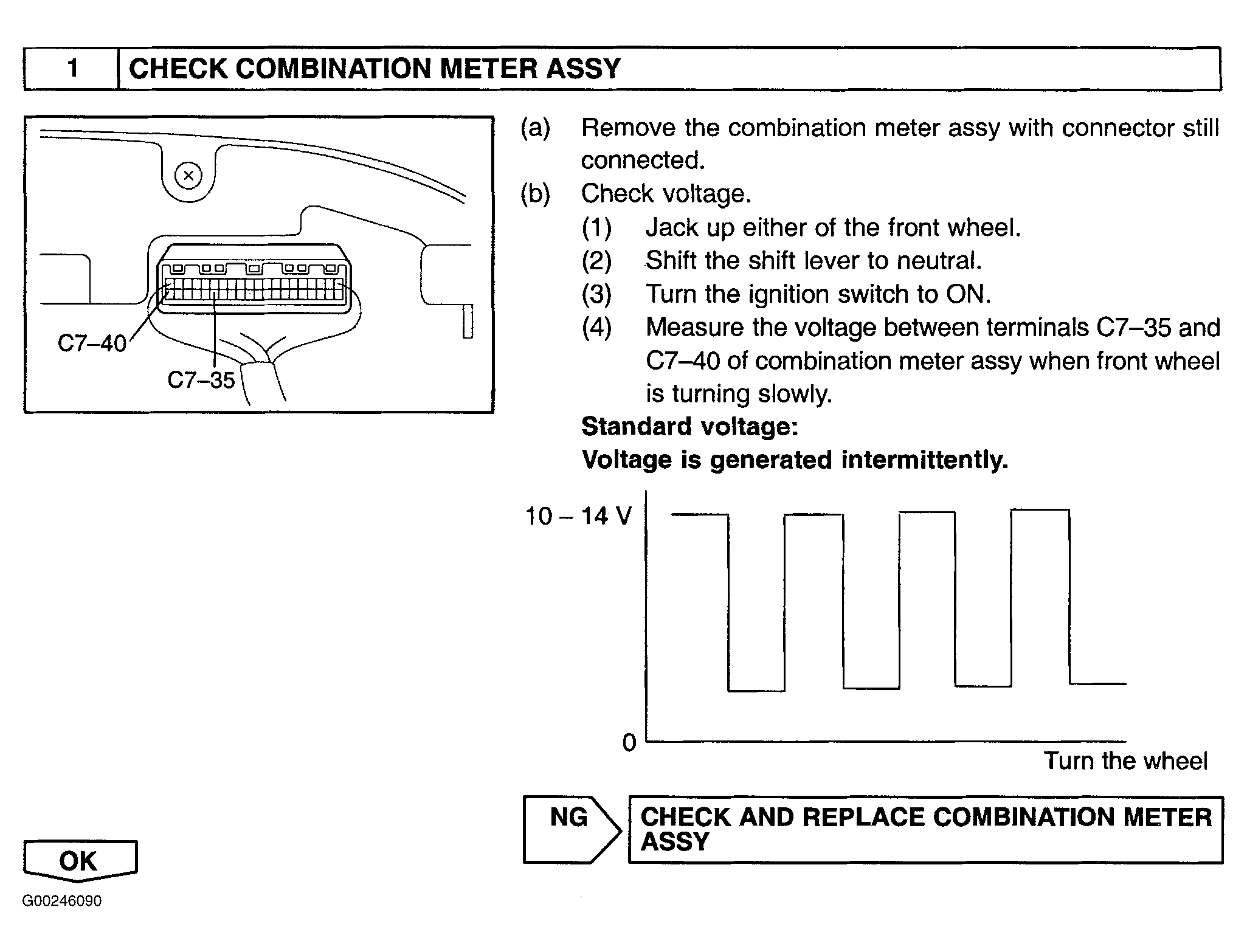

Fig 3: Testing Vehicle Speed Sensor - Step 2 (Camry)
G00246091Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
