Circuit Description & Possible Causes

For circuit description and possible causes, see Fig 1.

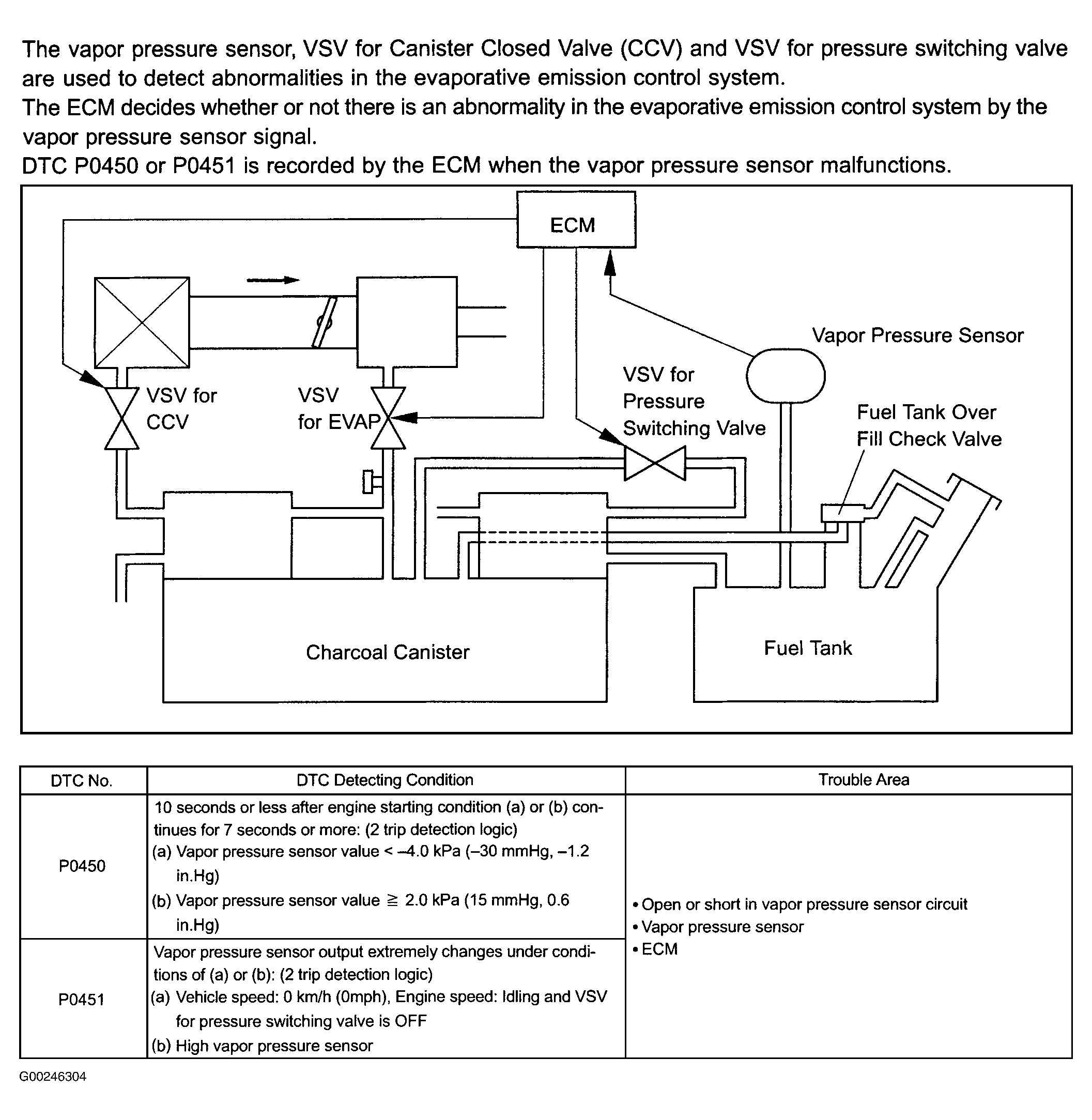

Fig 1: DTCs P0450 & P0451 Circuit Description
G00246304Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
