Terminals Of Ecu

WARNING: This page is about a different variant/trim than selected.

For Cruise Control Terminal Voltages, see Fig 1 and Fig 2 .

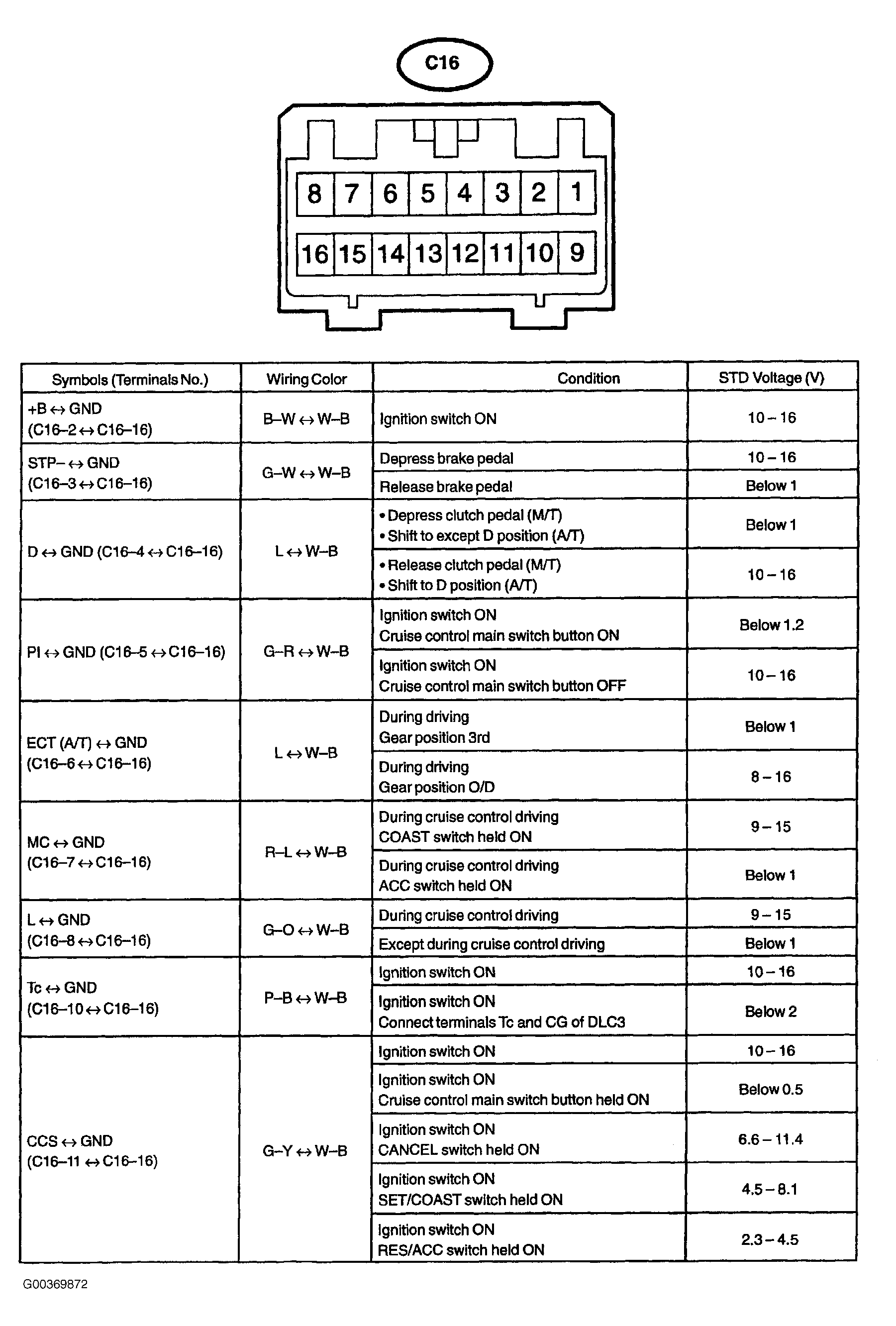

Fig 1: Identifying Cruise Control Terminal Voltages (1 Of 2)
G00369872Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

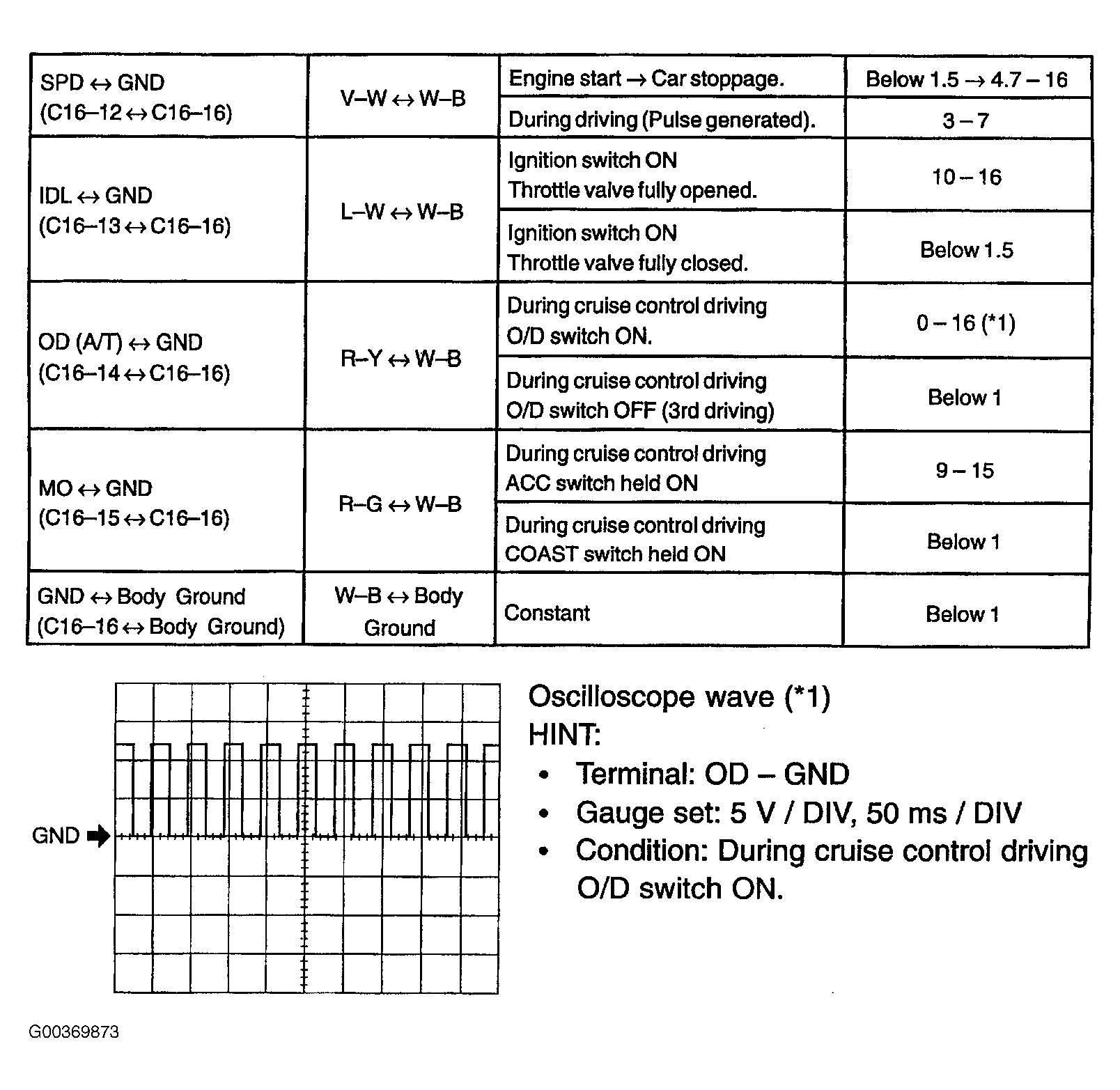

Fig 2: Identifying Cruise Control Terminal Voltages (2 Of 2)
G00369873Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
