Audio & Visual System: Components

WARNING: This page is about a different car, the 2004 Toyota Matrix. However, it is still accessible from the selected car via links, so may be relevant.

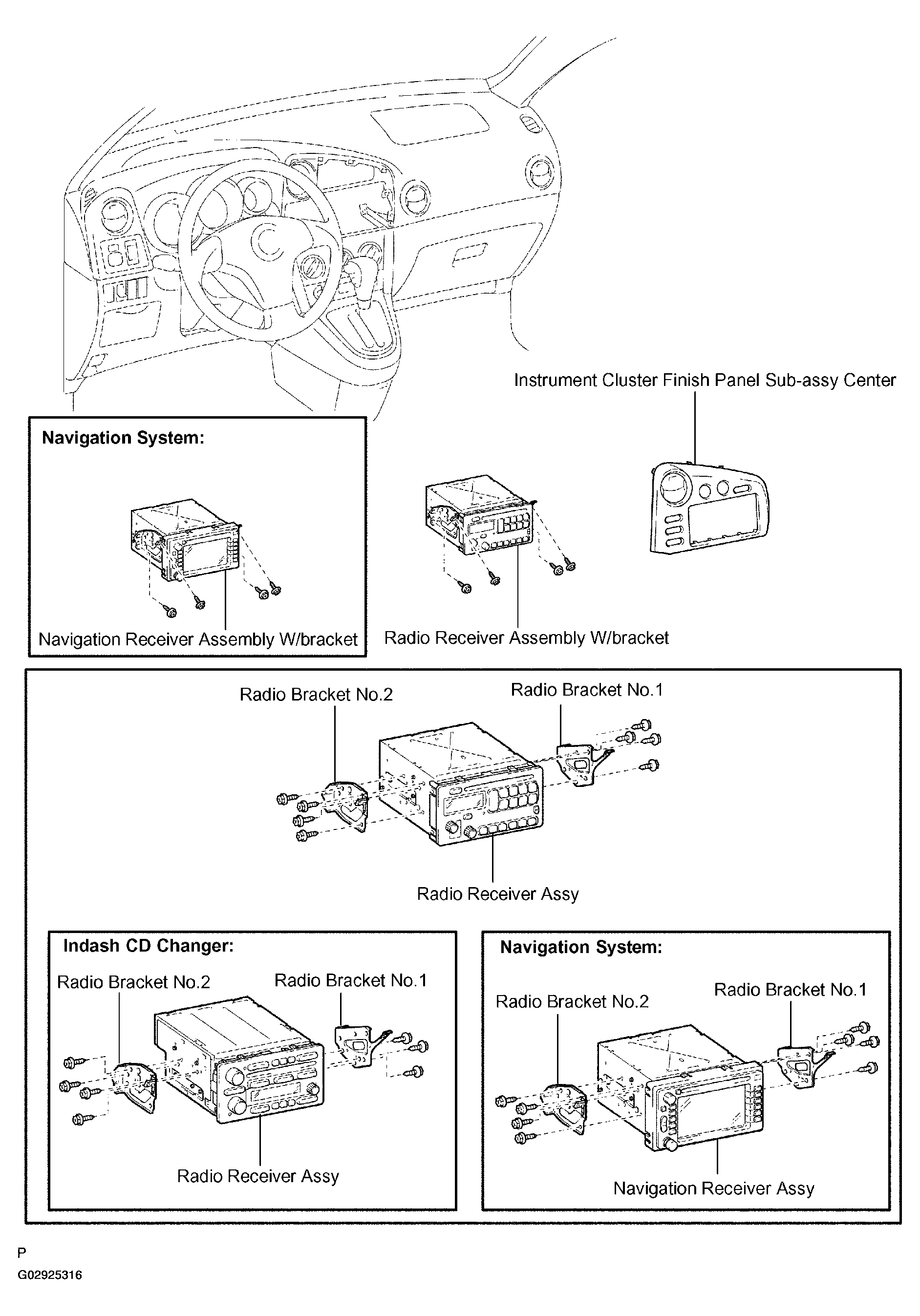

Fig 1: Identifying Audio And Visual System Components (1 Of 3)
G02925316Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

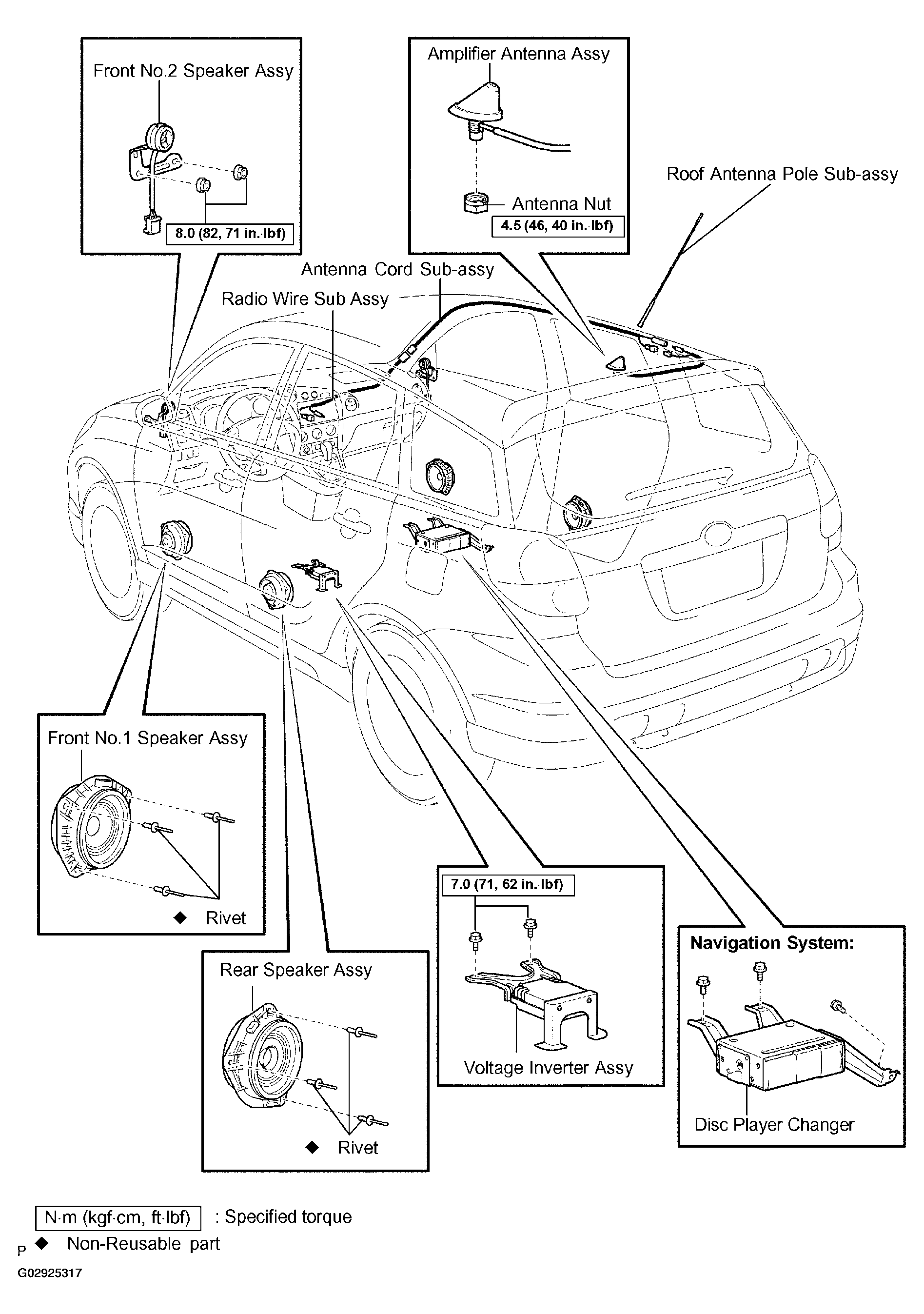

Fig 2: Identifying Audio And Visual System Components (2 Of 3)
G02925317Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

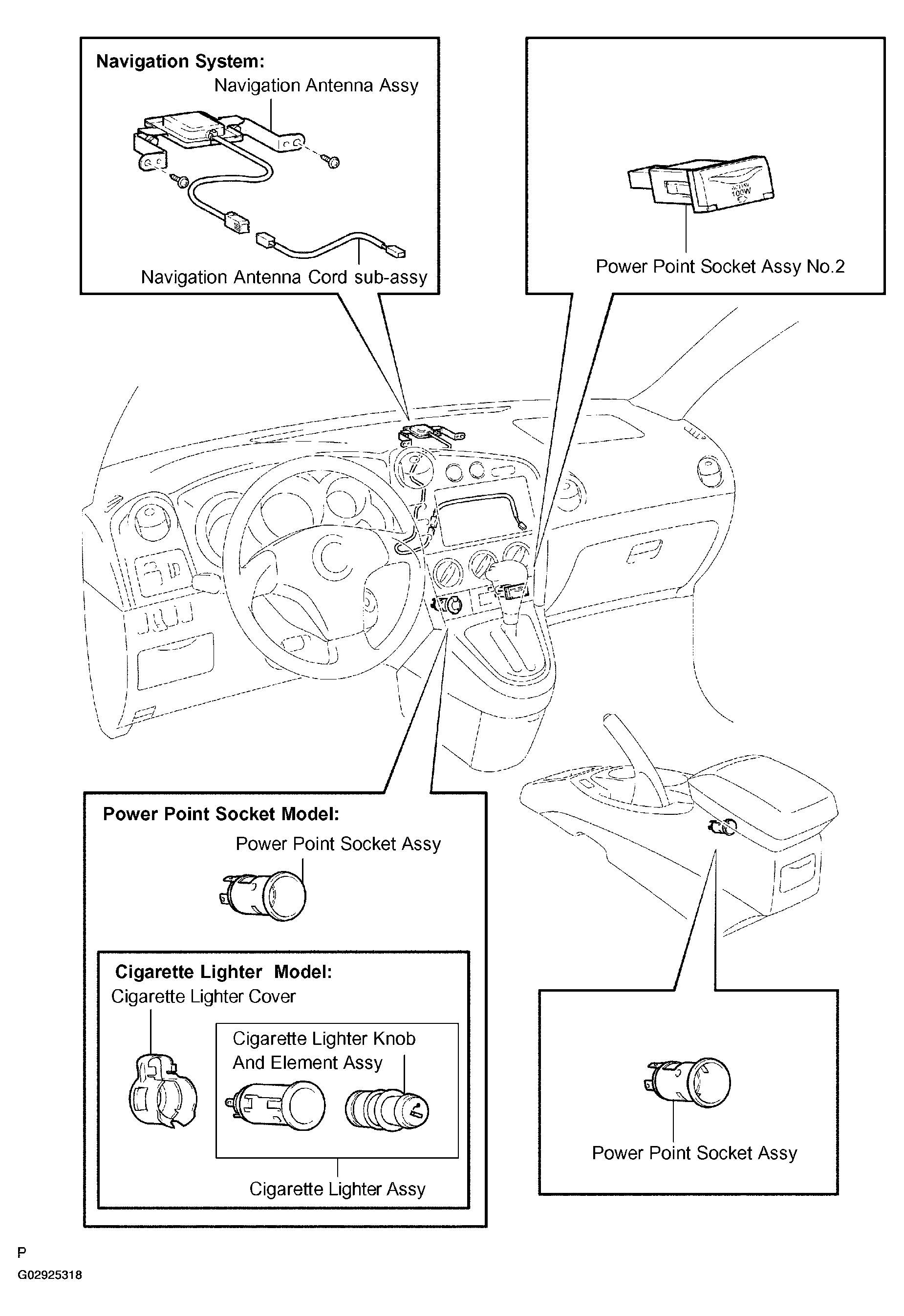

Fig 3: Identifying Audio And Visual System Components (3 Of 3)
G02925318Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
