Problem Symptoms Table

WARNING: This page is about a different car, the 2004 Toyota Matrix. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Use the table in Fig 1 to help determine the cause of the problem. The numbers indicate the priority of the likely cause of the problem. Check each part in order. If necessary, replace these parts.

HEADLAMP AND TAIL LAMP

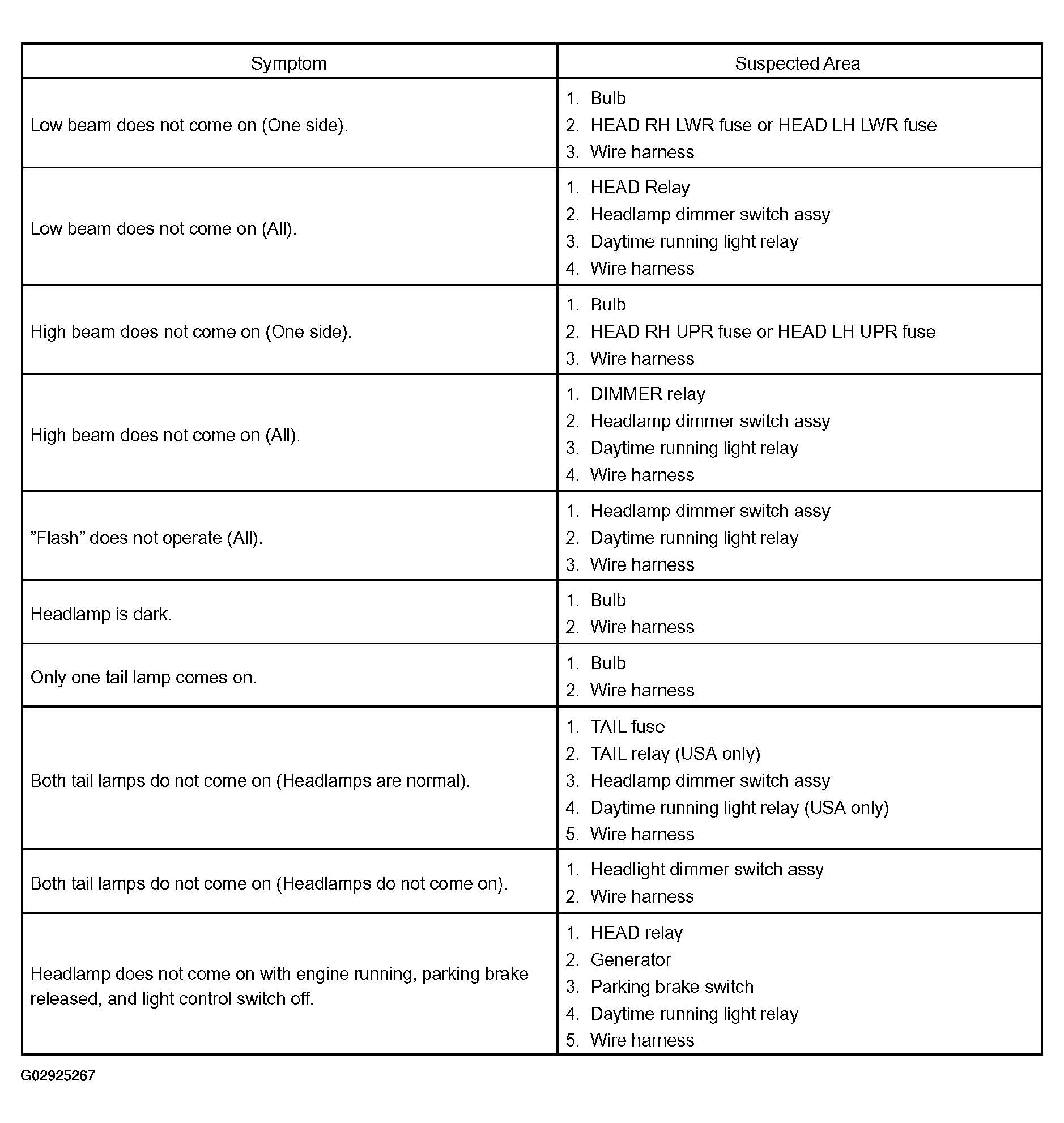

Fig 1: Problem Symptoms Table-Head Lamp & Tail Lamp
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
FRONT FOG LAMP SYSTEM

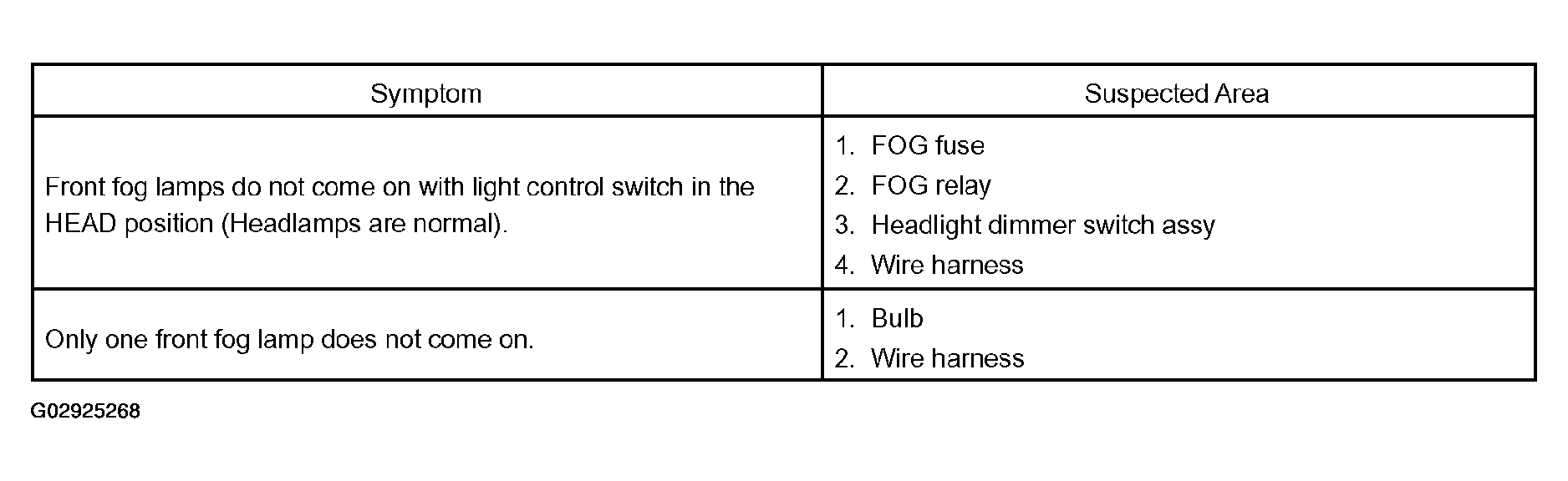

Fig 2: Problem Symptoms Table-Front Fog Lamp System
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
TURN SIGNAL AND HAZARD WARNING SYSTEM

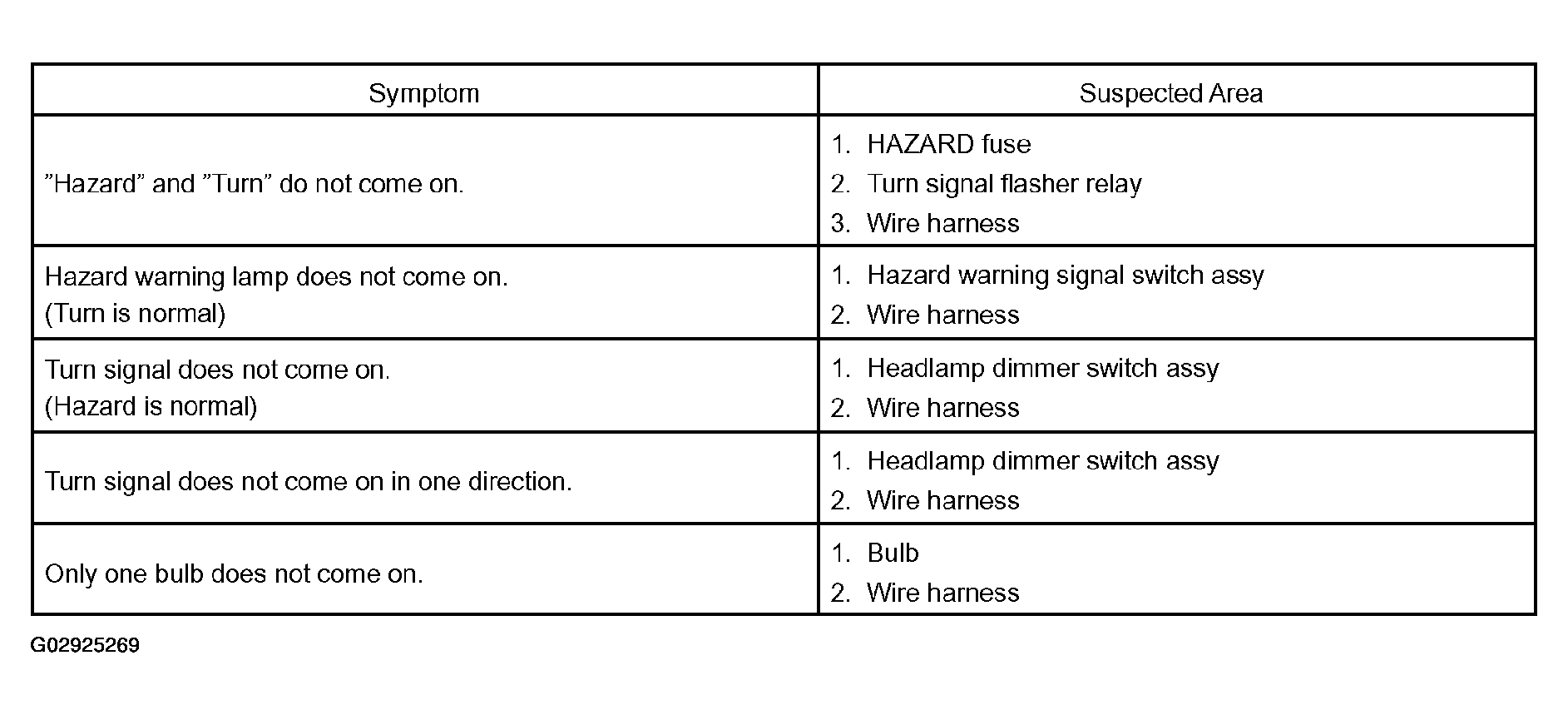

Fig 3: Problem Symptoms Table-Turn Signals Hazard Warning System
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

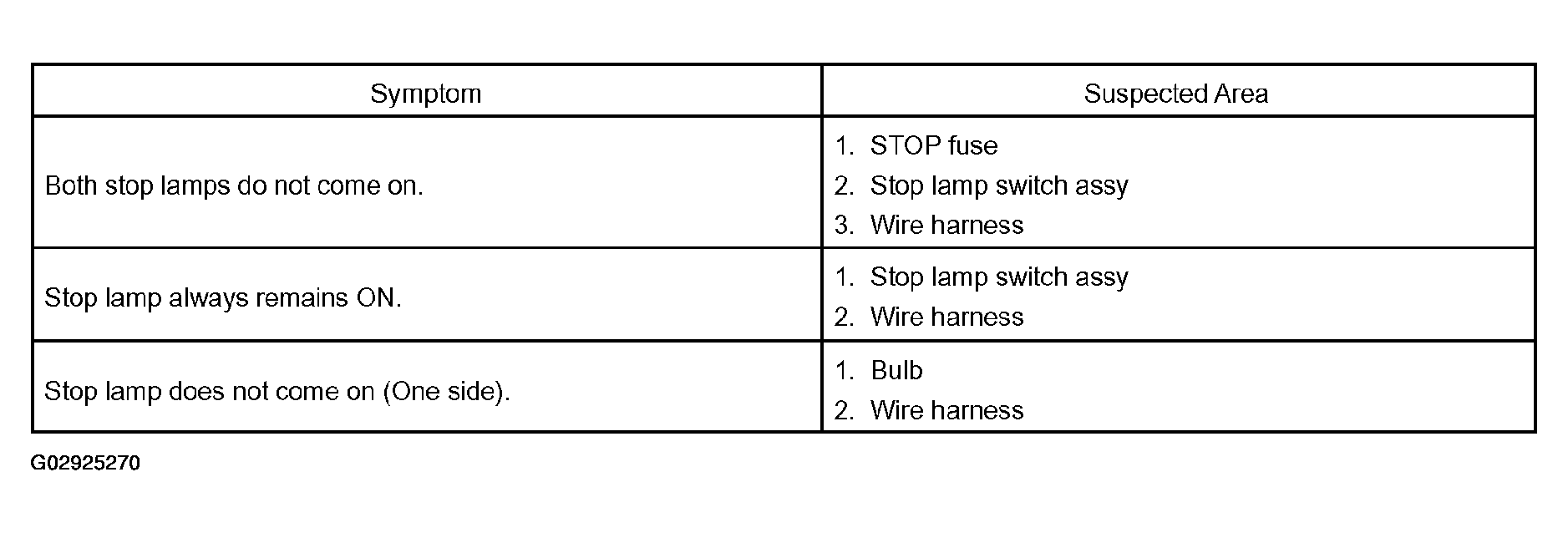

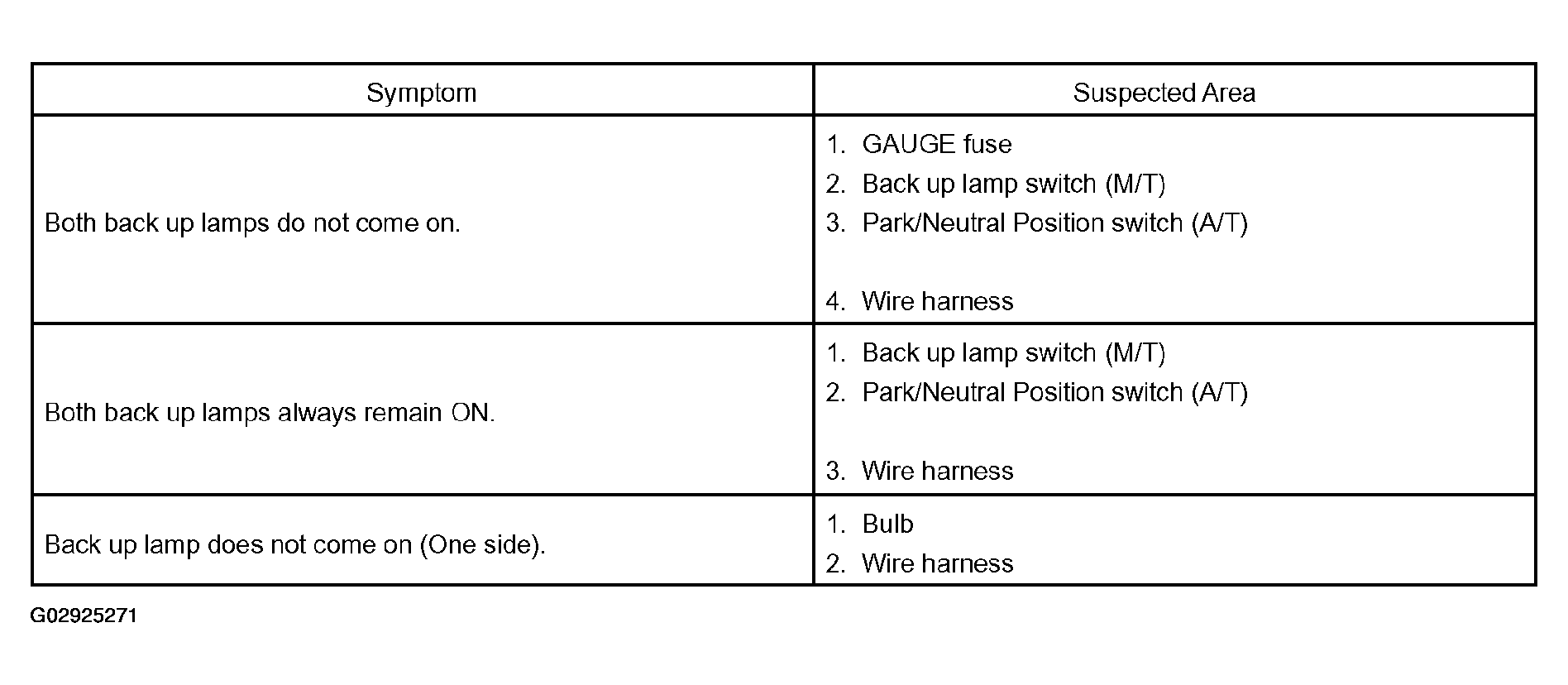

LIGHT CONTROL RHEOSTAT SYSTEM

Fig 7: Problem Symptoms Table-Light Control Rheostat System
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
