Problem Symptoms Table

WARNING: This page is about a different car, the 2003 Toyota Sequoia. However, it is still accessible from the selected car via links, so may be relevant.

DOOR LOCK CONTROL

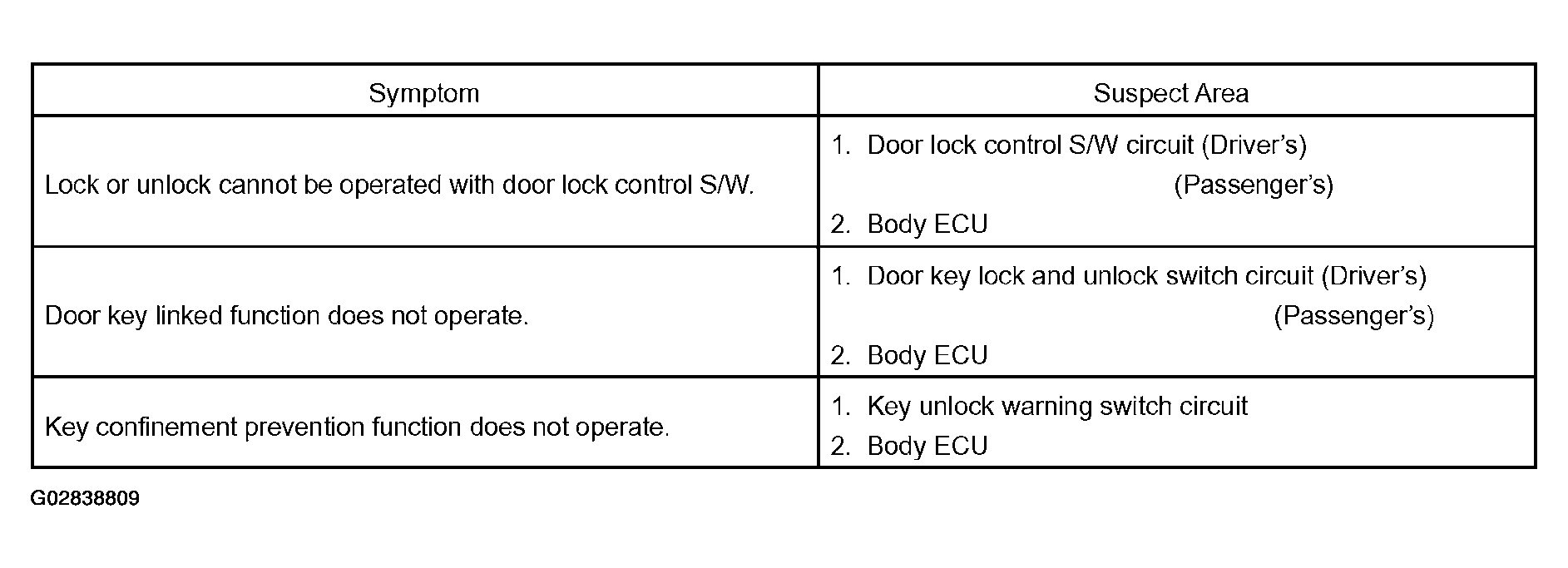

Fig 1: Door Lock Control Problem Symptoms Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

THEFT DETERRENT SYSTEM

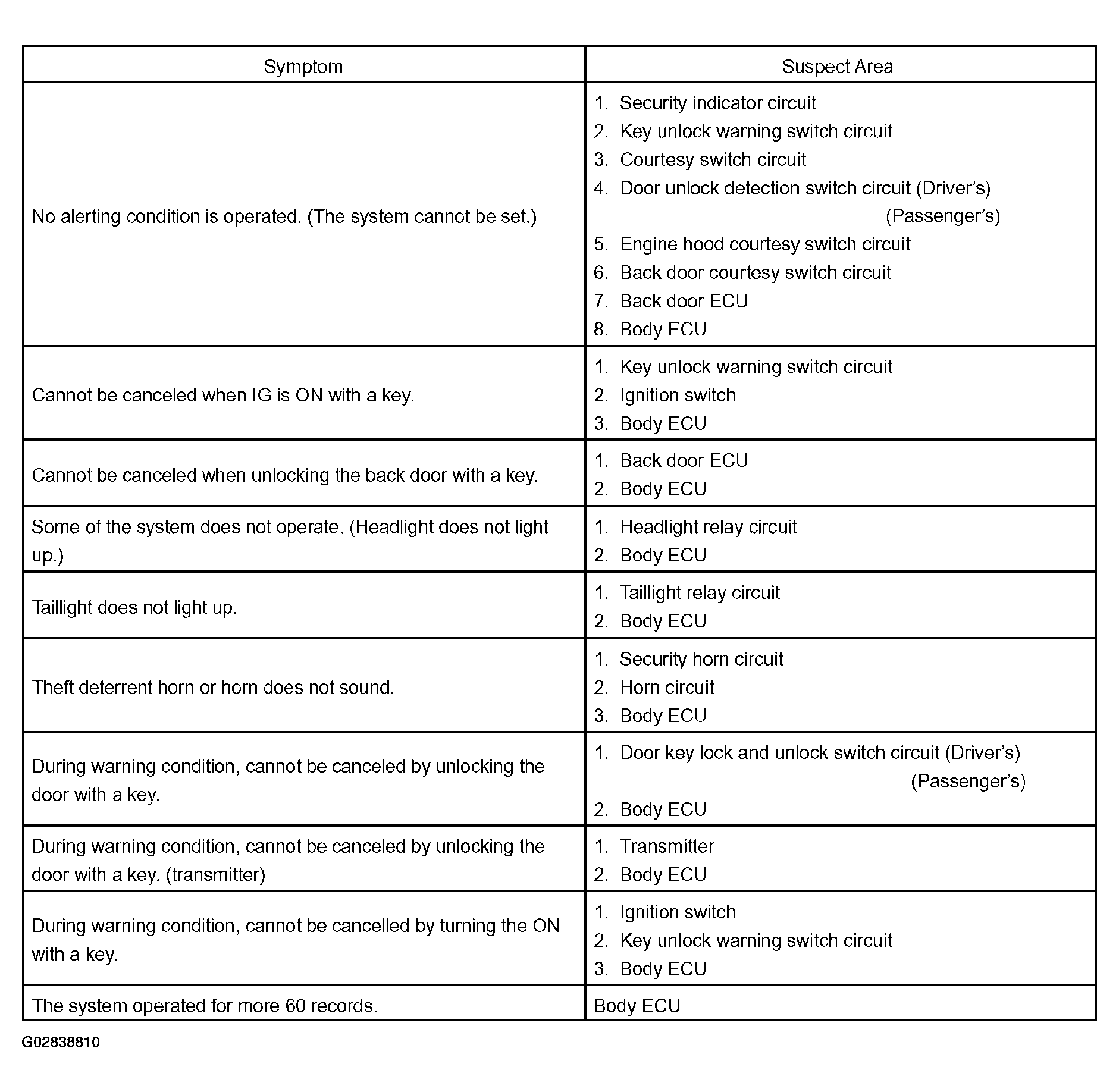

Fig 2: Theft Deterrent System Problem Symptoms Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

WIRELESS DOOR LOCK CONTROL

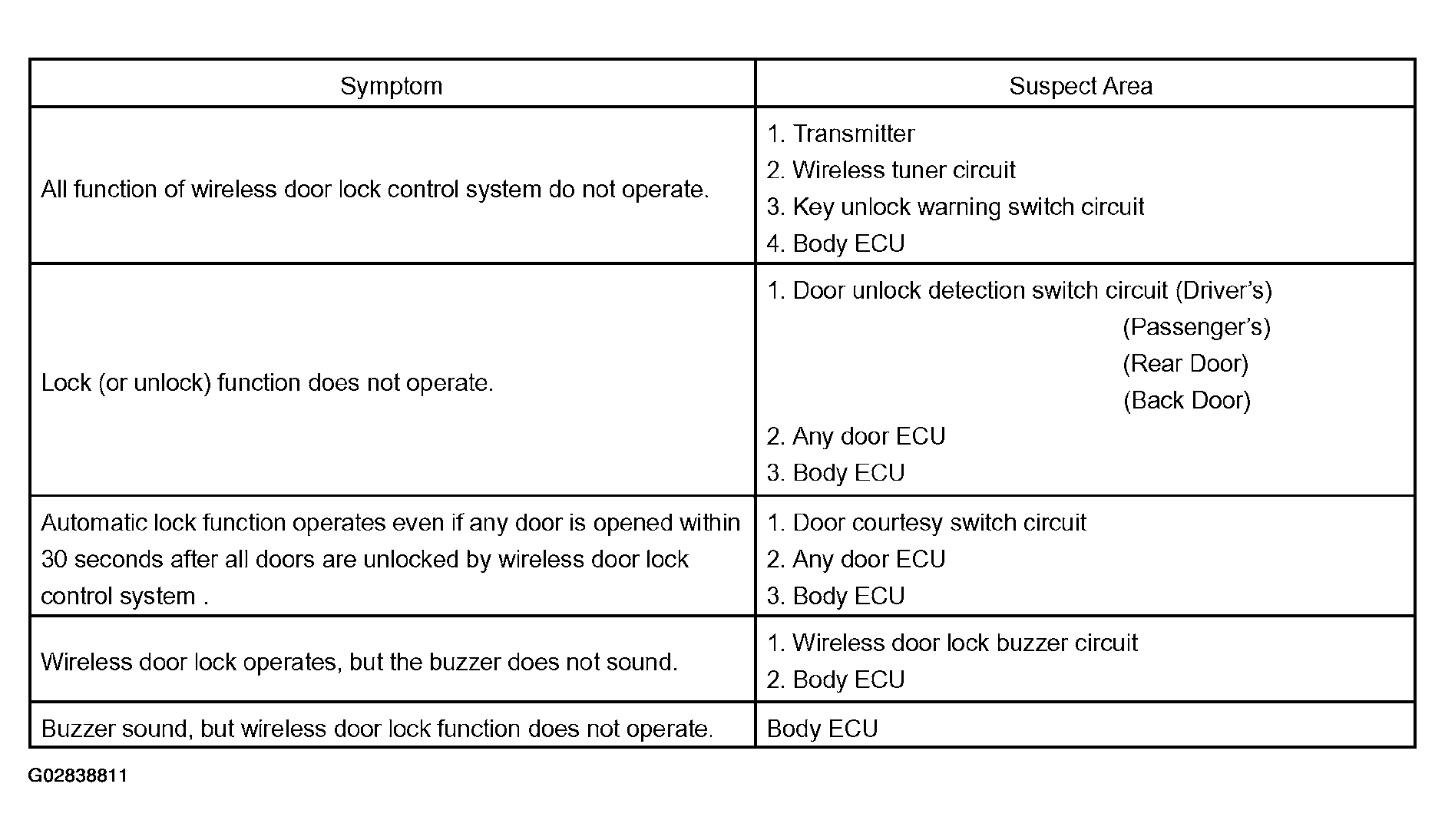

Fig 3: Wireless Door Lock Control Problem Symptoms Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REAR WIPER AND WASHER

Fig 4: Rear Wiper And Washer Problem Symptoms Chart

LIGHT CONTROL

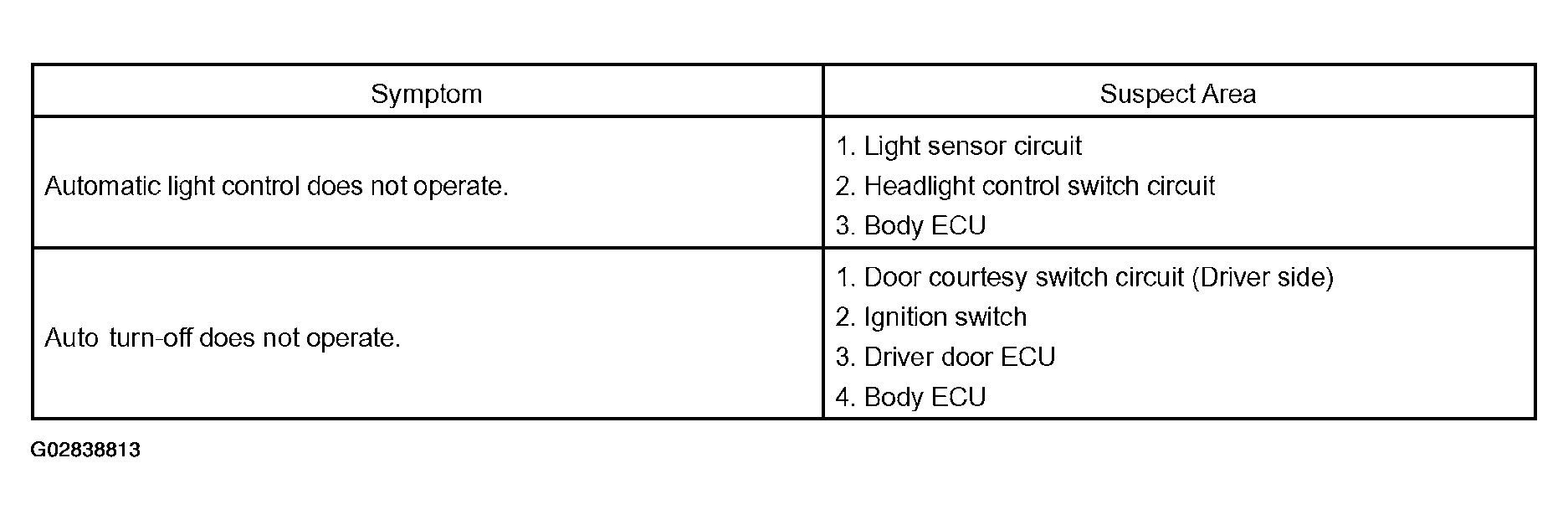

Fig 5: Light Control Problem Symptoms Chart

OTHERS

Fig 6: Others Problem Symptoms Chart
