Step 4 - Inspect Combination Meter Circuit

WARNING: This page is about a different car, the 2002 Toyota Tundra. However, it is still accessible from the selected car via links, so may be relevant.

See CIRCUIT .

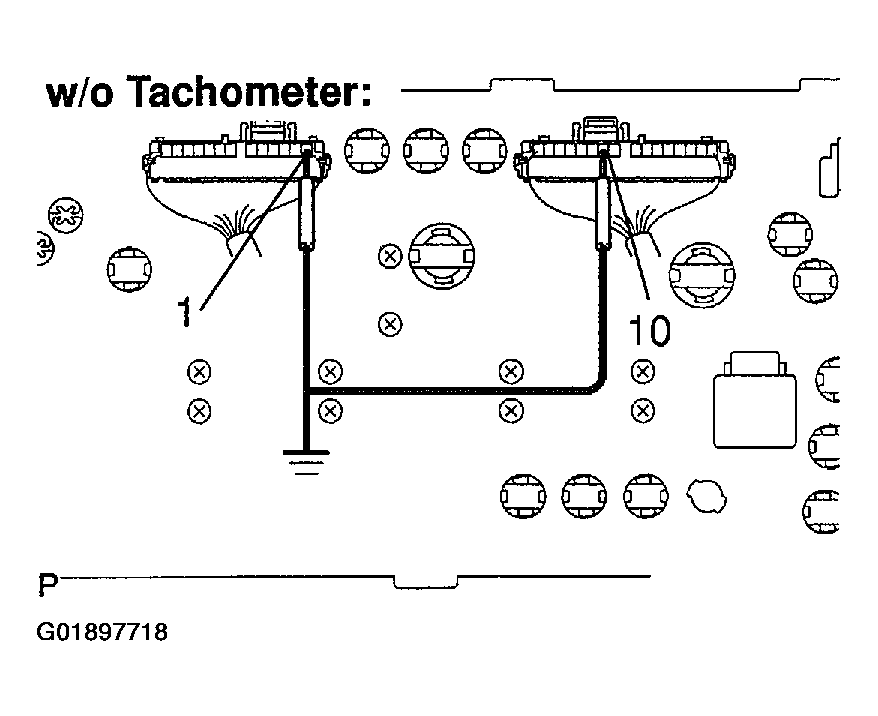

Fig 1: Identifying Combination Meter Terminals (Connector Disconnected W/O Tachometer)
G01897718Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
