Door Unlock Detection Switch Circuit: Wiring Diagram

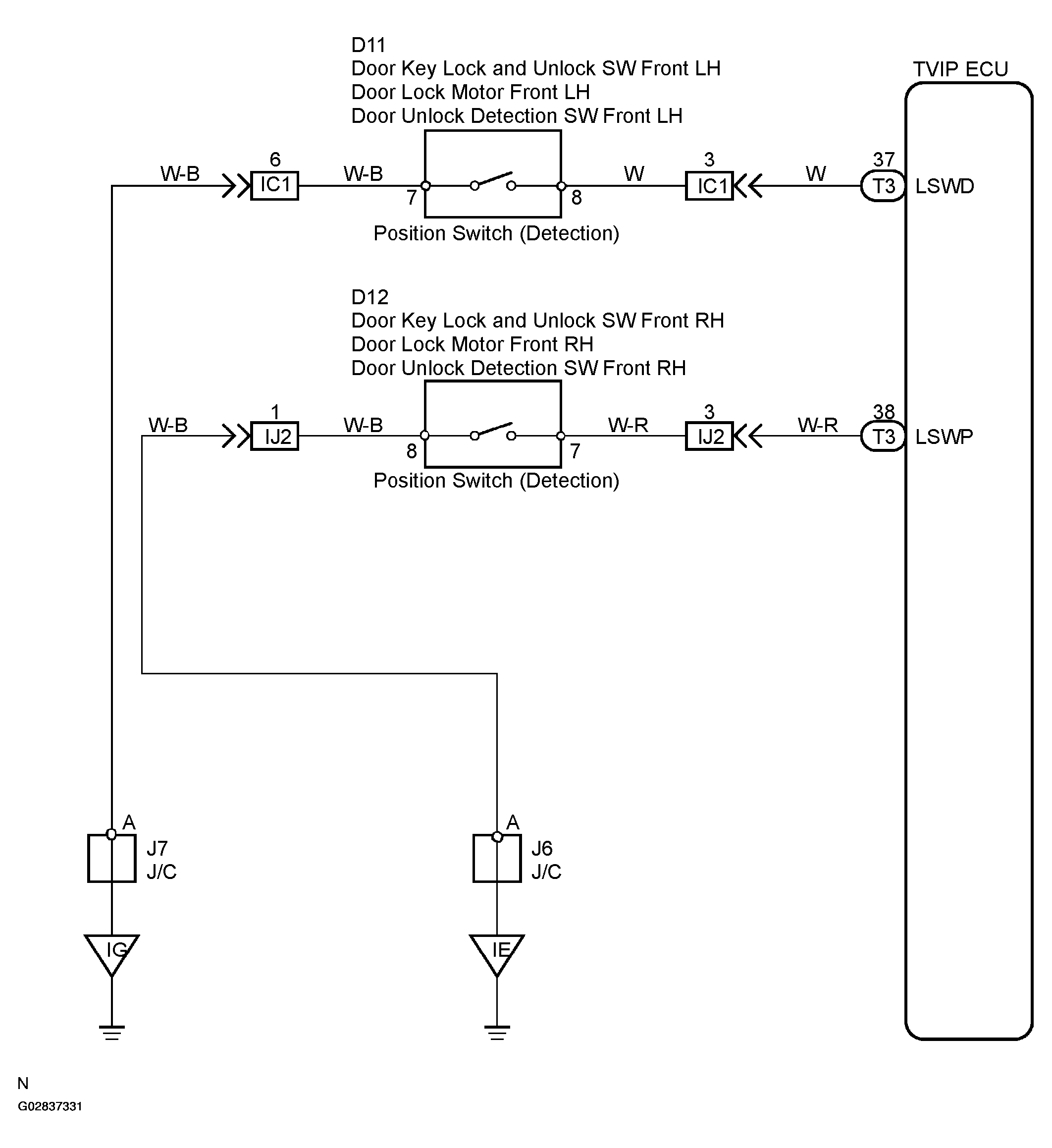

Fig 1: Wiring diagram - Door Unlock Detection Switch Circuit
G02837331Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
