Terminals Of Ecu

  1. NAVIGATION RECEIVER ASSY
    Fig 1: Identifying Navigation Receiver Assy Connector Terminals
    G02837138Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

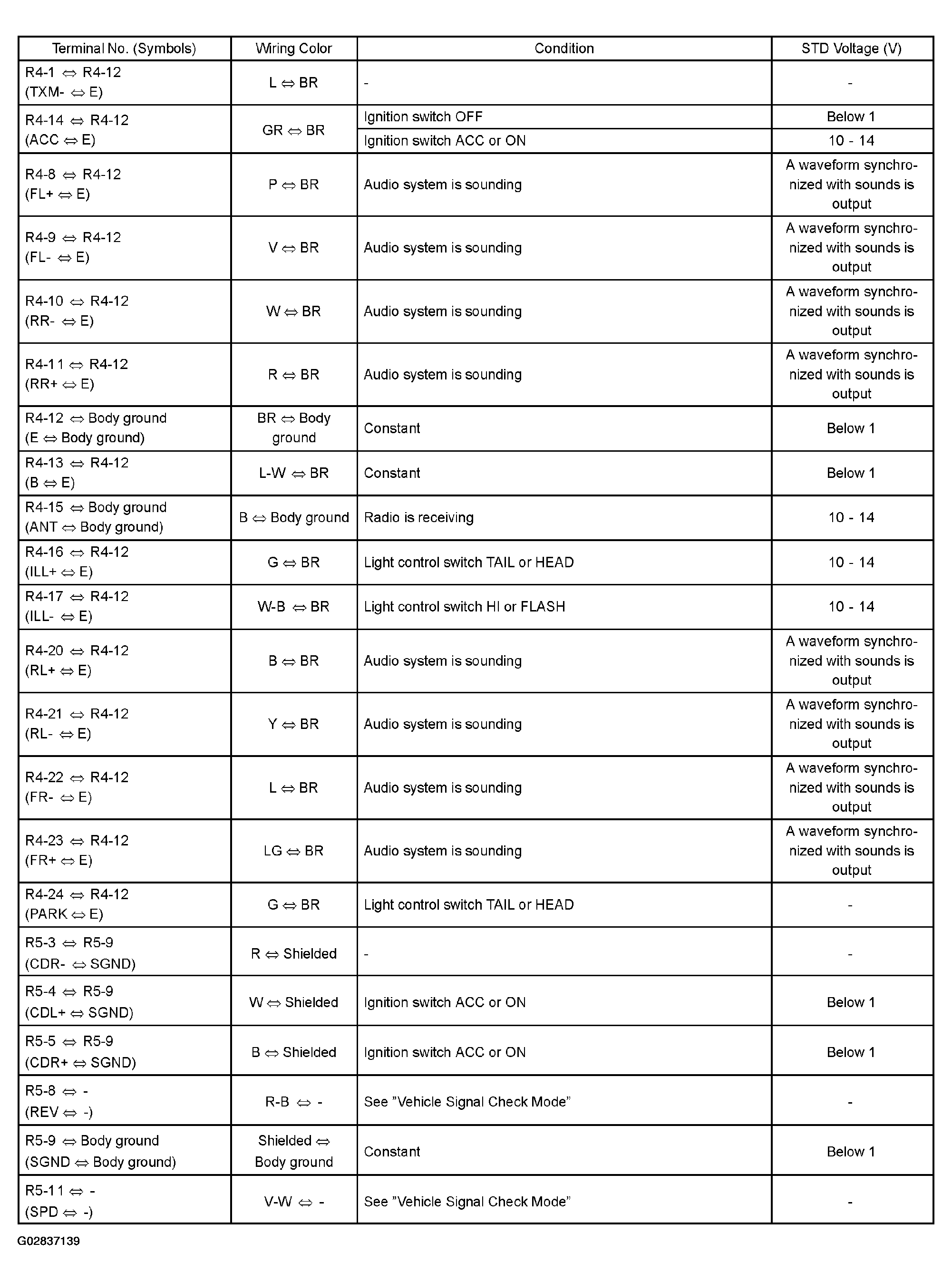

    Fig 2: Navigation Receiver Assy Connector Terminals Condition & STD Voltage Chart
    G02837139Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. DISC PLAYER CHANGER

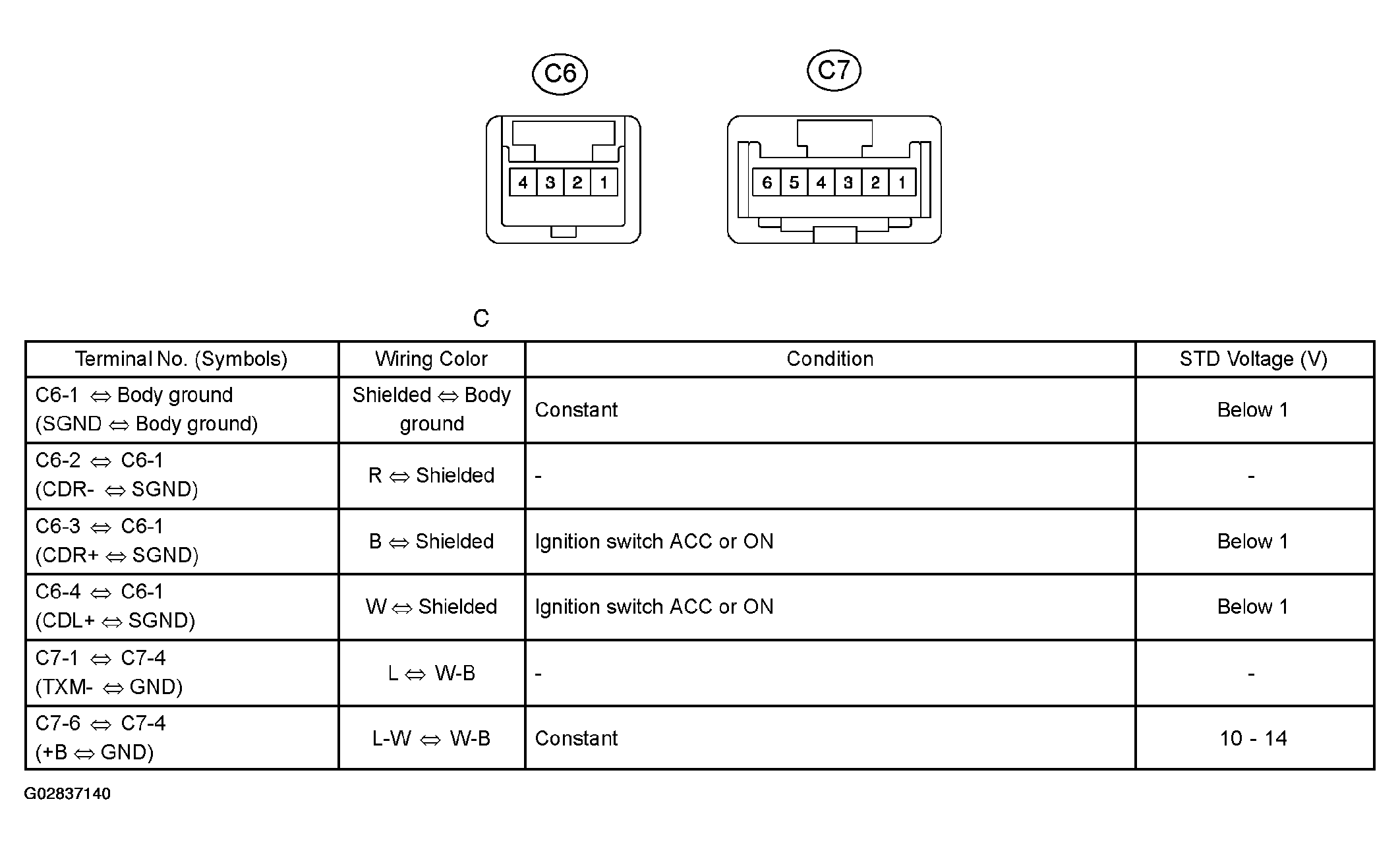

    Fig 3: Identifying Disc Player Changer Connector Terminals
    G02837140Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
