Map Disc Cannot Be Inserted: Wiring Diagram

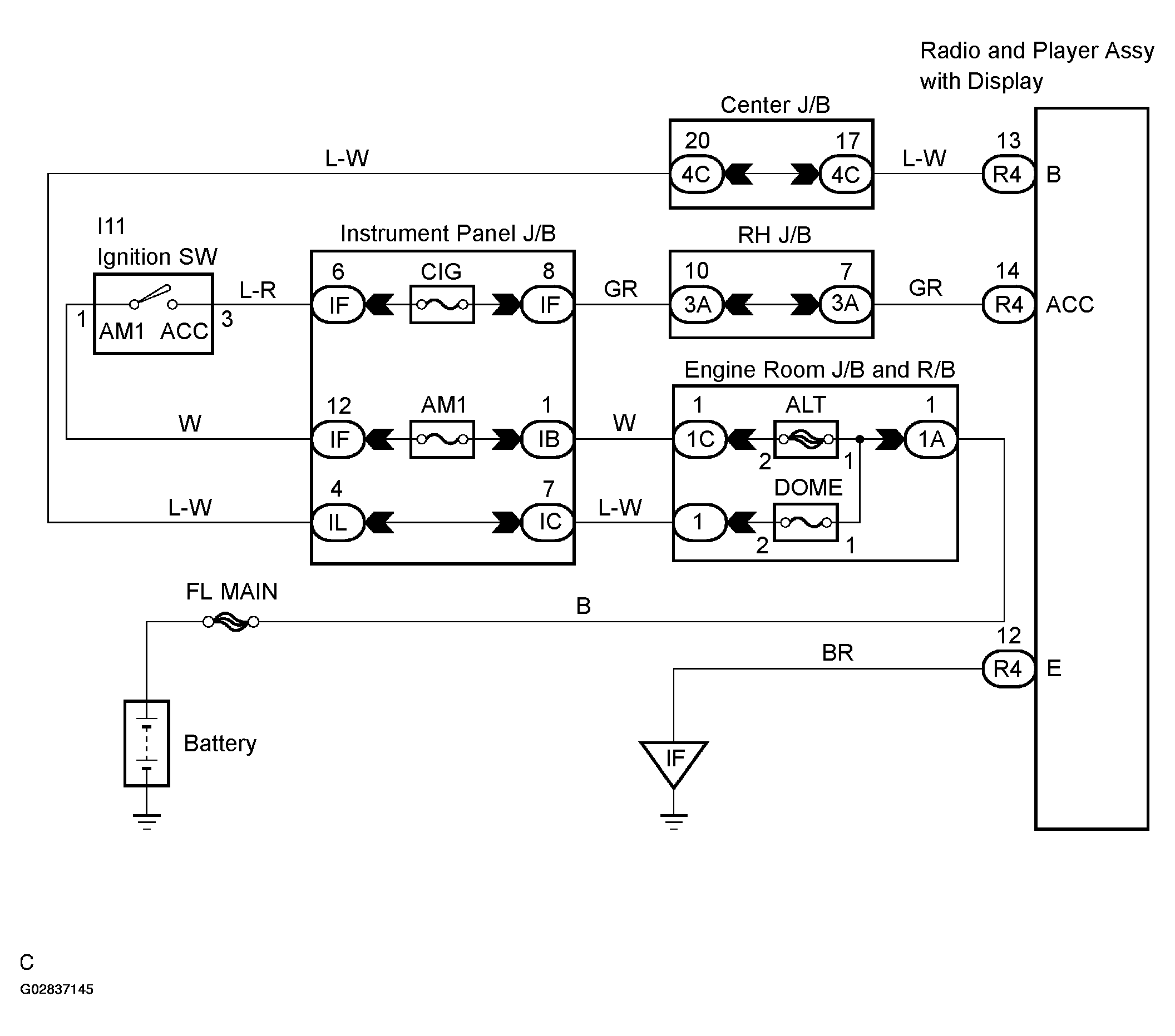

Fig 1: Wiring Diagram - Radio & Player Assy (Map Disc Not Inserting)
G02837145Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
