ECU & Combination switch
For ECU and combination switch terminal resistance values, see illustration. See
Fig 1
.

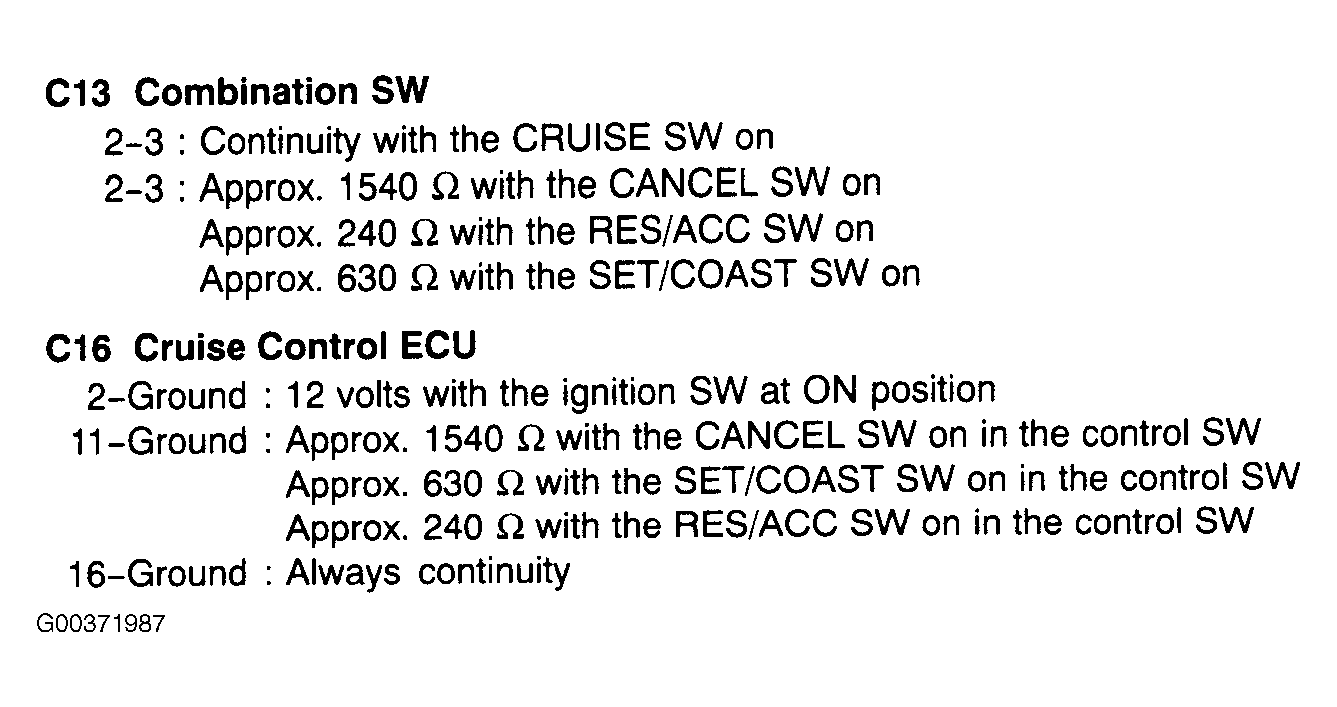

Fig 1: Identifying ECU & Combination Switch Terminal Resistance Values
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
