Manual Transmission/Transaxle

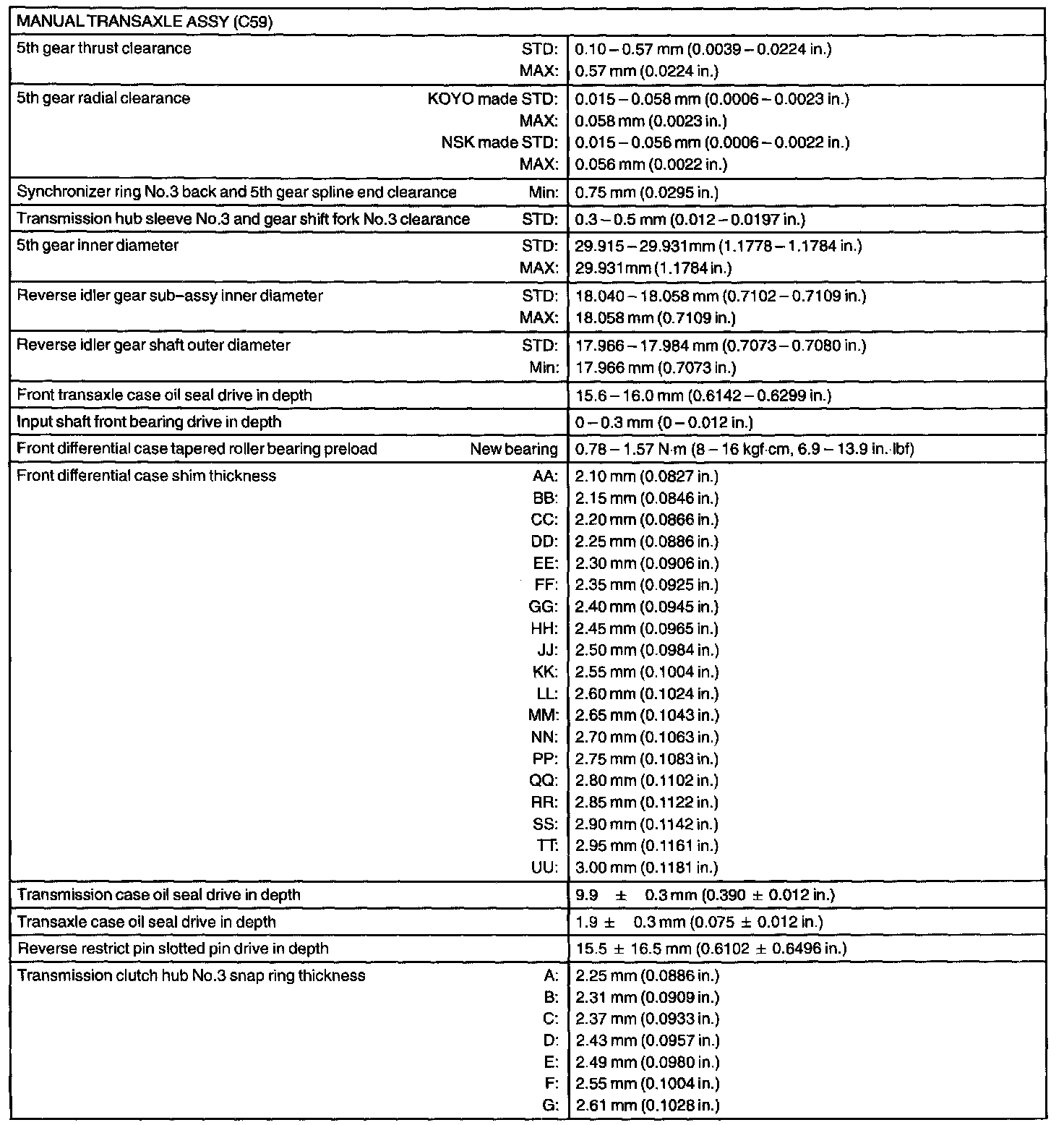

Manual Transaxle Assy - Service Data:

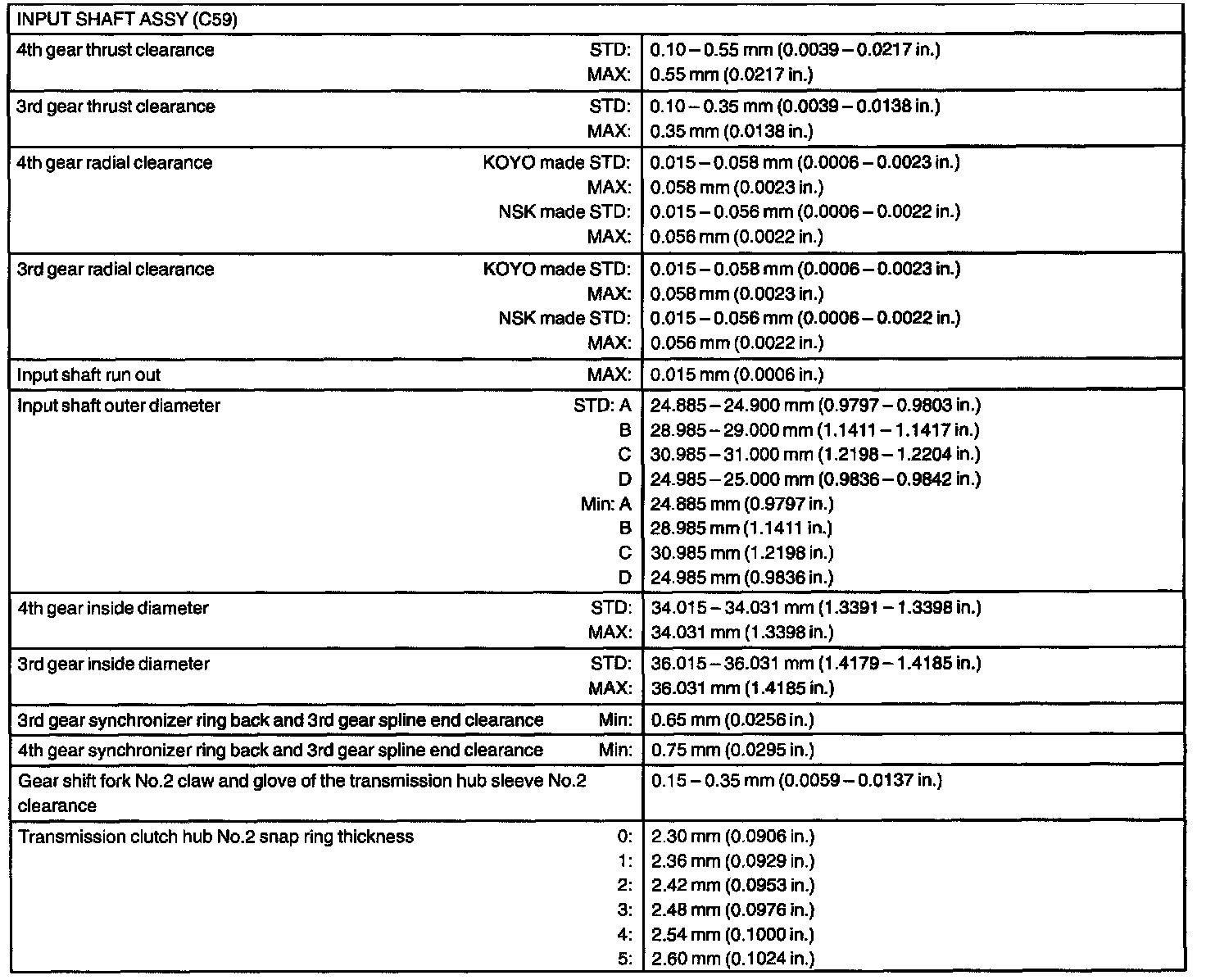

Input Shaft Assy - Service Data Part 1:

Input Shaft Assy - Service Data Part 2:

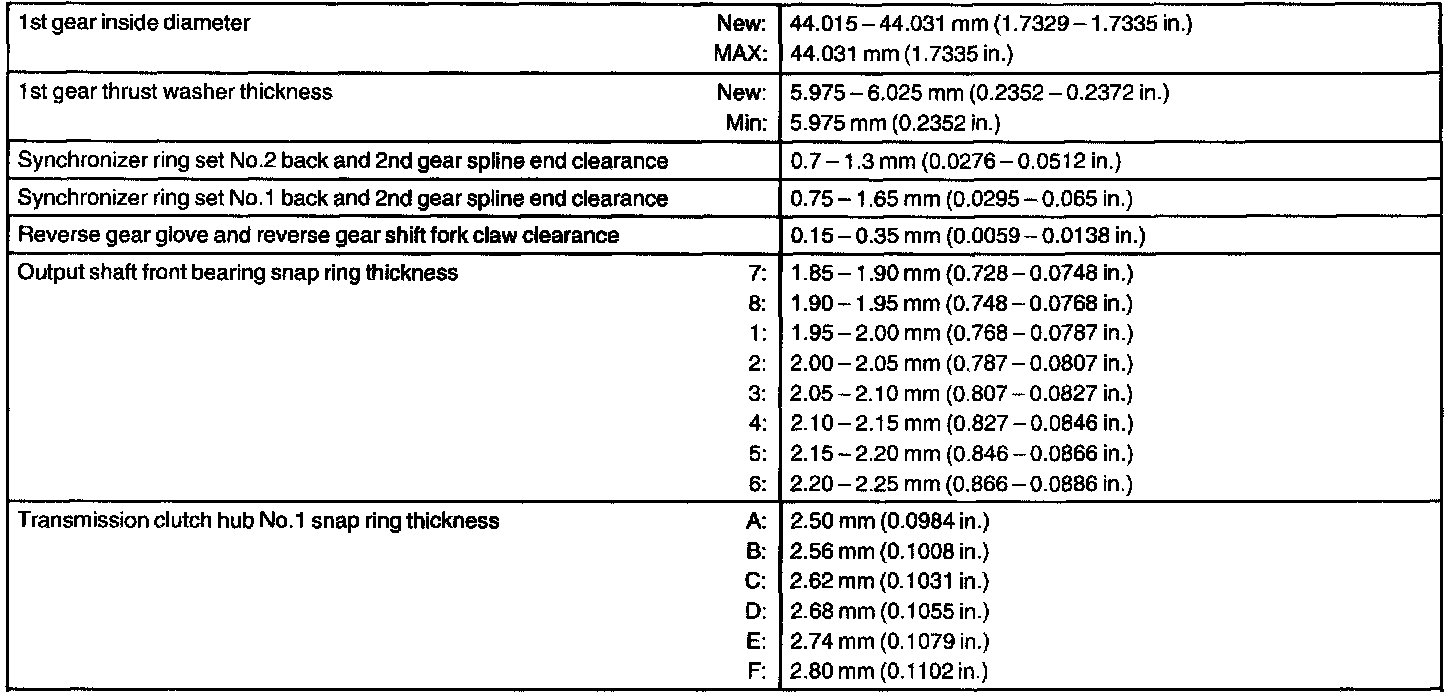

Output Shaft Assy - Service Data Part 1:

Output Shaft Assy - Service Data Part 2:

Differential Case Assy (MTM) Part 1:

Differential Case Assy (MTM) Part 2:

Shift And Select Lever Shaft Assy - Service Data:

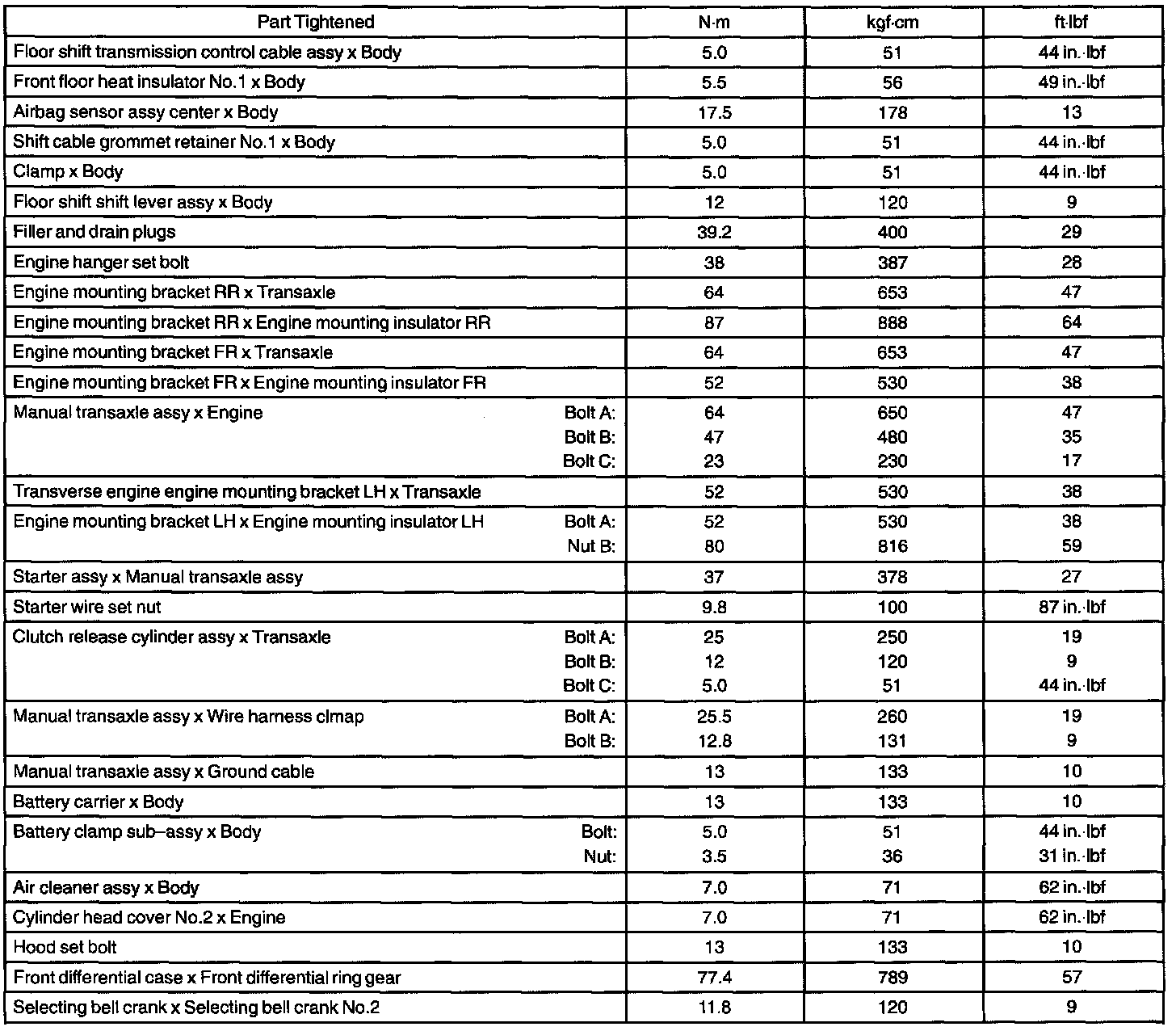

Manual Transmission Transaxle - Torque Specification:

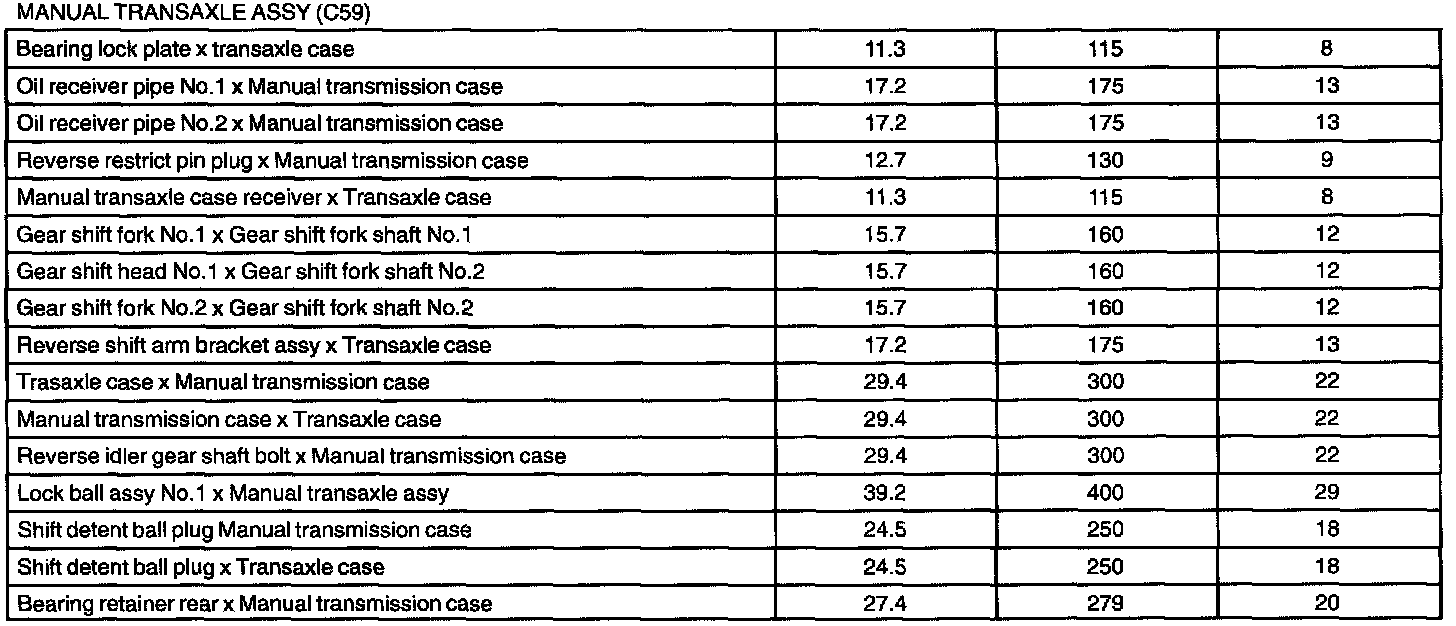

Manual Transaxle Assy - Torque Specification Part 1:

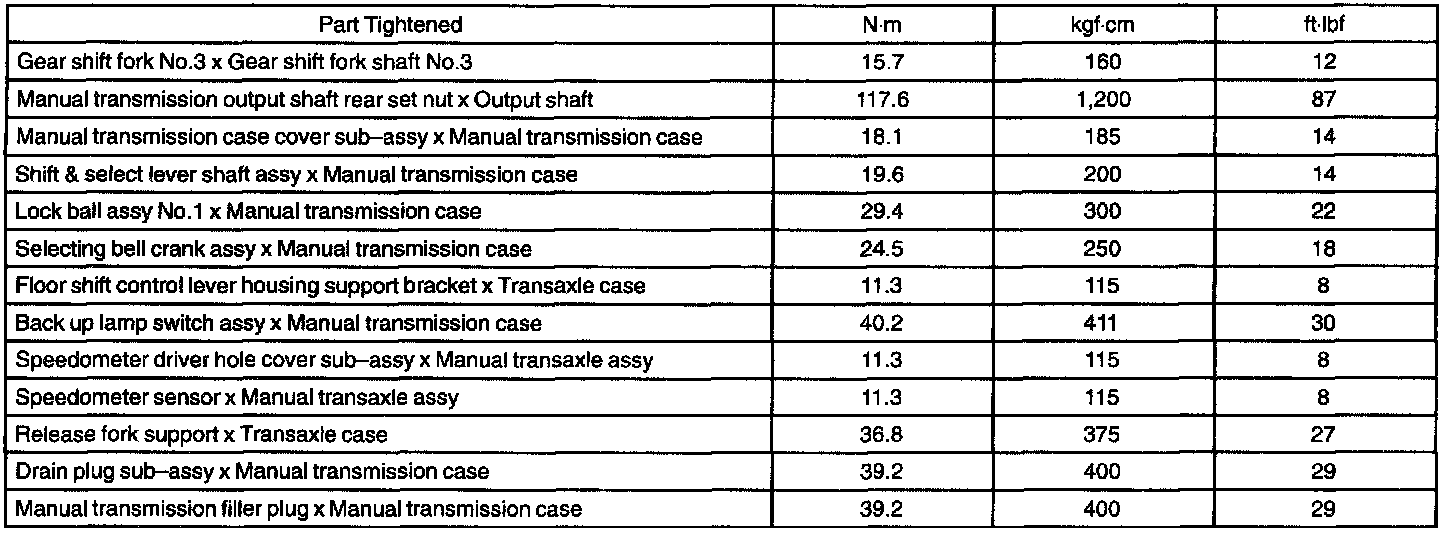

Manual Transaxle Assy - Torque Specification Part 2:
