Ignition Switch & Key Unlock Warning System: Location

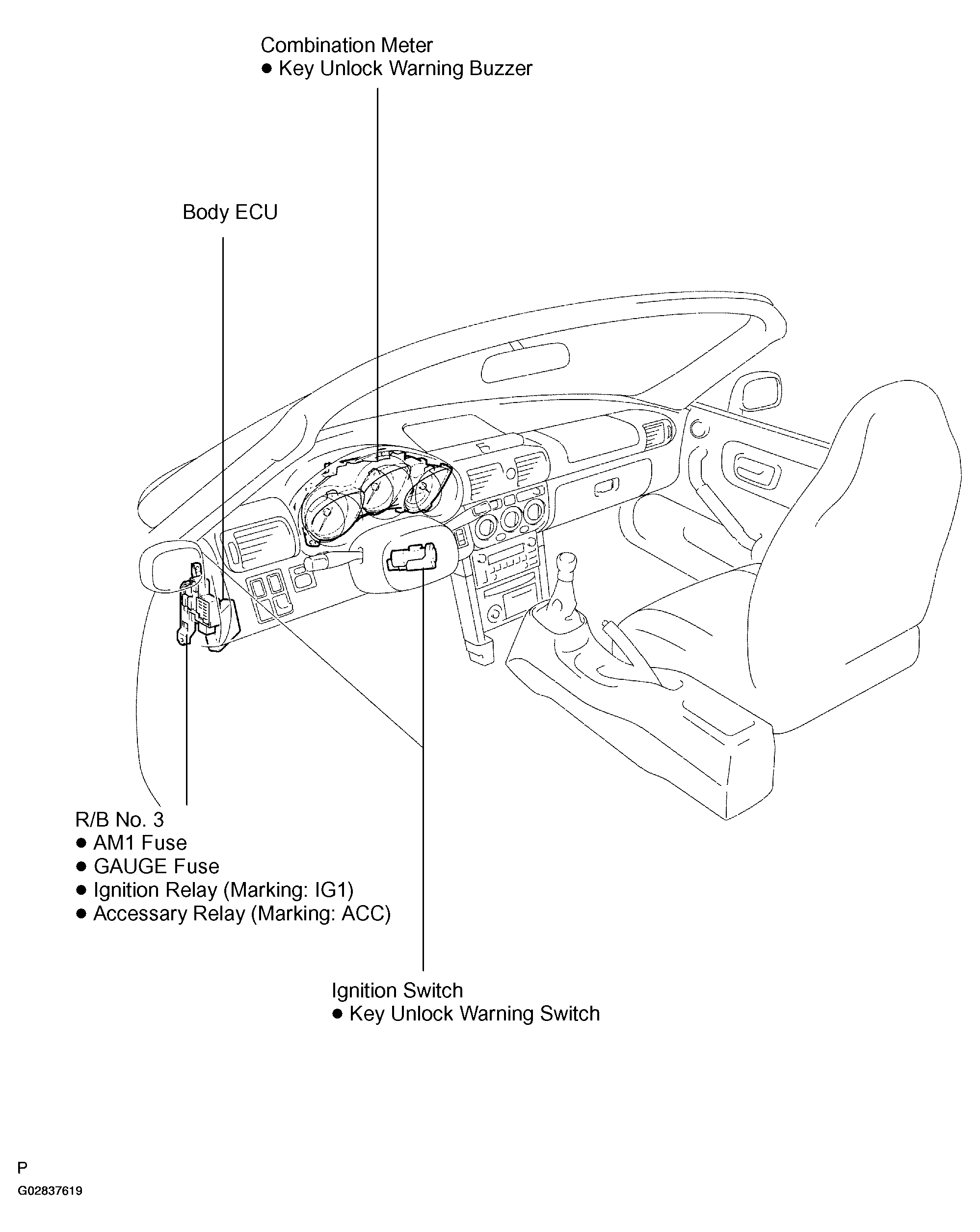

Fig 1: Locating Ignition Switch And Key Unlock Warning Switch Components
G02837619Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
