Circuit Description

For circuit description, see Fig 1.

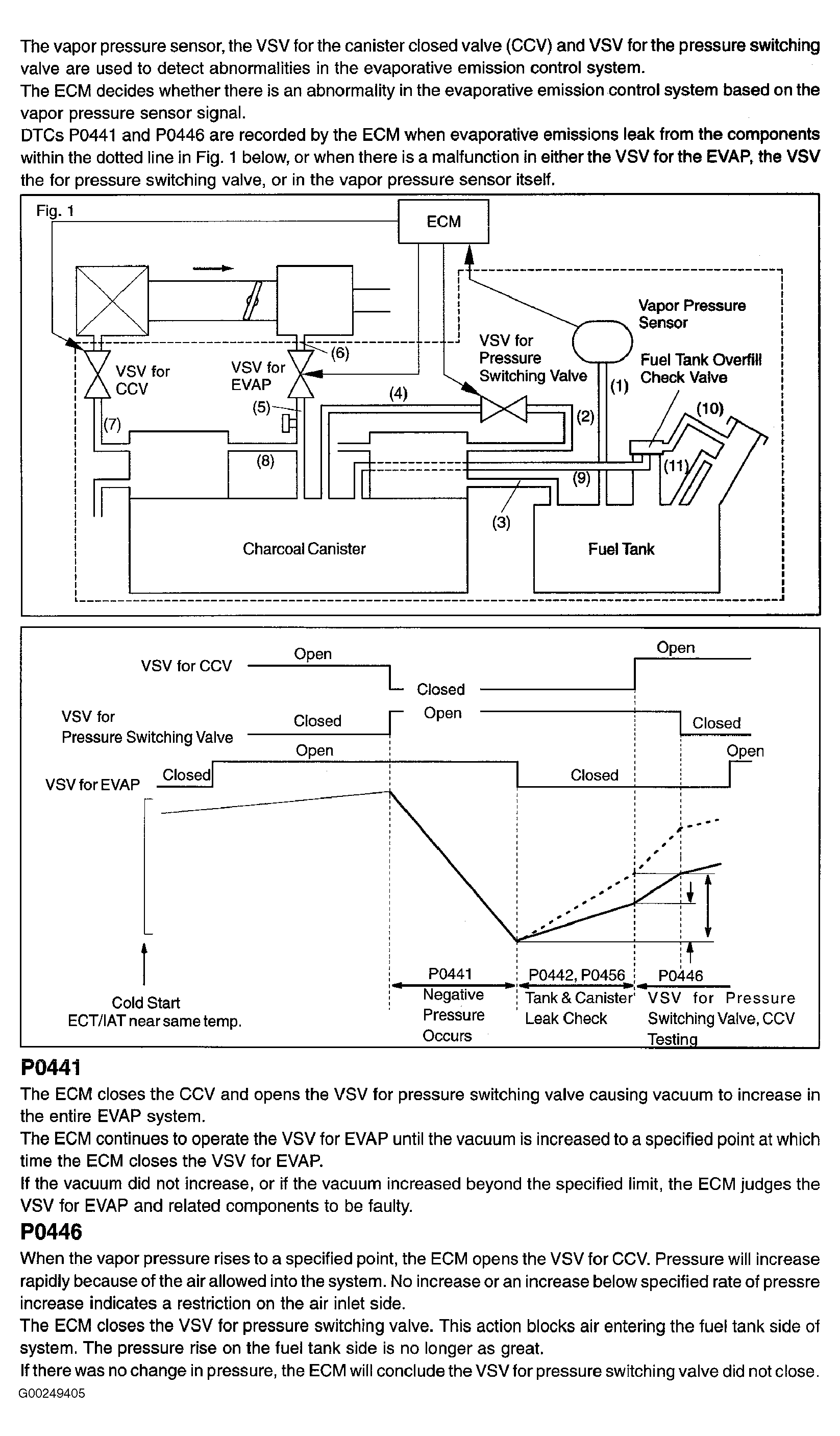

Fig 1: DTCs P0441 & P0446 Circuit Description
G00249405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
