EVAP Monitor & Drive Cycle Pattern

For EVAP monitor and drive cycle pattern, see Fig 1 and Fig 2 .

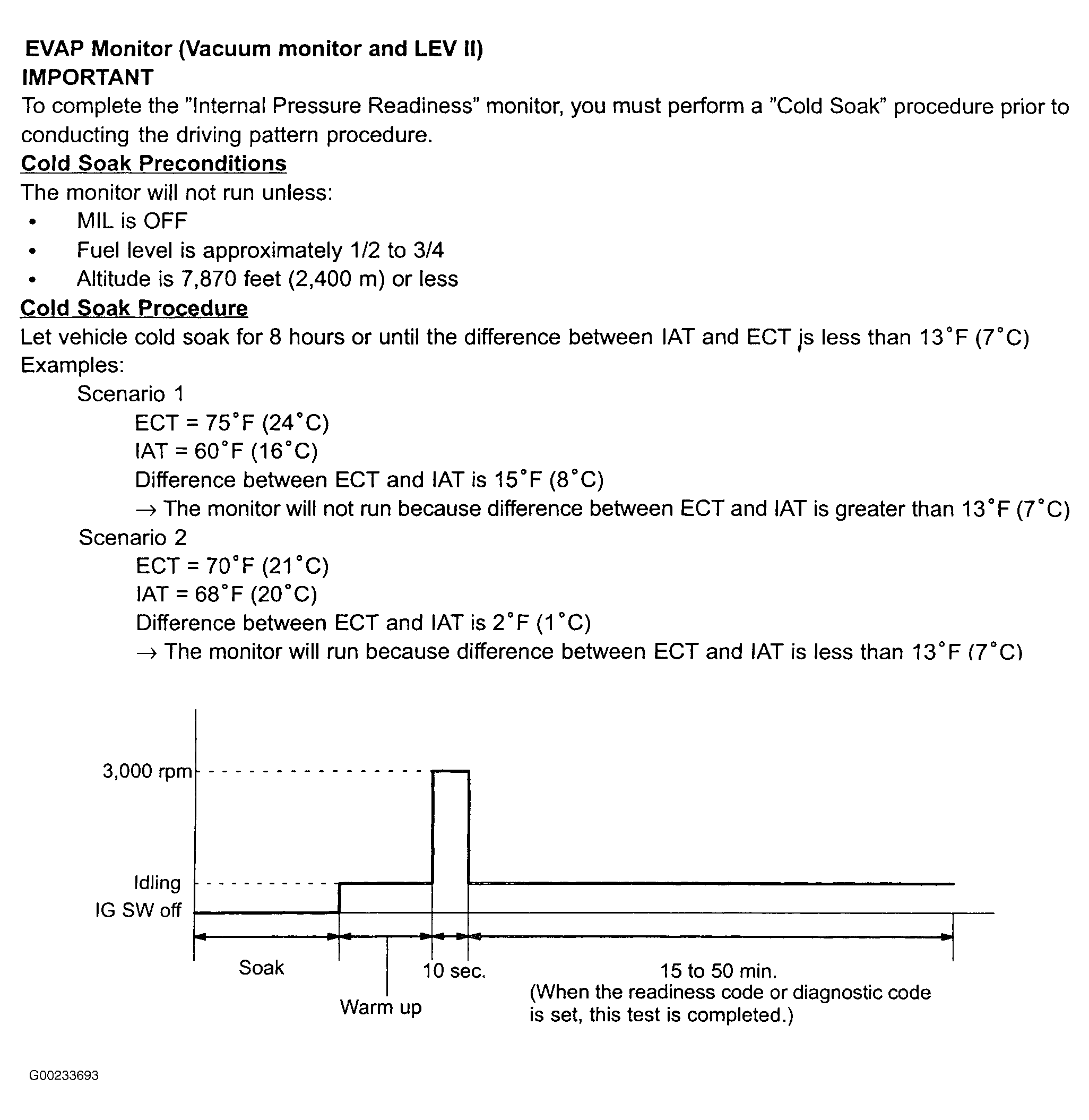

Fig 1: EVAP Monitor & Drive Cycle Pattern (1 Of 2)
G00233693Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

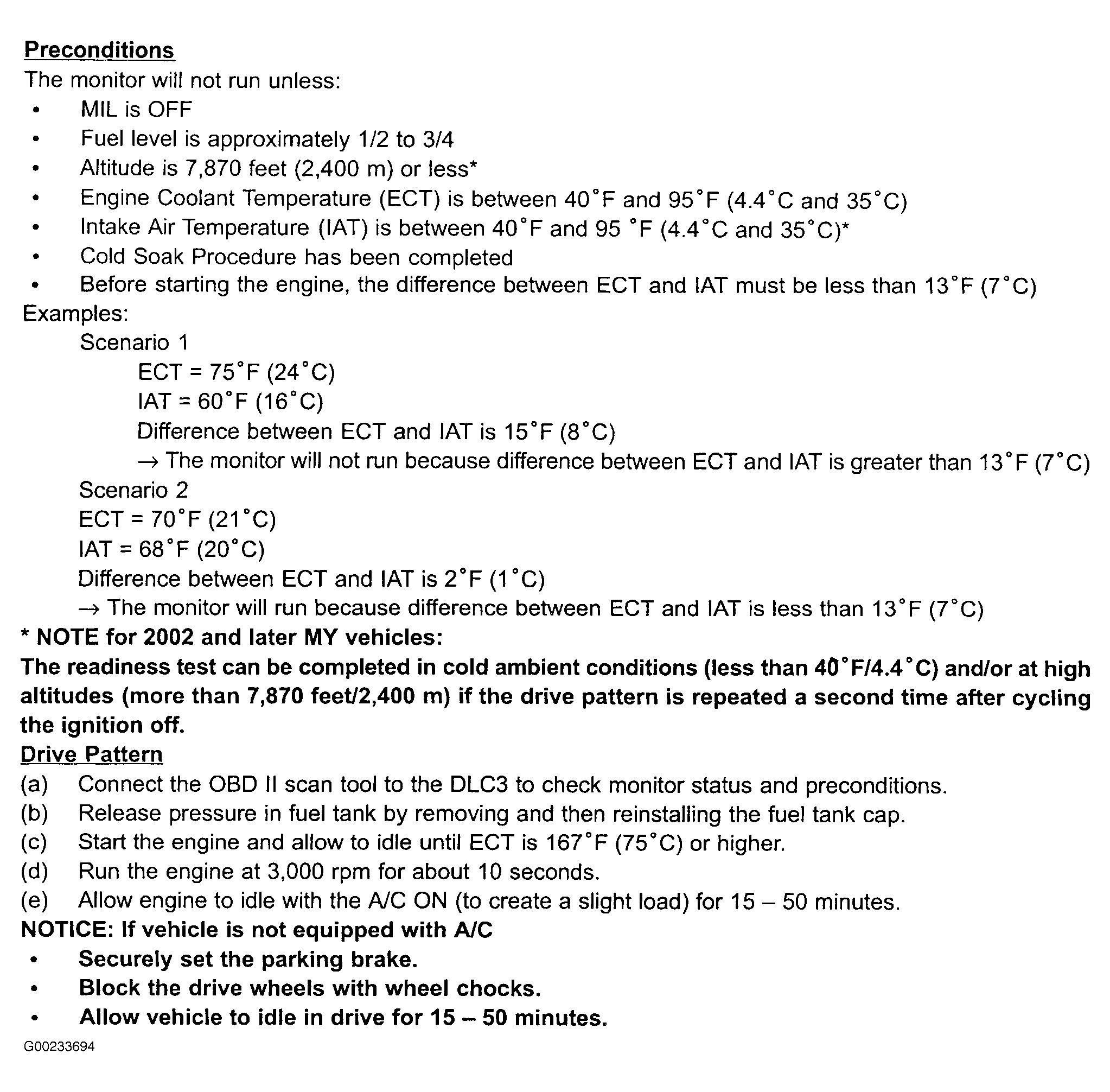

Fig 2: EVAP Monitor & Drive Cycle Pattern (2 Of 2)
G00233694Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
