Power Door Lock Control System: Location

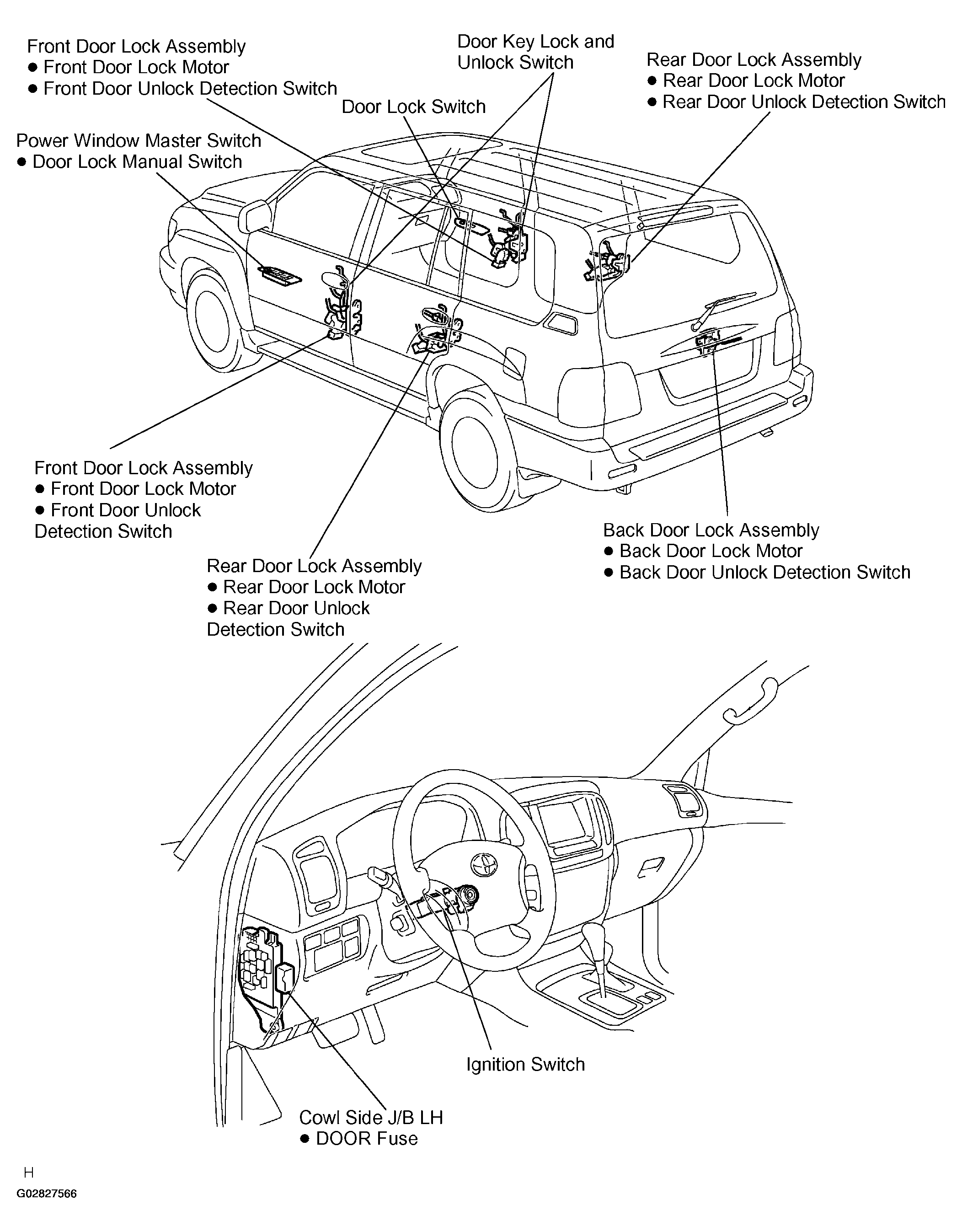

Fig 1: Identifying Power Door Lock Control System Components Location
G02827566Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
