Problem Symptoms Table

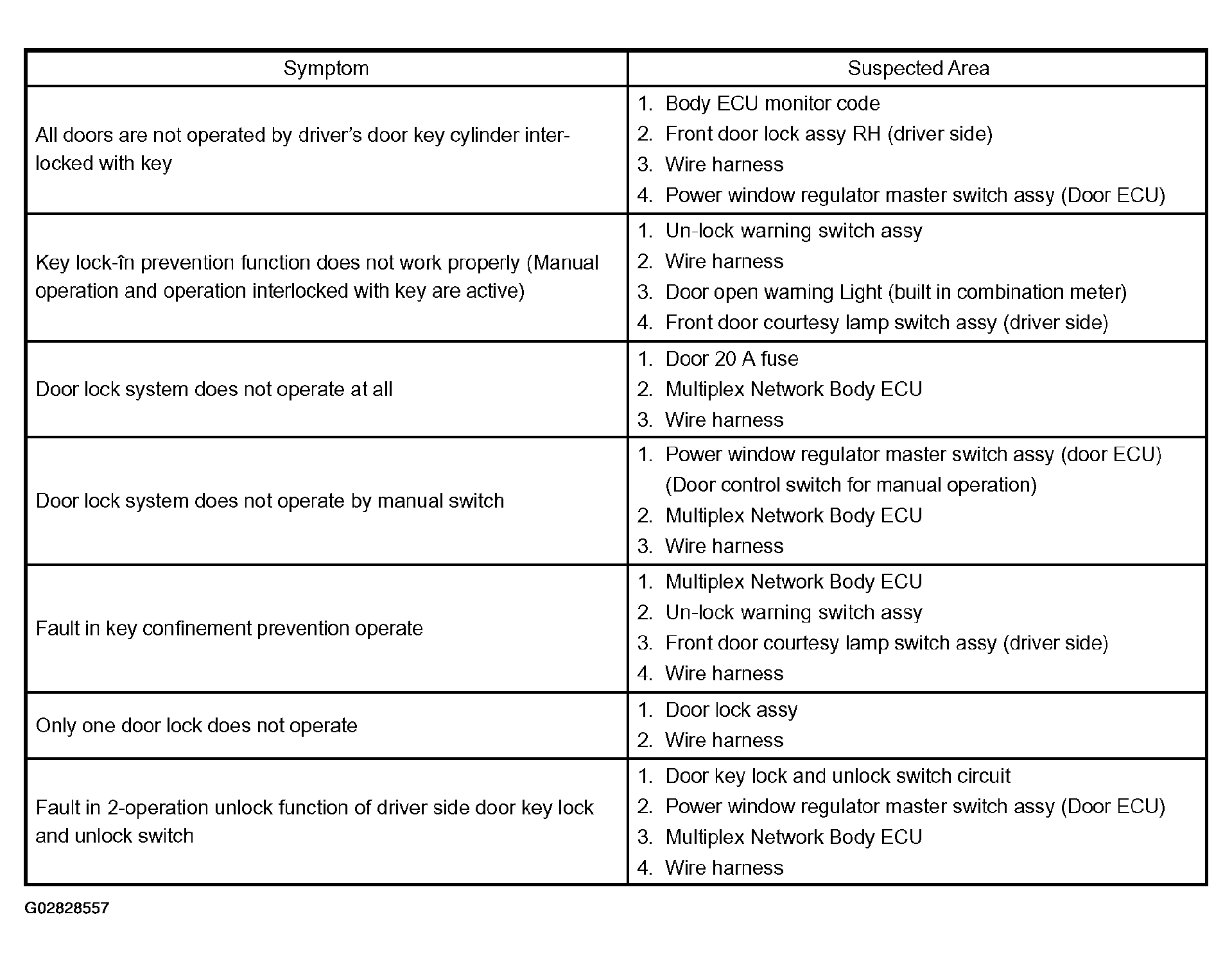

Fig 1: Power Door Lock Control System Problem Symptoms Table
G02828557Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
