Section 604 (Audio & Visual System): Components

WARNING: This page is about a different car, the 2004 Toyota Highlander. However, it is still accessible from the selected car via links, so may be relevant.

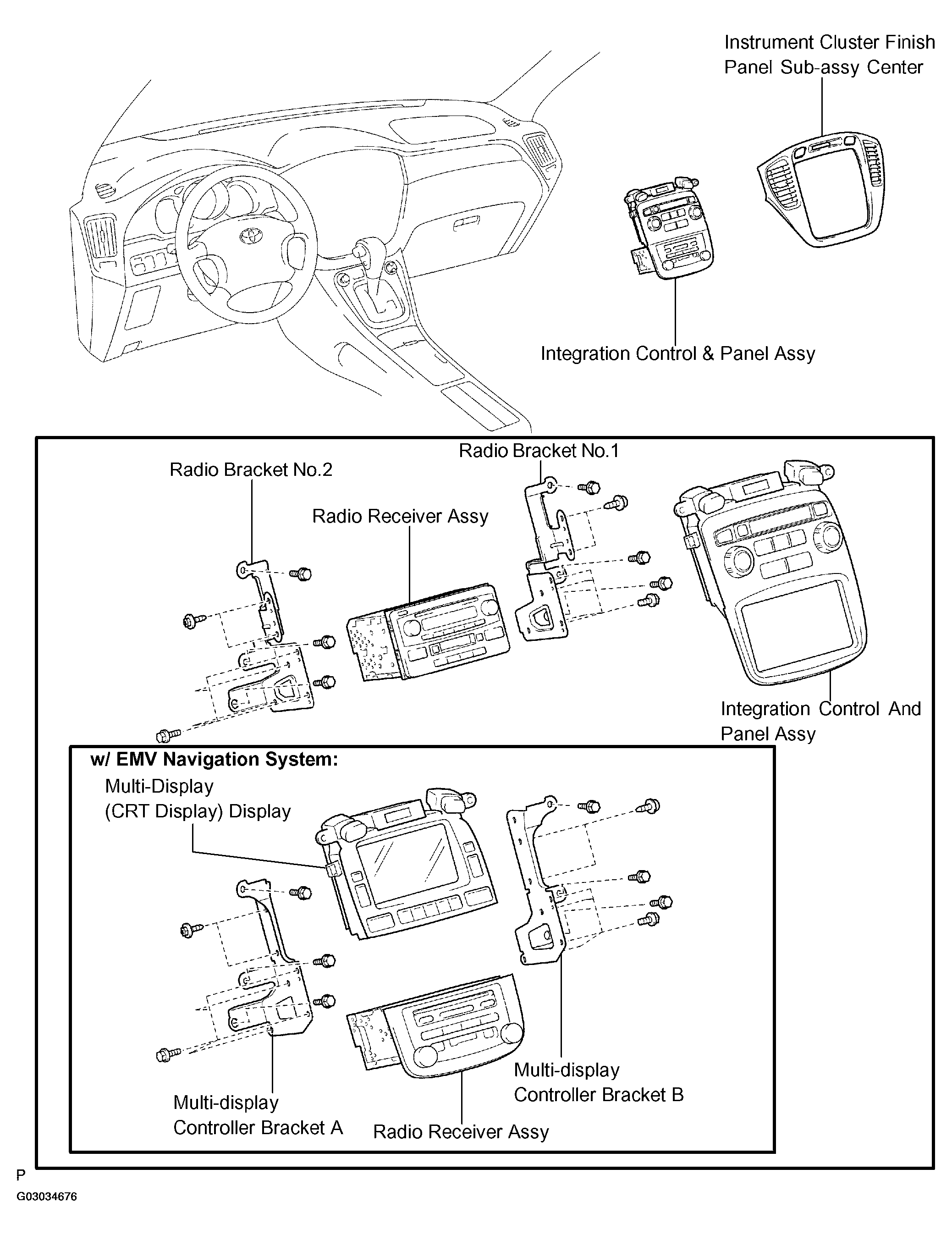

Fig 1: Identifying Audio And Visual System Components Location (1 Of 4)
G03034676Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

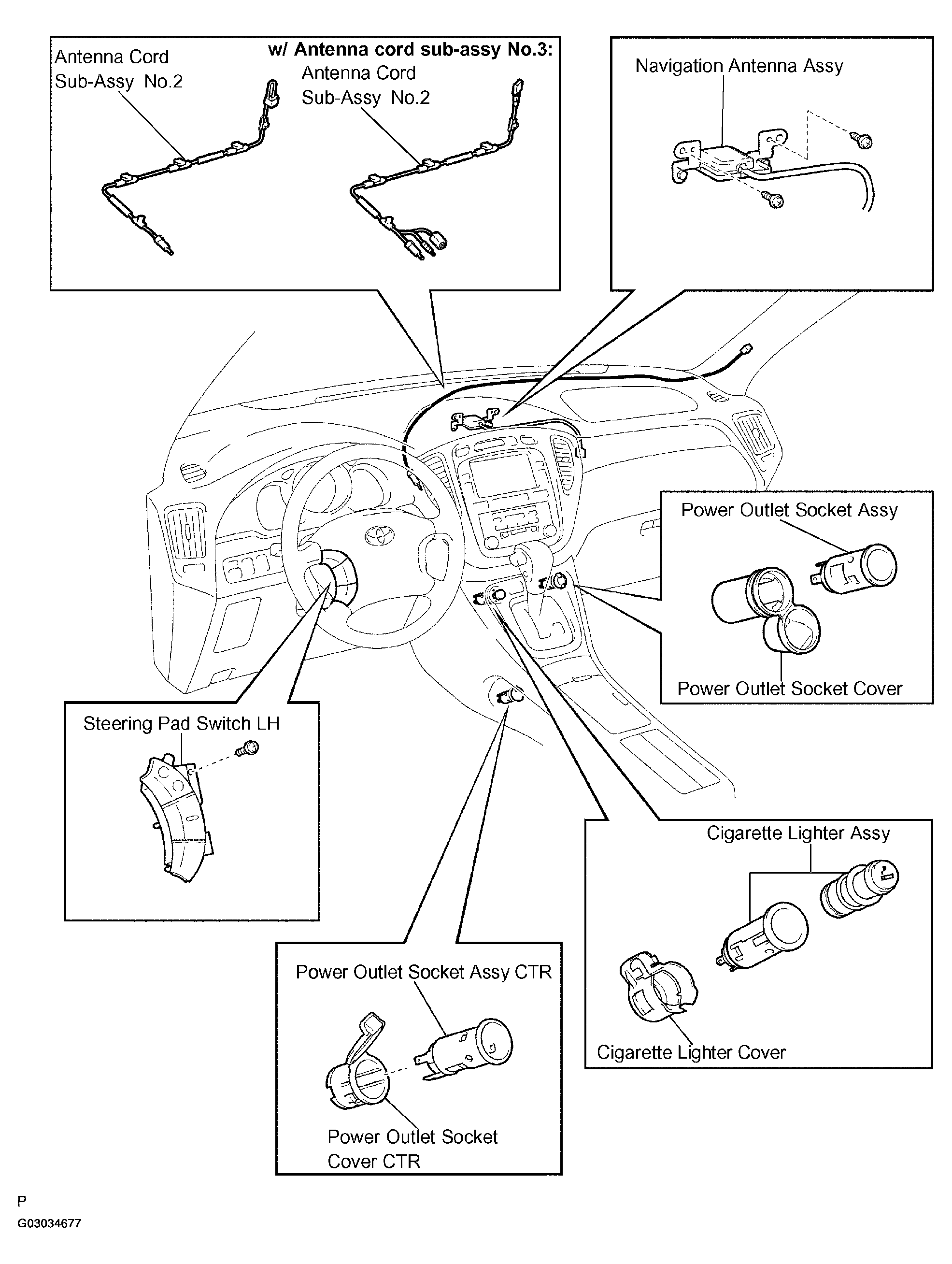

Fig 2: Identifying Audio And Visual System Components Location (2 Of 4)
G03034677Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

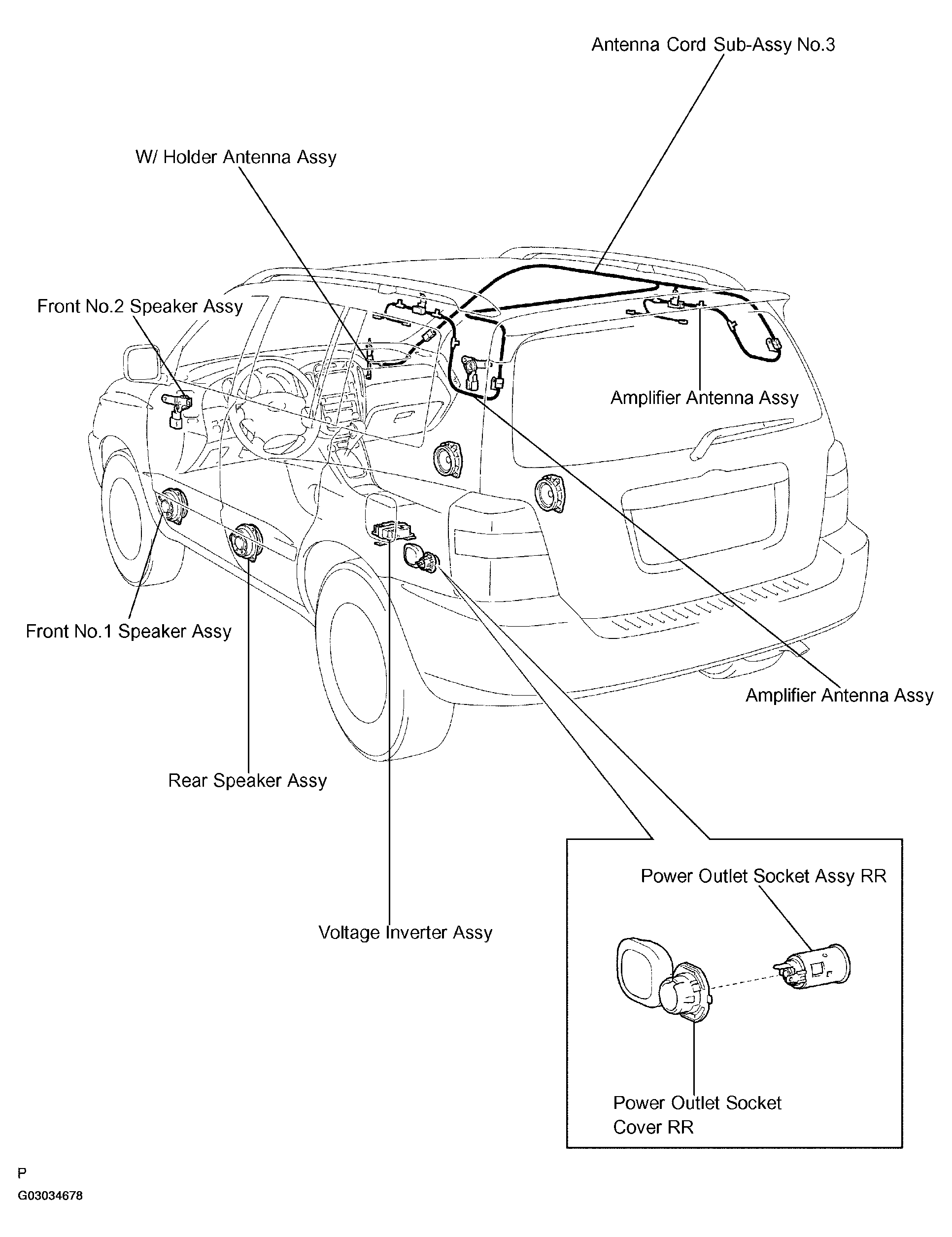

Fig 3: Identifying Audio And Visual System Components Location (3 Of 4)
G03034678Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

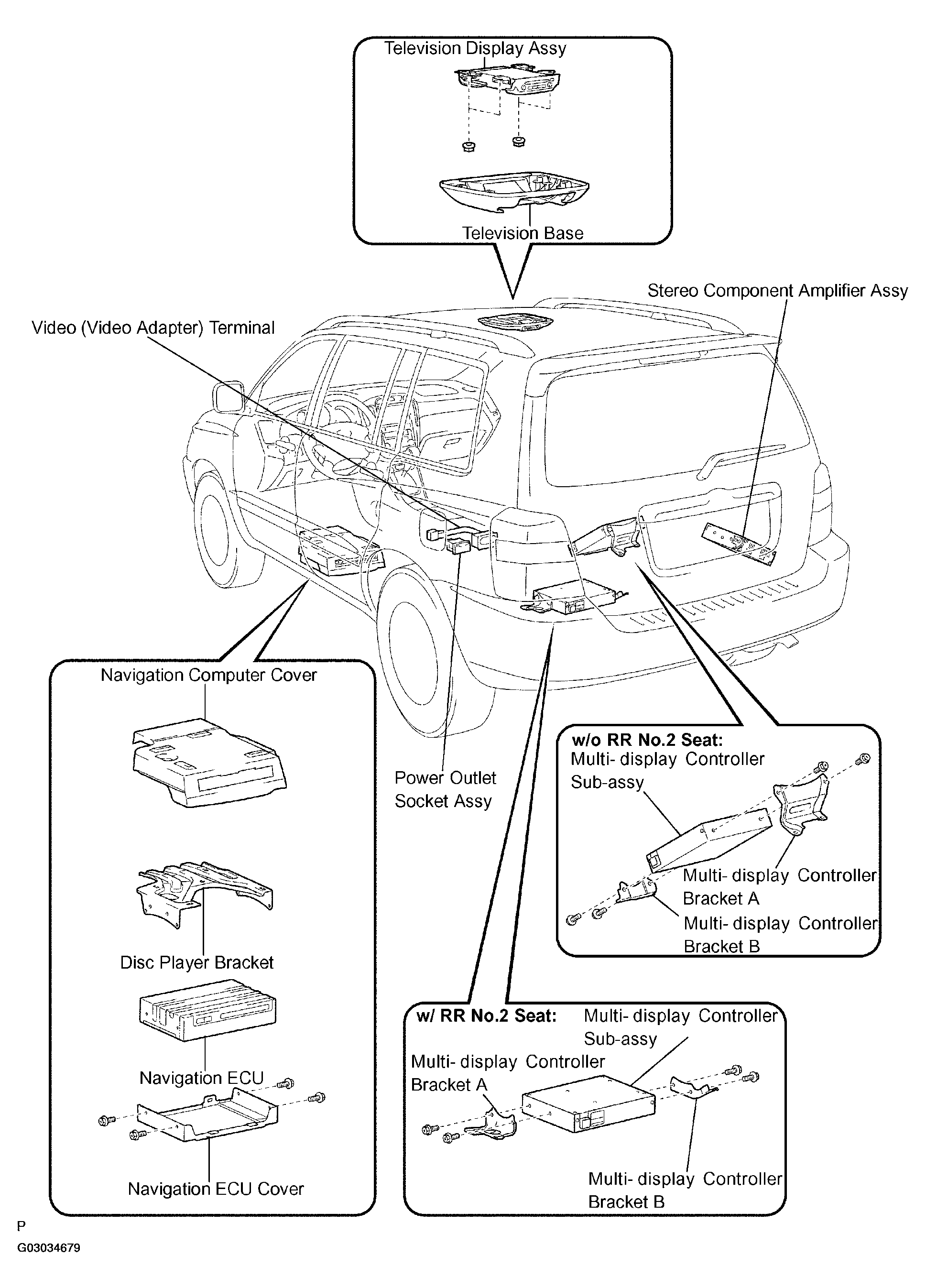

Fig 4: Identifying Audio And Visual System Components Location (4 Of 4)
G03034679Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
