Power Outlet Socket Assembly Ctr: Replacement

  1. REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSY CENTER (See step 18 under  REPLACEMENT  )
  2. REMOVE POWER OUTLET SOCKET ASSY CTR
    1. Disengage the meshing of the power outlet socket assy ctr and the power outlet socket cover by rotating the cigarette lighter assy.

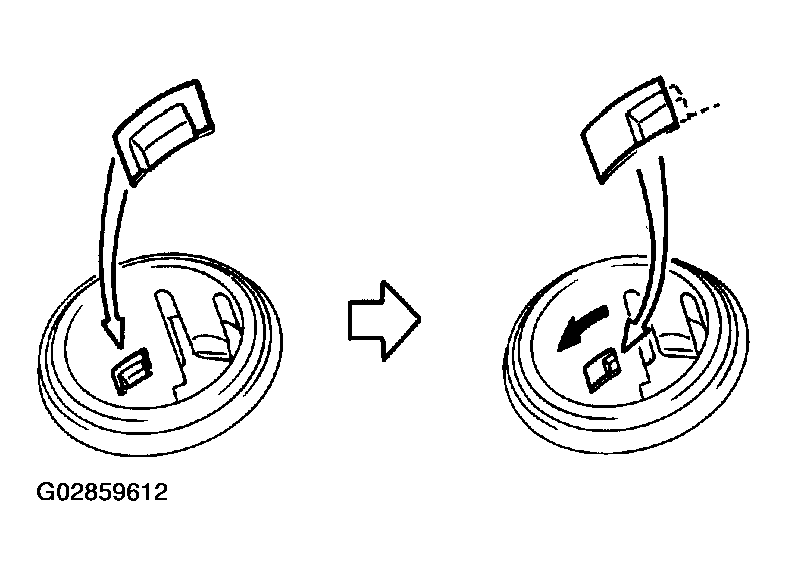

      2. Fig 1: Disengaging Power Outlet Socket Cover And Assy Ctr
      G02859612Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Pull out the power outlet socket assy ctr.
  3. INSTALL POWER OUTLET SOCKET ASSY CTR
    1. Aligning the socket with the cutout of the power outlet socket cover, fully push it to install.
