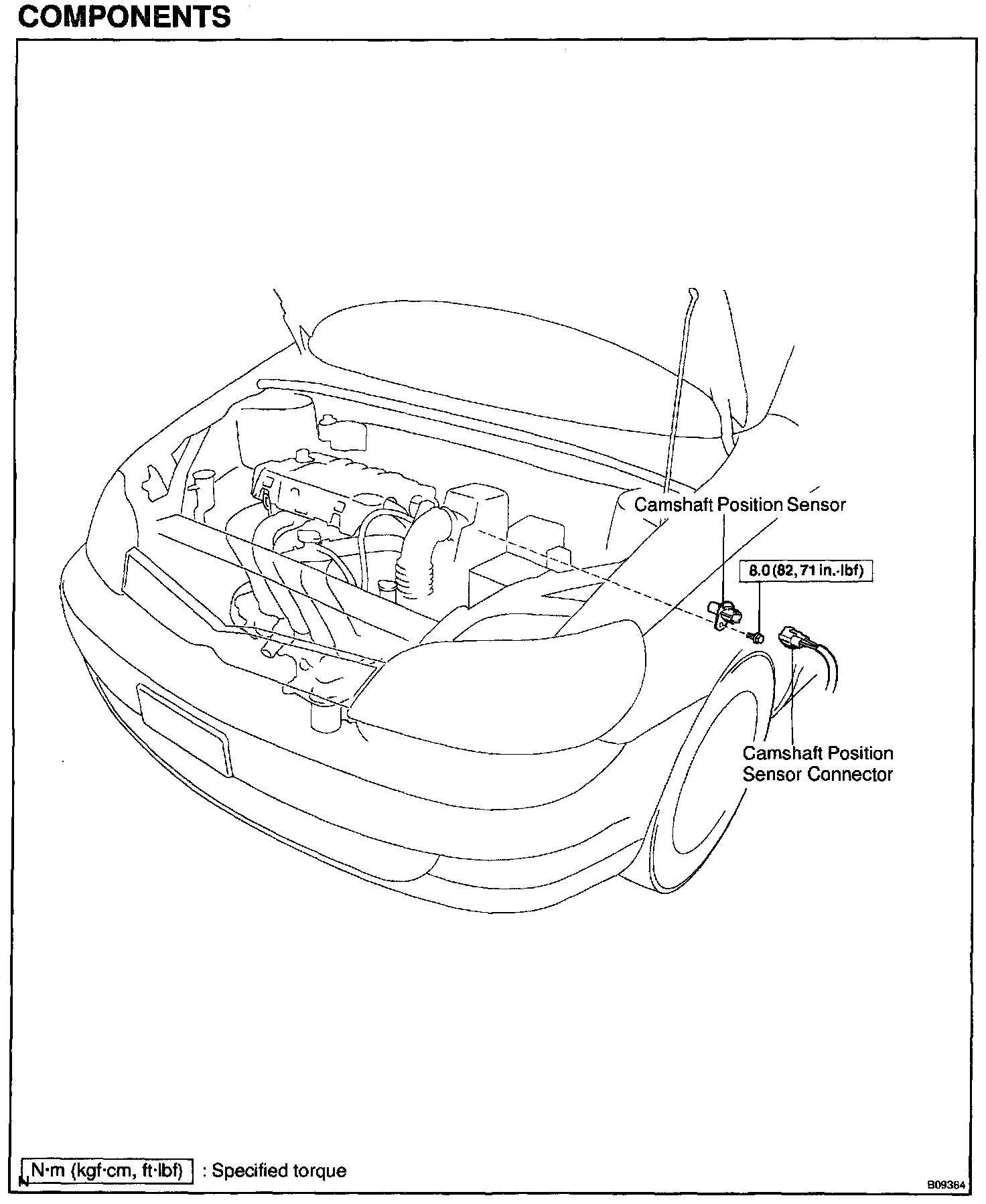

Camshaft Position Sensor: Service and Repair

Camshaft Position Sensor:

REMOVAL

REMOVE CAMSHAFT POSITION SENSOR

a. Disconnect the connector.
b. Remove the bolt and camshaft position sensor.

Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)

INSTALLATION
Installation is in the reverse order of removal.
