Seat Belt: Components

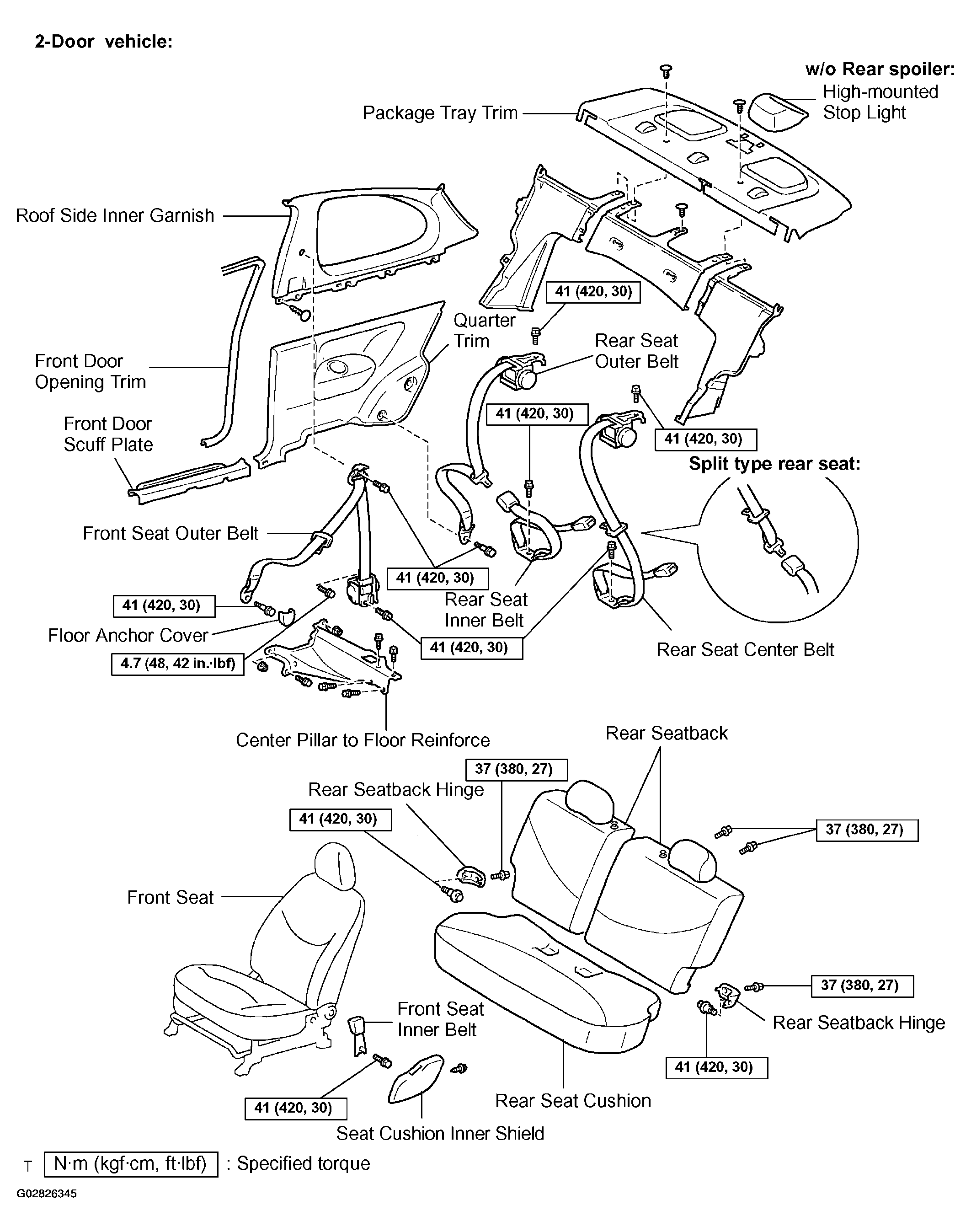

Fig 1: Seat Belt Components (2 Door Vehicle)
G02826345Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

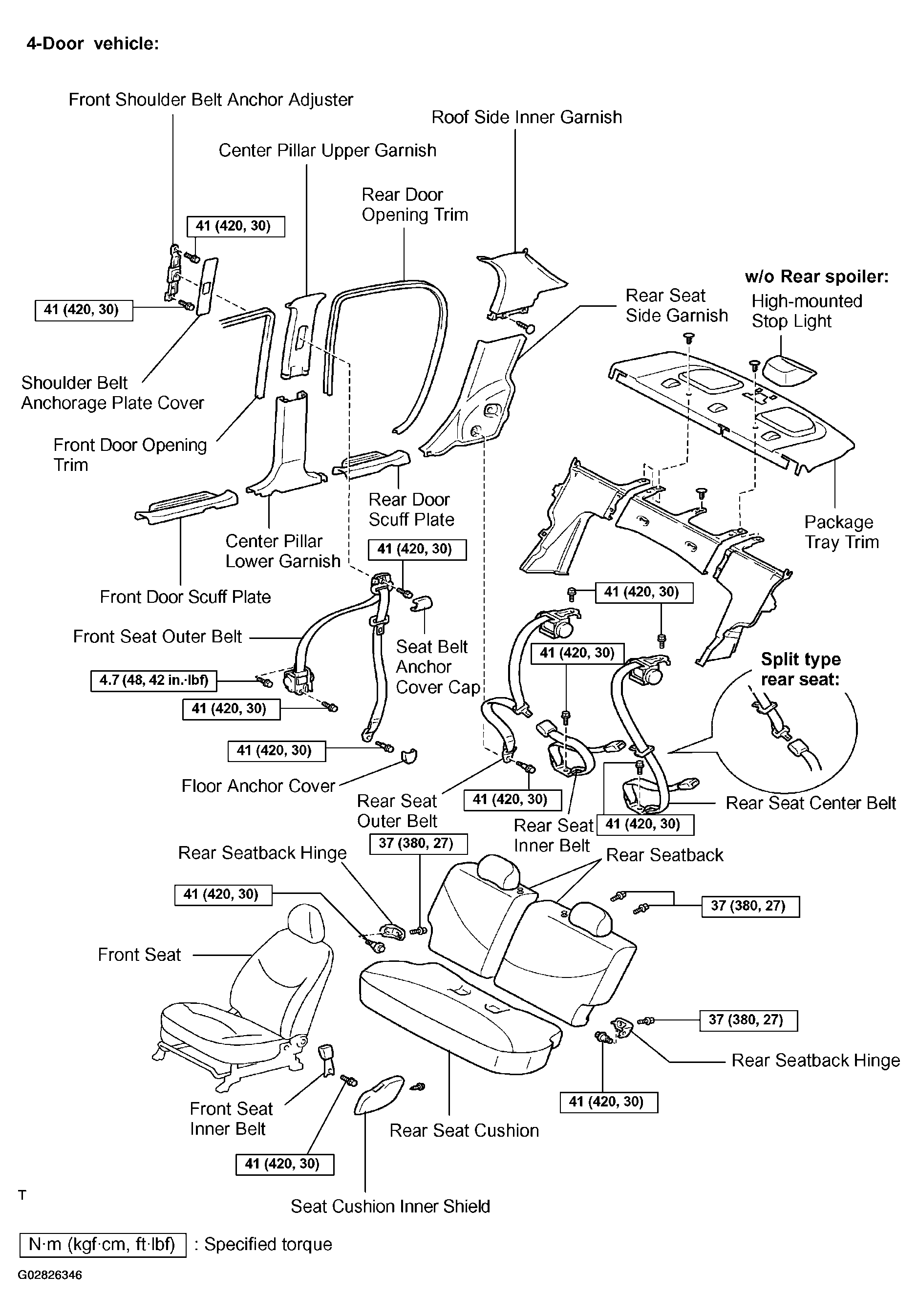

Fig 2: Seat Belt Components (4 Door Vehicle)
G02826346Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
