O/D Main Switch Circuit: Wiring Diagram

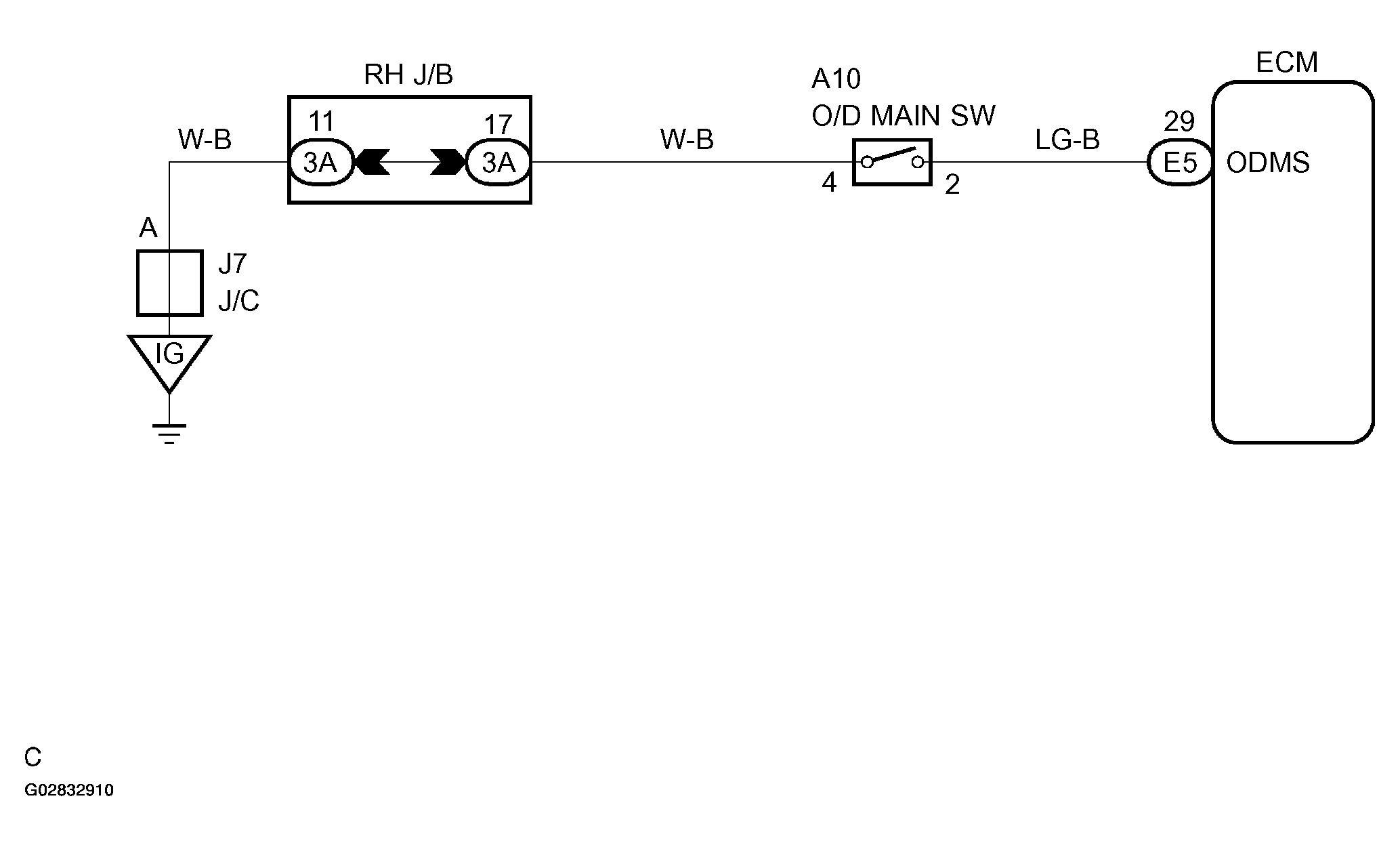

Fig 1: O/D Main Switch Circuit Diagram
G02832910Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
