Engine Mechanical Cylinder Block Assembly: Components

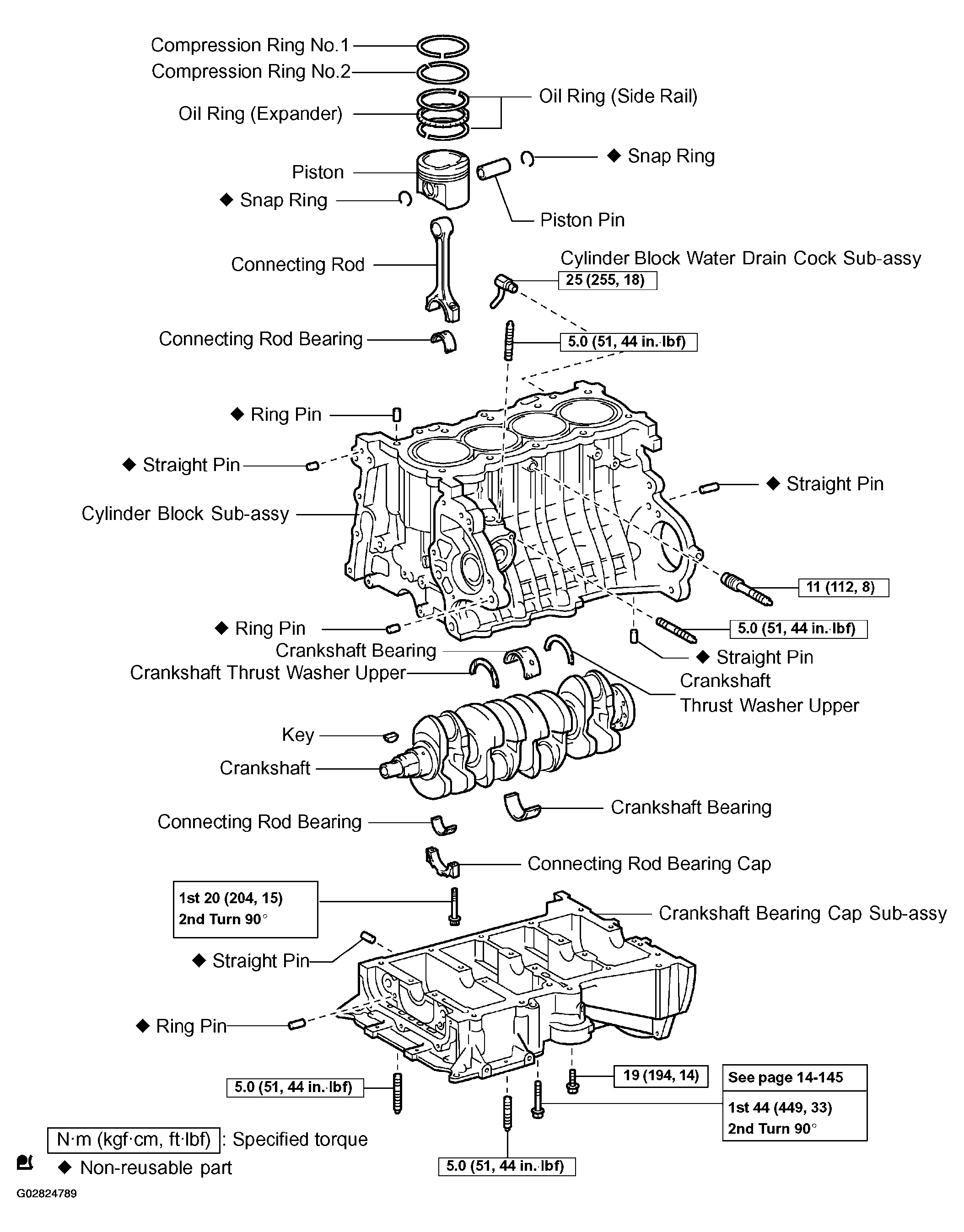

Fig 1: Exploded View Of Cylinder Block Components
G02824789Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
