Body & Frame: Seats: Seat: Components

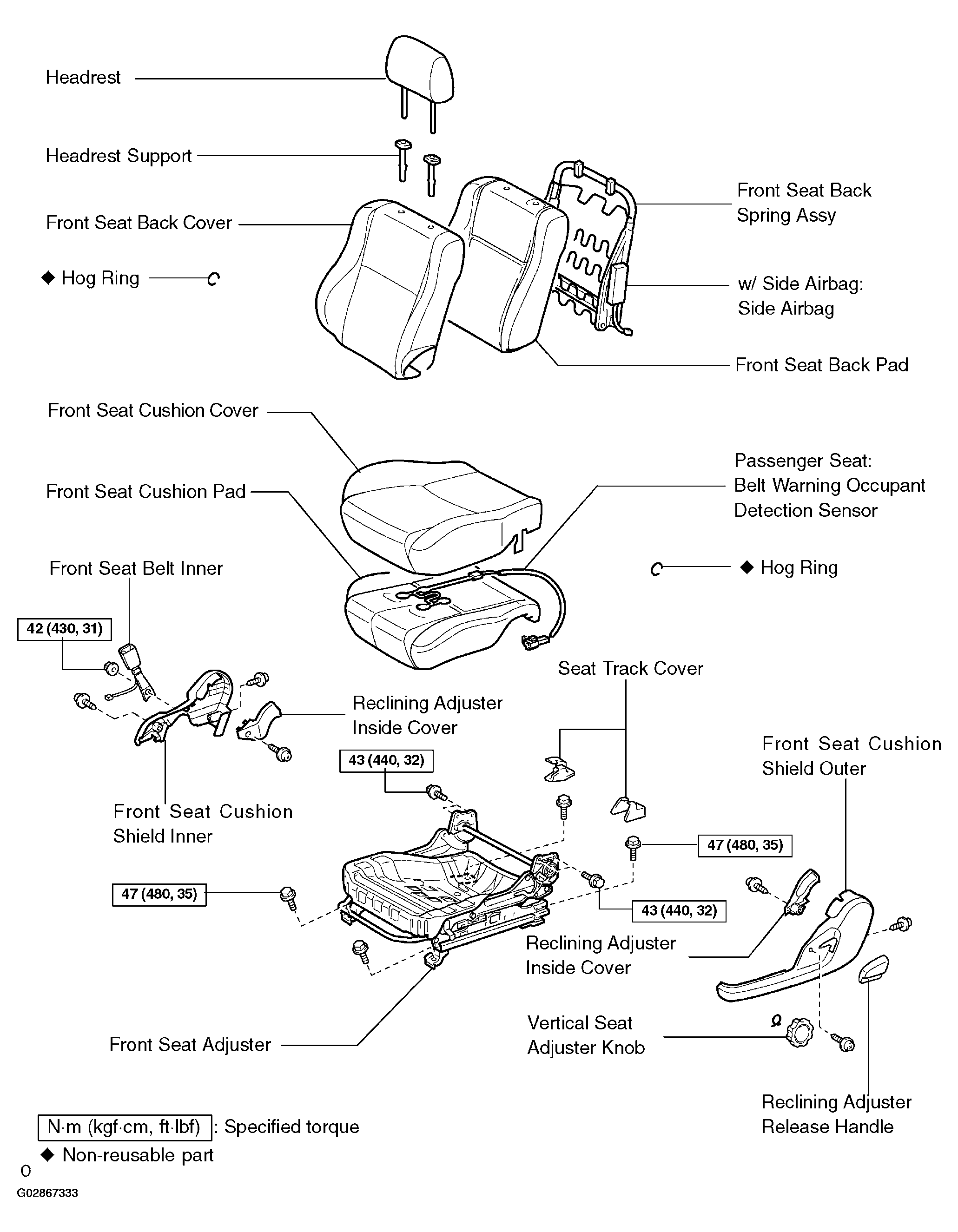

Fig 1: Front Seat Replacement Components With Torque Specifications
G02867333Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
