Vehicle Intrusion Protection System - Diagnostics: Location

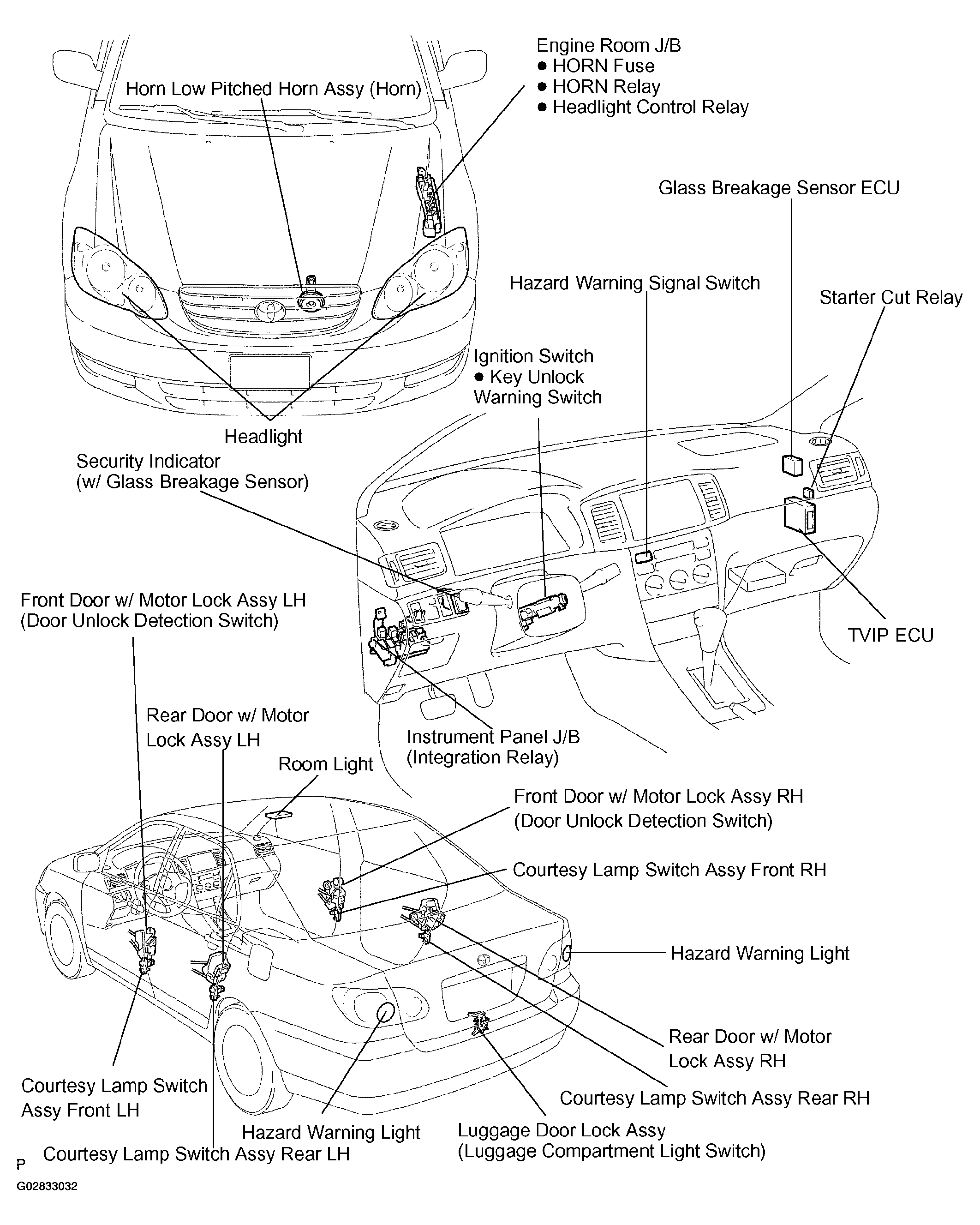

Fig 1: Identifying Electrical Components Location In Vehicle Intrusion Protection System
G02833032Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
