Radio Receiver Assembly: Replacement

HINT:

COMPONENTS: (See COMPONENTS )

1. REMOVE FLOOR SHIFT SHIFT LEVER KNOB SUB-ASSY (M/T TRANSAXLE) (See  INSTRUMENT PANEL/METER  )
2. REMOVE CONSOLE PANEL UPPER (See  INSTRUMENT PANEL/METER  )
3. REMOVE HEATER CONTROL KNOB (See  INSTRUMENT PANEL/METER  )
4. REMOVE INSTRUMENT CLUSTER FINISH PANEL (See  INSTRUMENT PANEL/METER  )

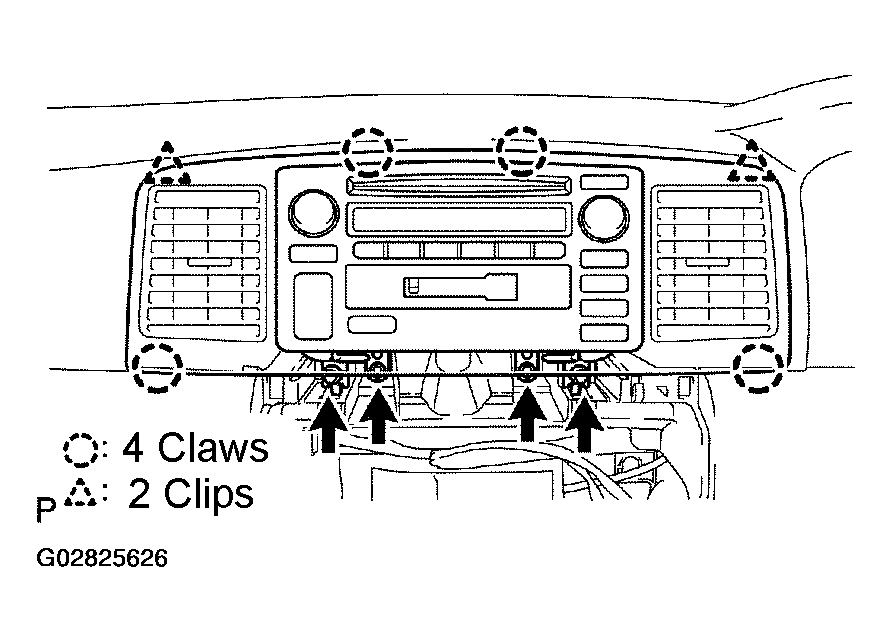

   Fig 1: Removing Instrument Cluster Finish Panel Sub-Assembly Center

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY CENTER
   1. Remove the 4 screws.
   2. Using a screwdriver, disengage the 2 clips and 4 claws, then remove the instrument cluster finish panel sub-assembly center with radio receiver assembly.

      HINT:

      Tape the screwdriver tip before use.

   3. Disconnect the connectors.
6. REMOVE RADIO RECEIVER ASSY
   1. Disengage the 4 claws and 6 pins.
   2. Remove the radio receiver assembly from the instrument cluster finish panel sub-assembly center.

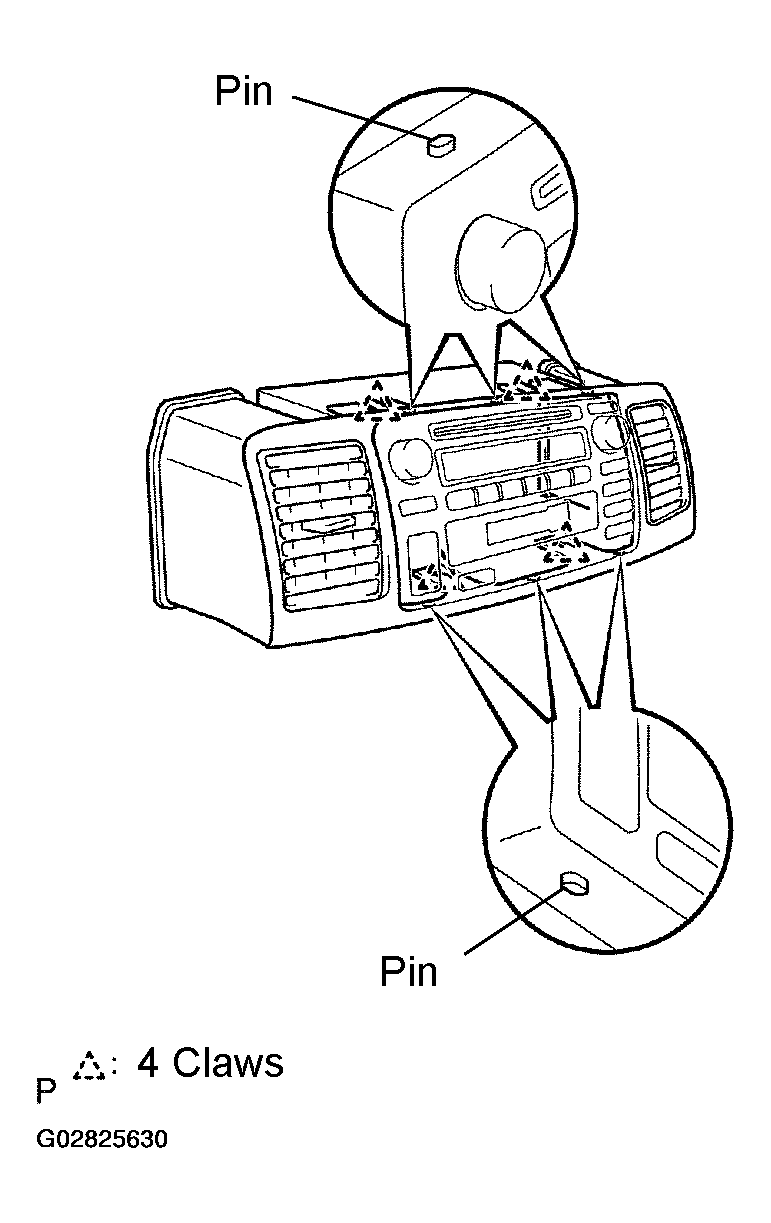

   Fig 2: Removing Radio Receiver Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. REMOVE RADIO BRACKET NO. 1
   1. Remove the 4 screws and radio bracket No. 1.
   Fig 3: Removing Radio Bracket No. 1

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
8. REMOVE RADIO BRACKET NO. 2
   1. Remove the 4 screws and radio bracket No. 2.
   Fig 4: Removing Radio Bracket No. 2

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
9. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY CENTER
   1. Place the radio receiver assembly temporarily on the instrument panel sub-assembly upper. (*1)
   2. Under the condition of (*1), engage the 6 pins and 4 claws of the radio receiver assembly with the instrument cluster finish panel sub-assembly center. (*2)
   3. Under the condition of (*2), slide the instrument cluster finish panel sub-assembly center and the radio receiver assembly forward of the vehicle.
      Fig 5: Installing Instrument Cluster Finish Panel Sub-Assembly Center

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   4. Connect the connectors and install the 2 clips and 4 claws.
   5. Install the 4 screws and instrument cluster finish panel sub-assembly center with radio receiver assembly.
   Fig 6: Installing The Instrument Cluster Finish Panel Sub-Assembly Center With Radio Receiver Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
