Traction Control Module: Testing and Inspection

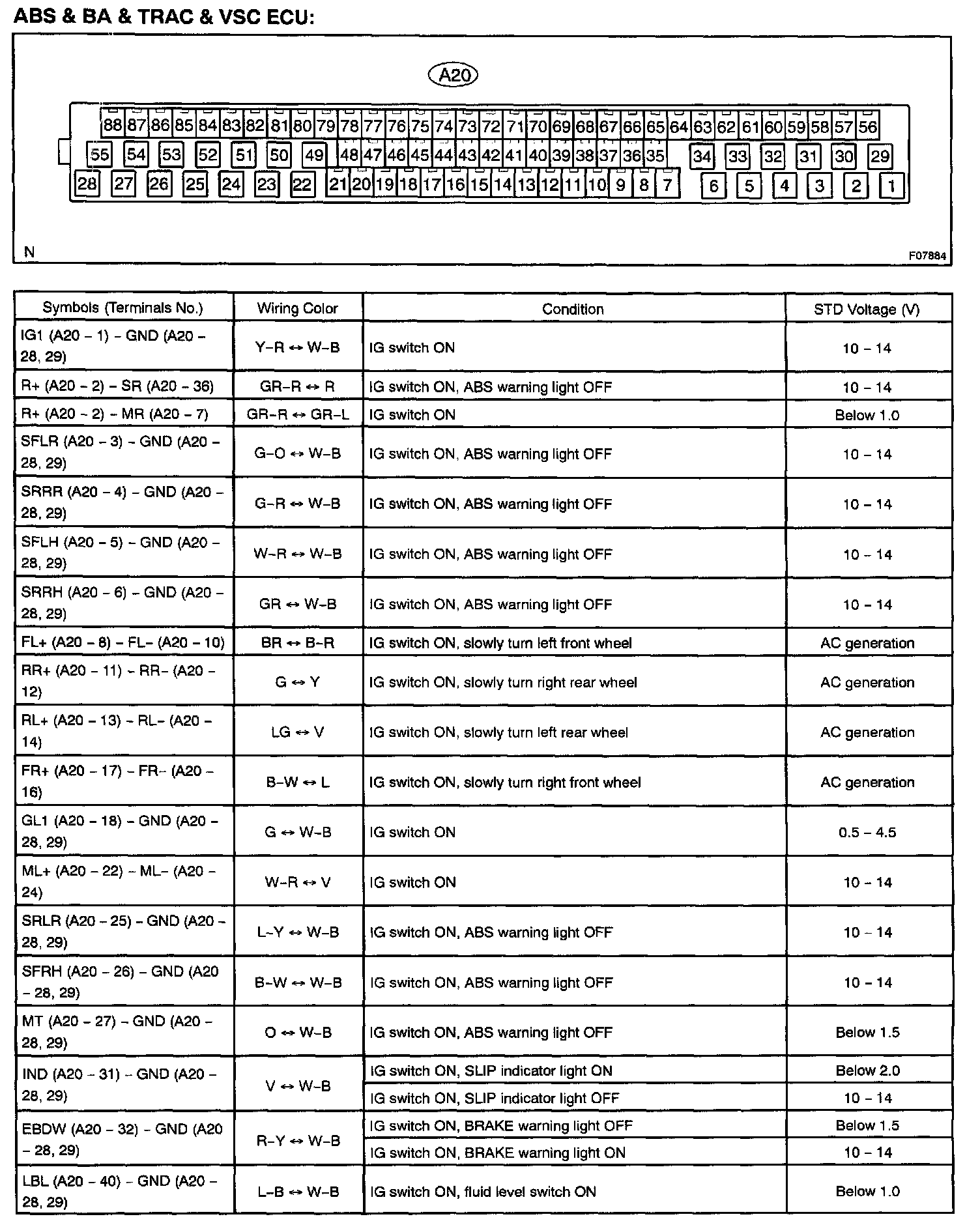

Terminals Of ECU/Pinouts - ABS & BA & TRAC & VSC ECU (Part 1):

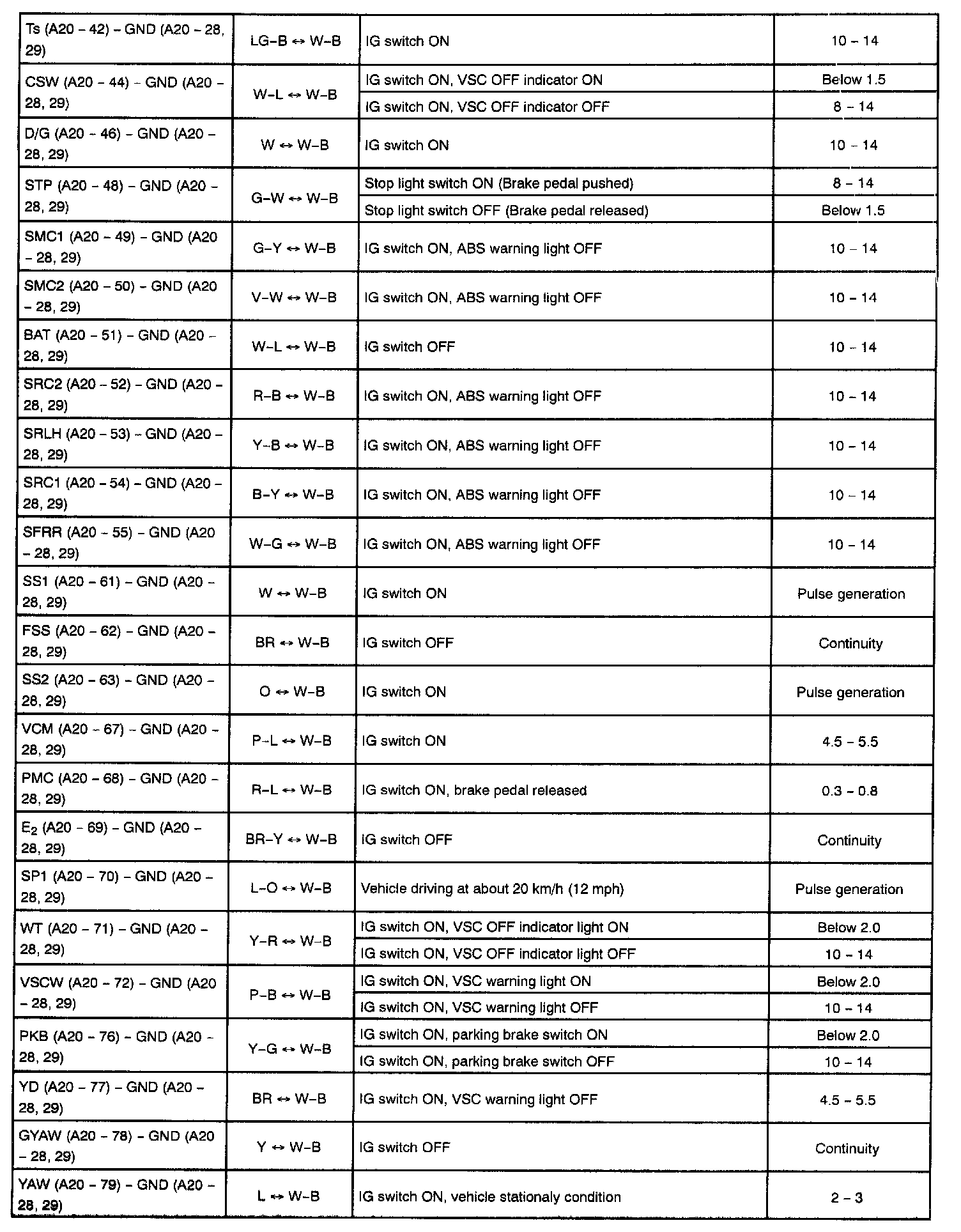

Terminals Of ECU/Pinouts - ABS & BA & TRAC & VSC ECU (Part 2):



Terminals Of ECU/Pinouts - ABS & BA & TRAC & VSC ECU (Part 3):

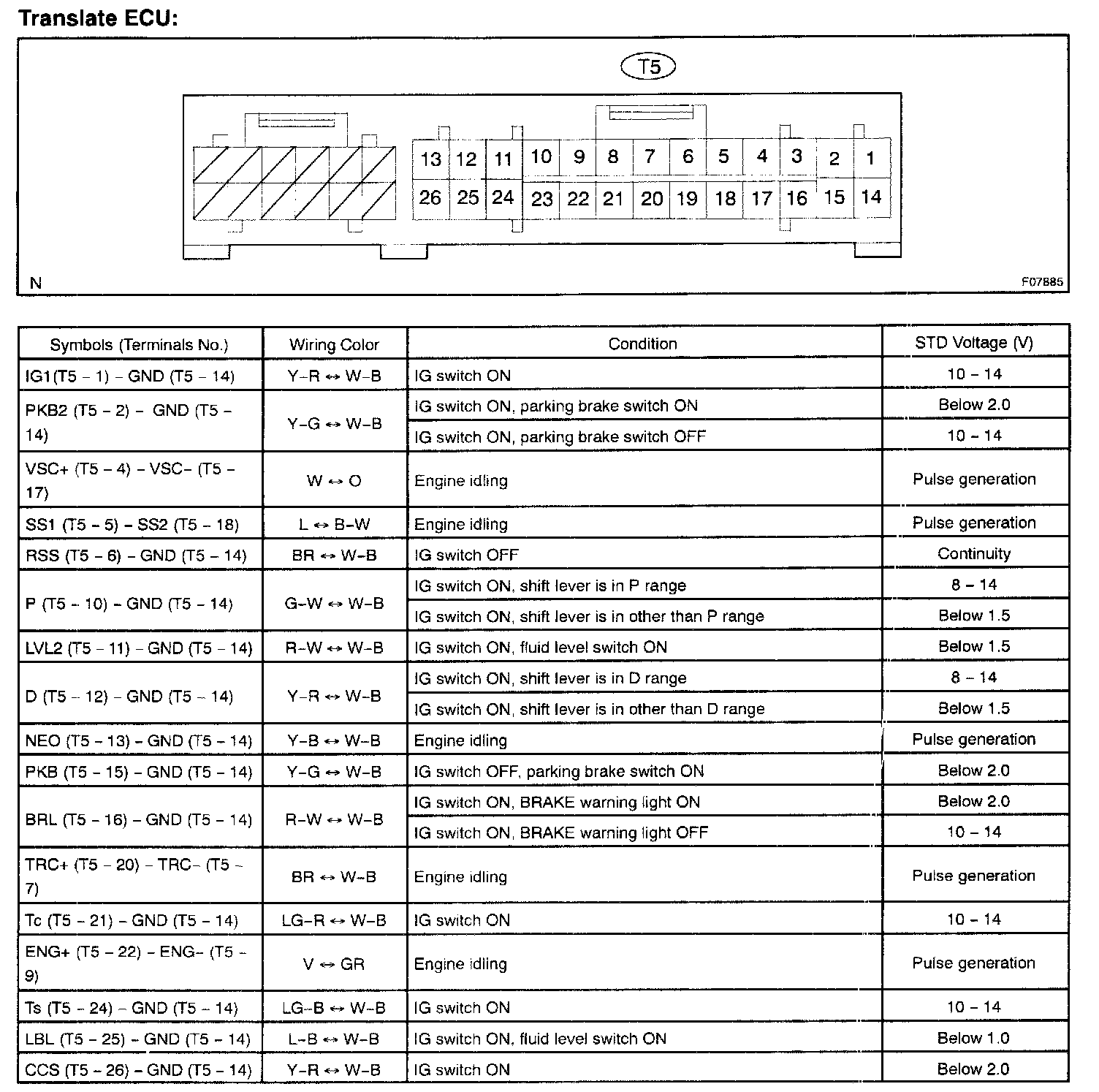

Terminals Of ECU/Pinouts - Translate ECU:
