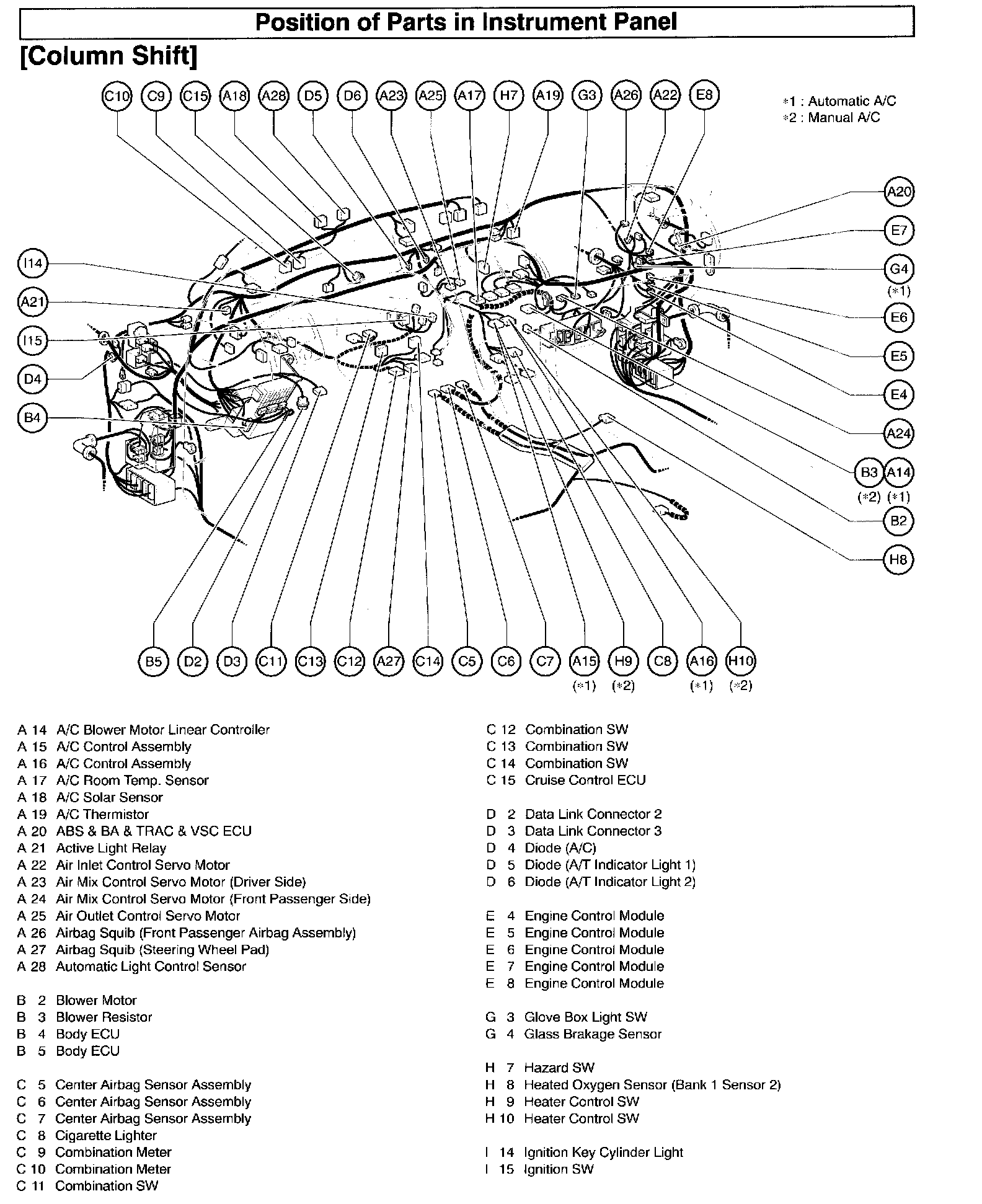

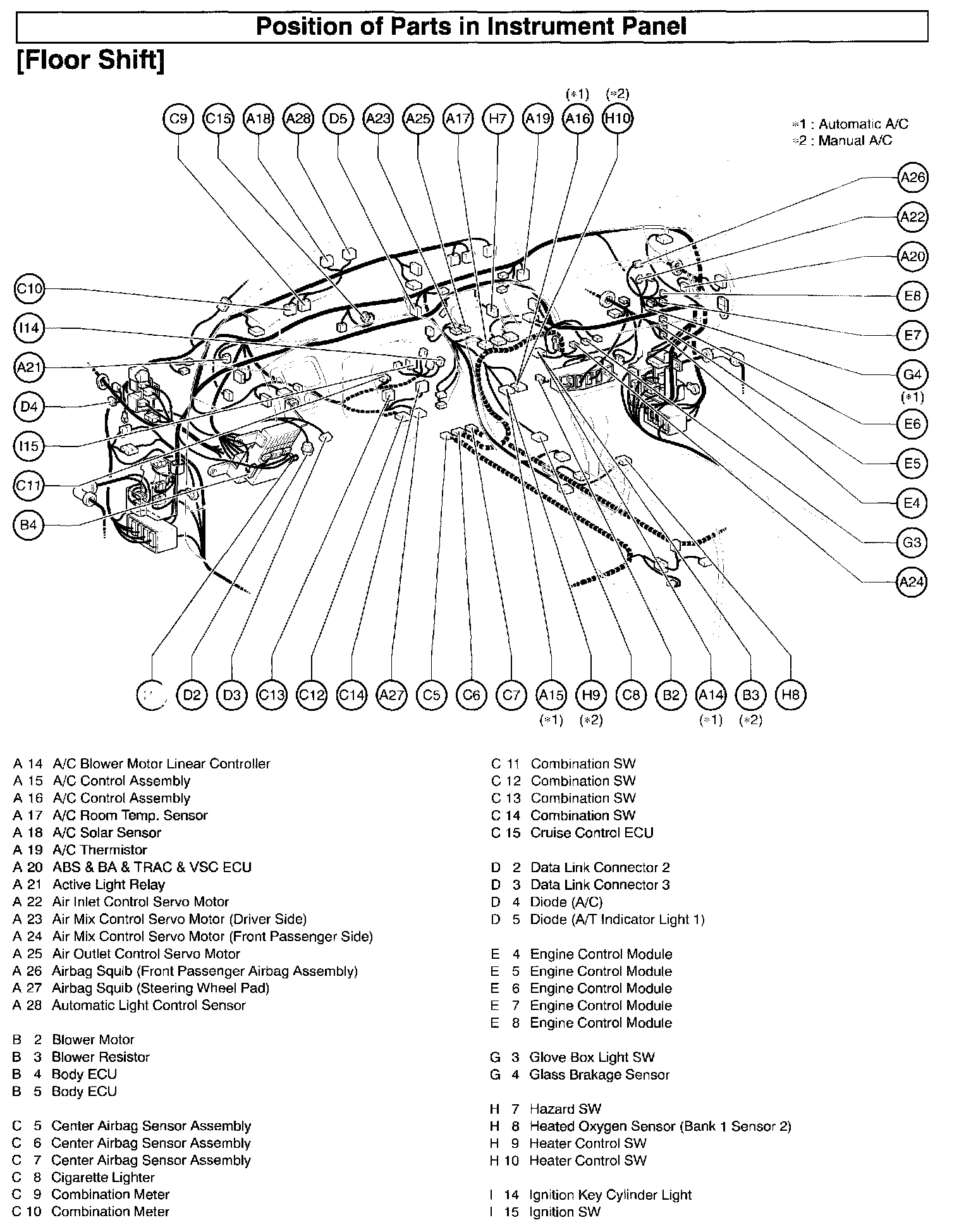

Data Link Connector: Locations
A/C - Ig:
A/C - Ig:

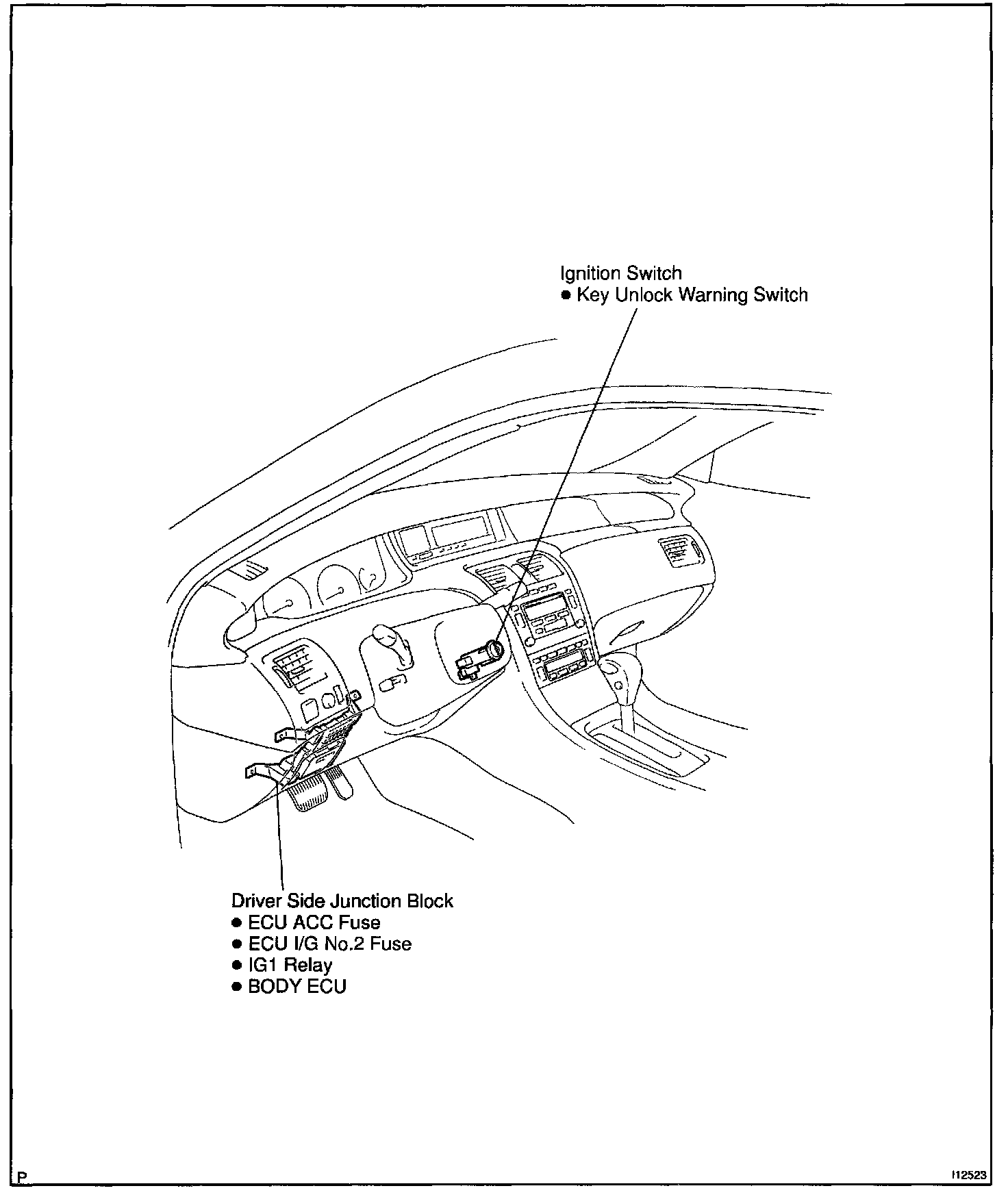

Ignition Switch And Key Unlock Warning Switch:

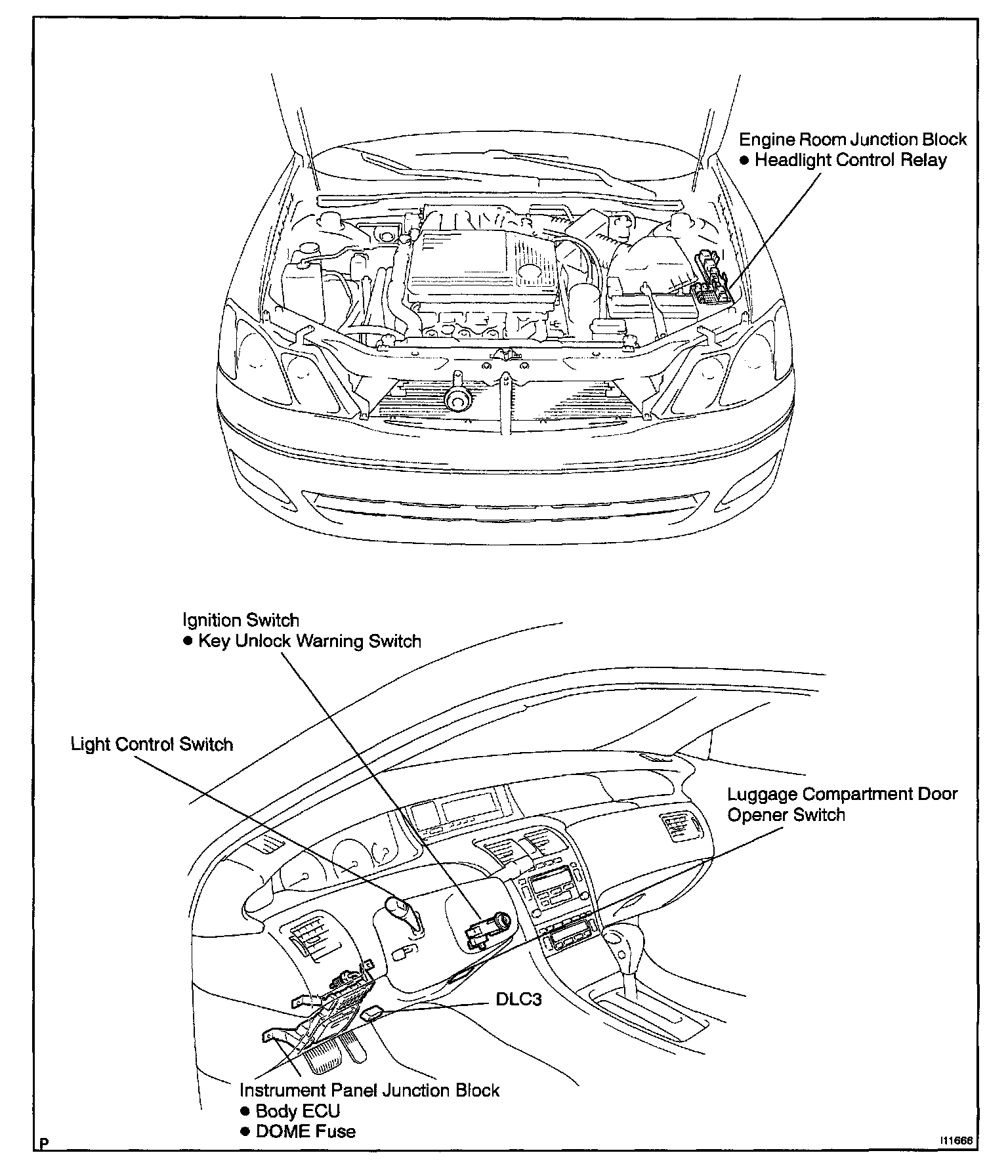

Body Control System:
