Steering Column

Part 1 Of 3:




Part 2 Of 3:




Part 3 Of 3:

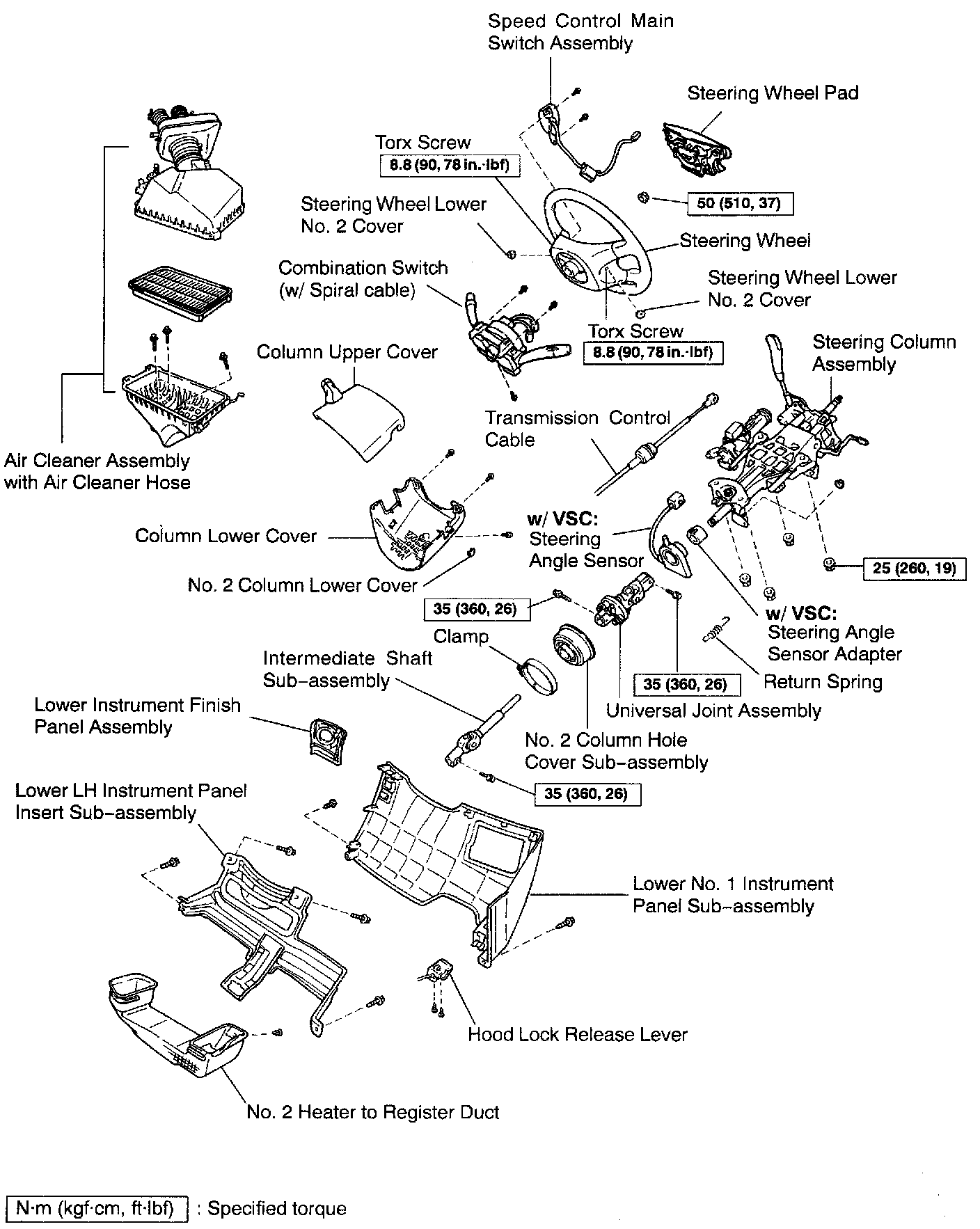

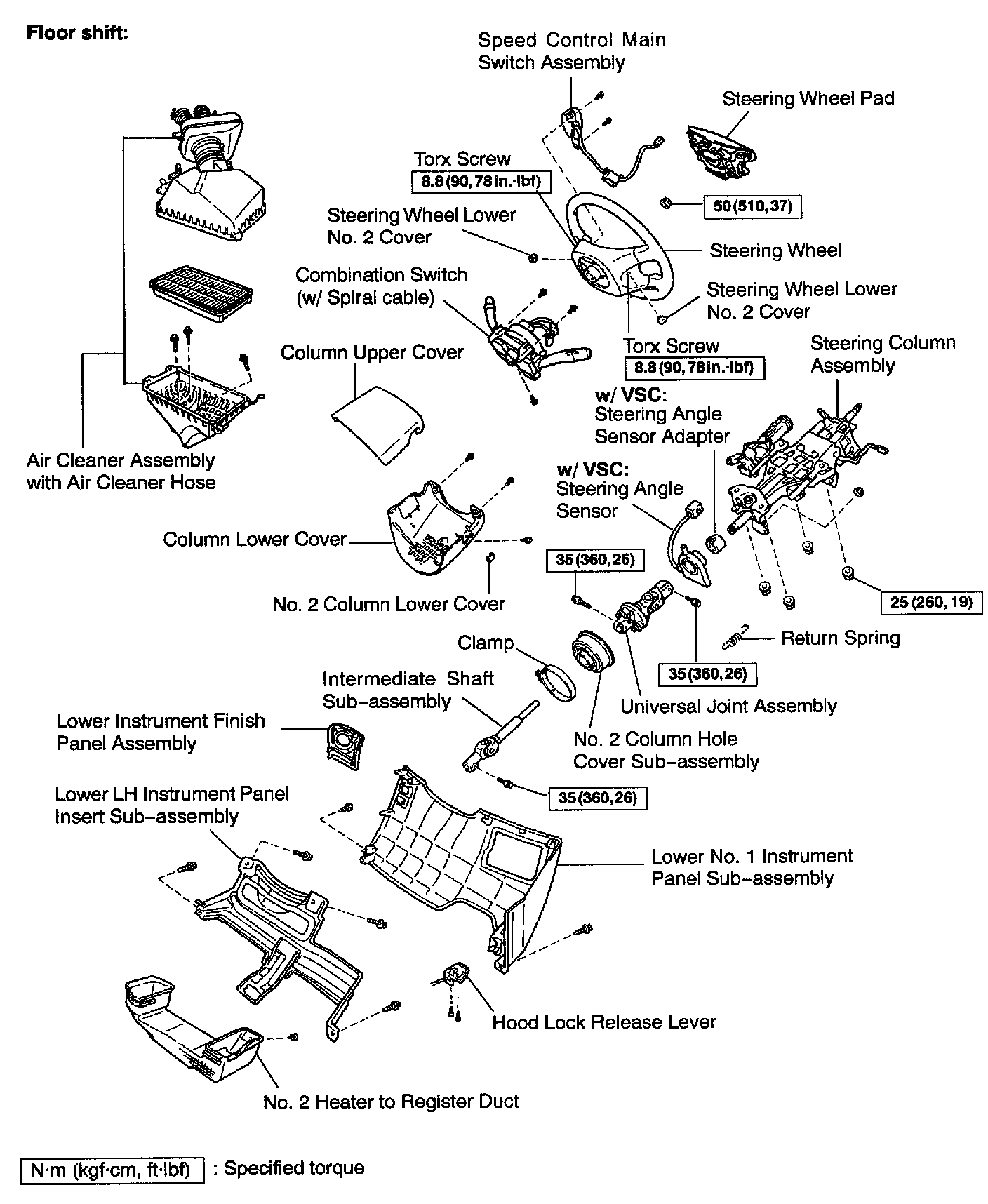

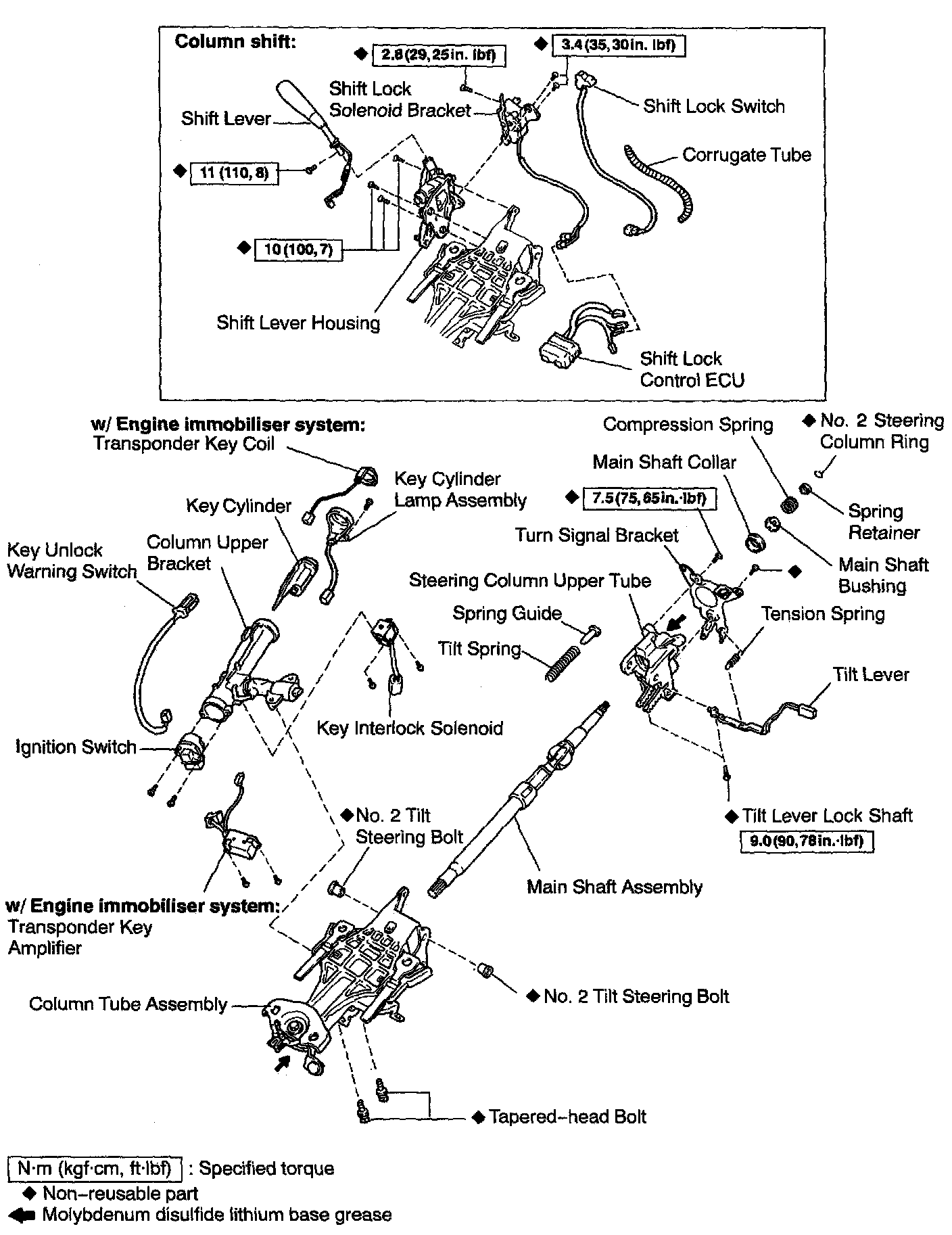

TILT STEERING COLUMN REPLACEMENT AND OVERHAUL W/ RELATED COMPONENTS
