Seats

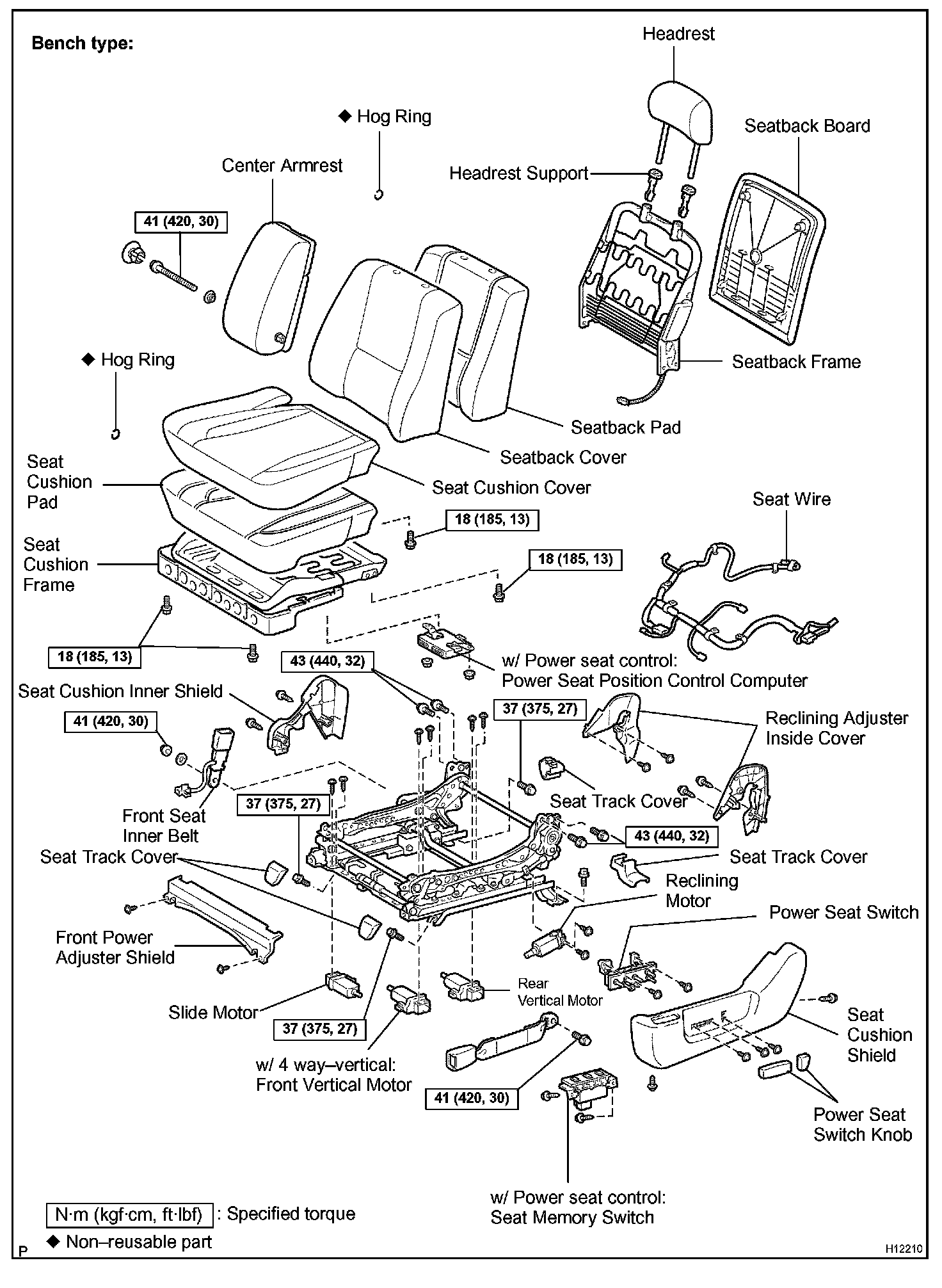

Front Seat (Power Adjuster Type):

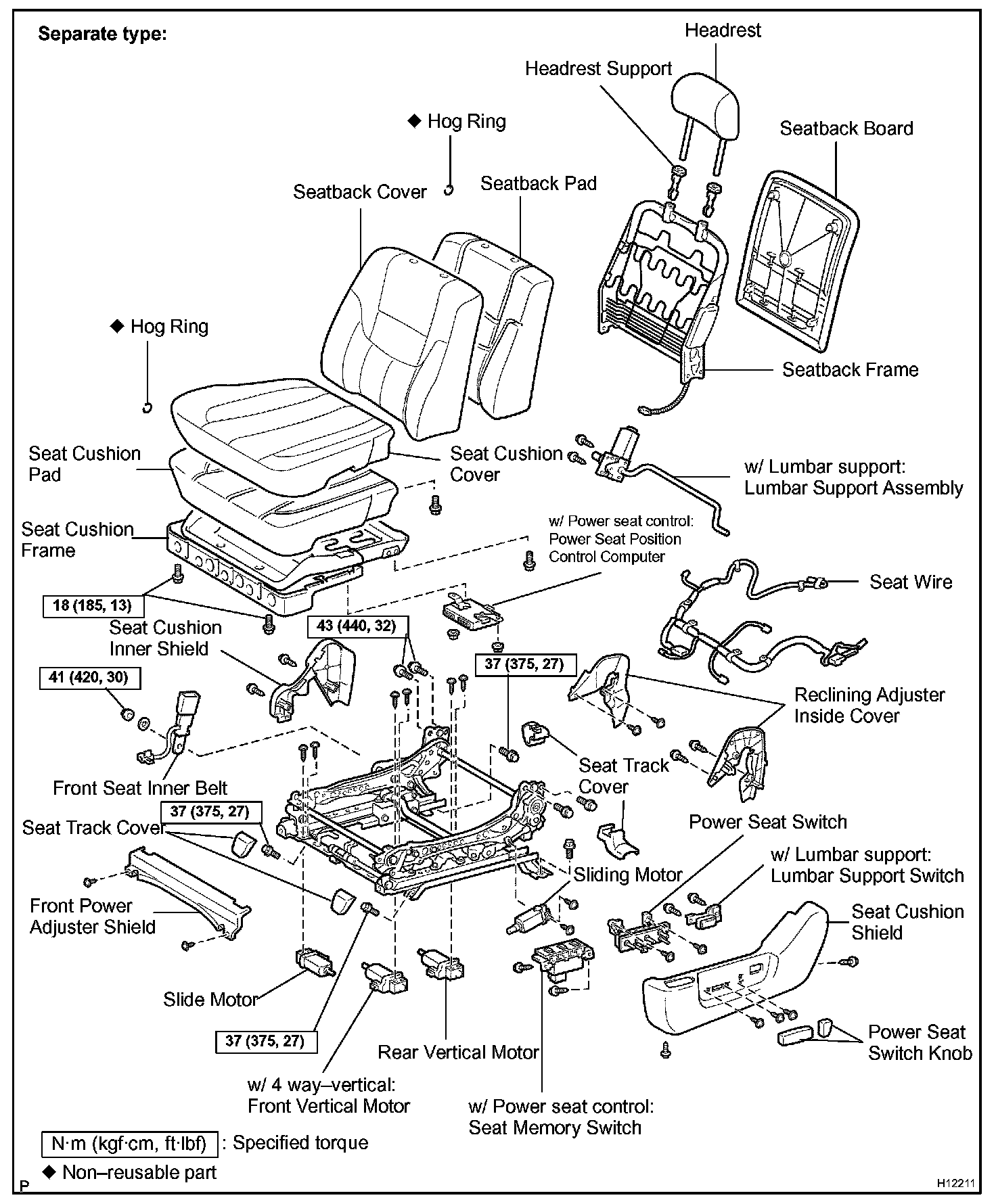

Front Seat (Power Adjuster Type):

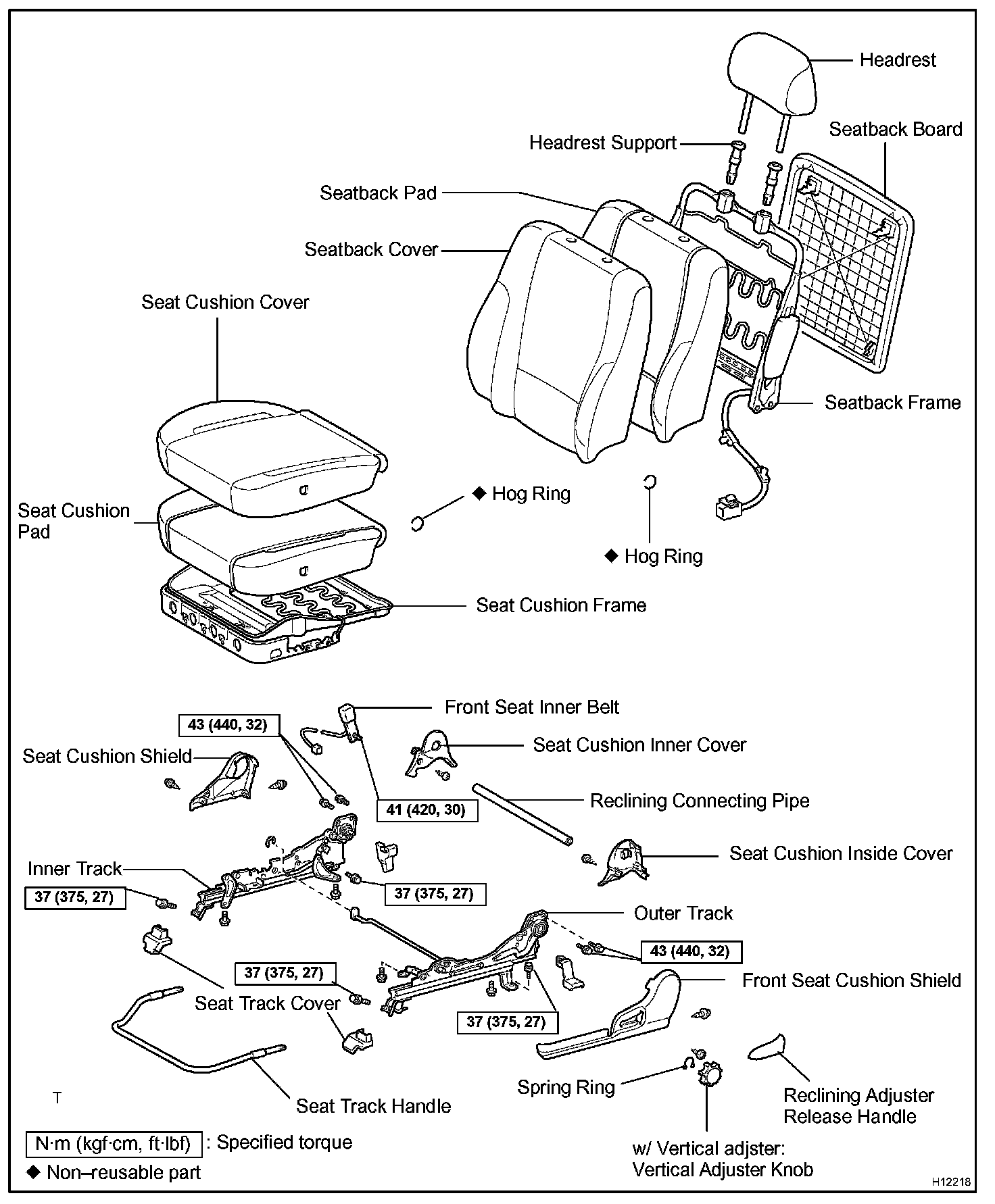

Front Seat (Manual Adjuster Type):

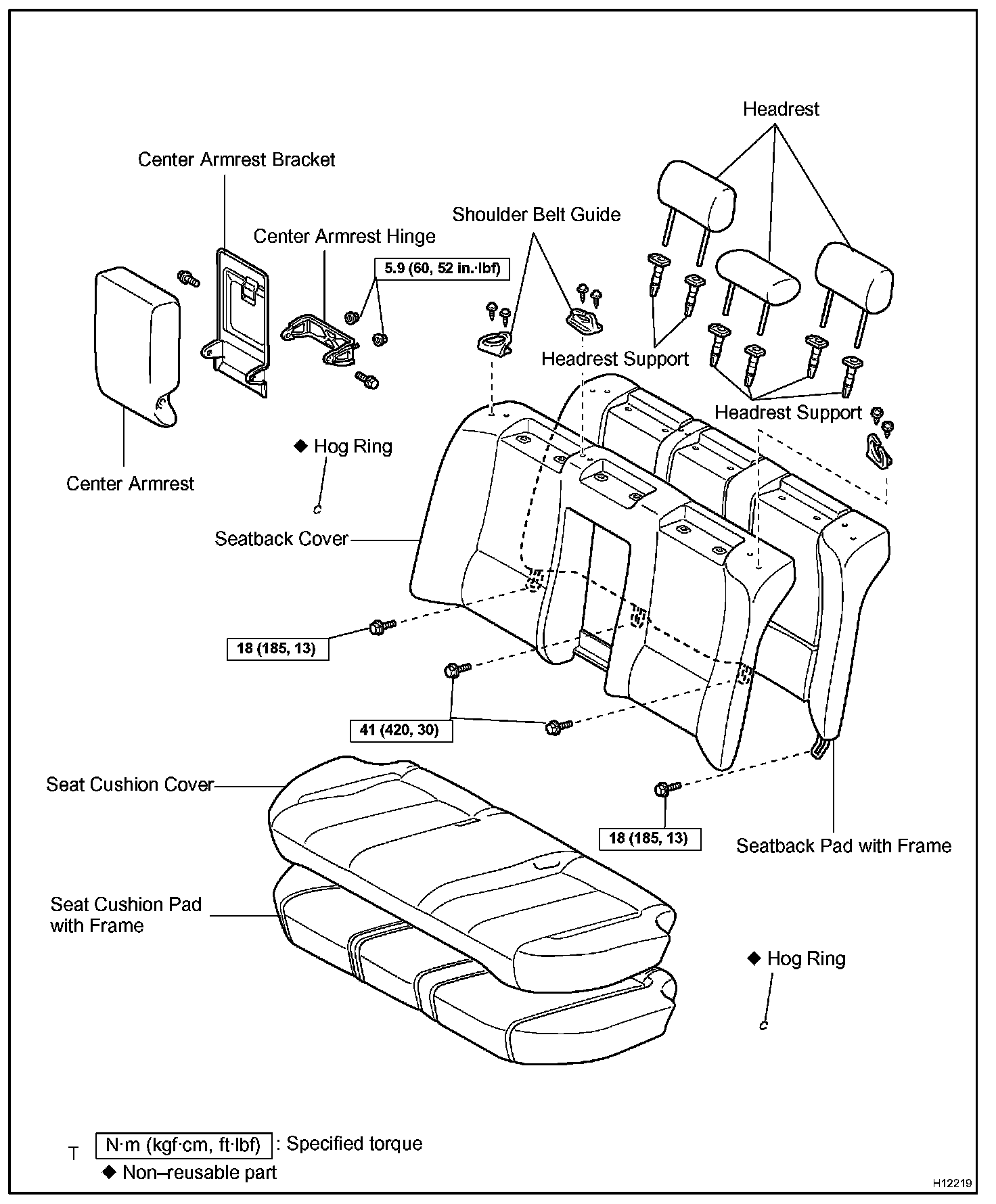

Rear Seat:
