Component Locations

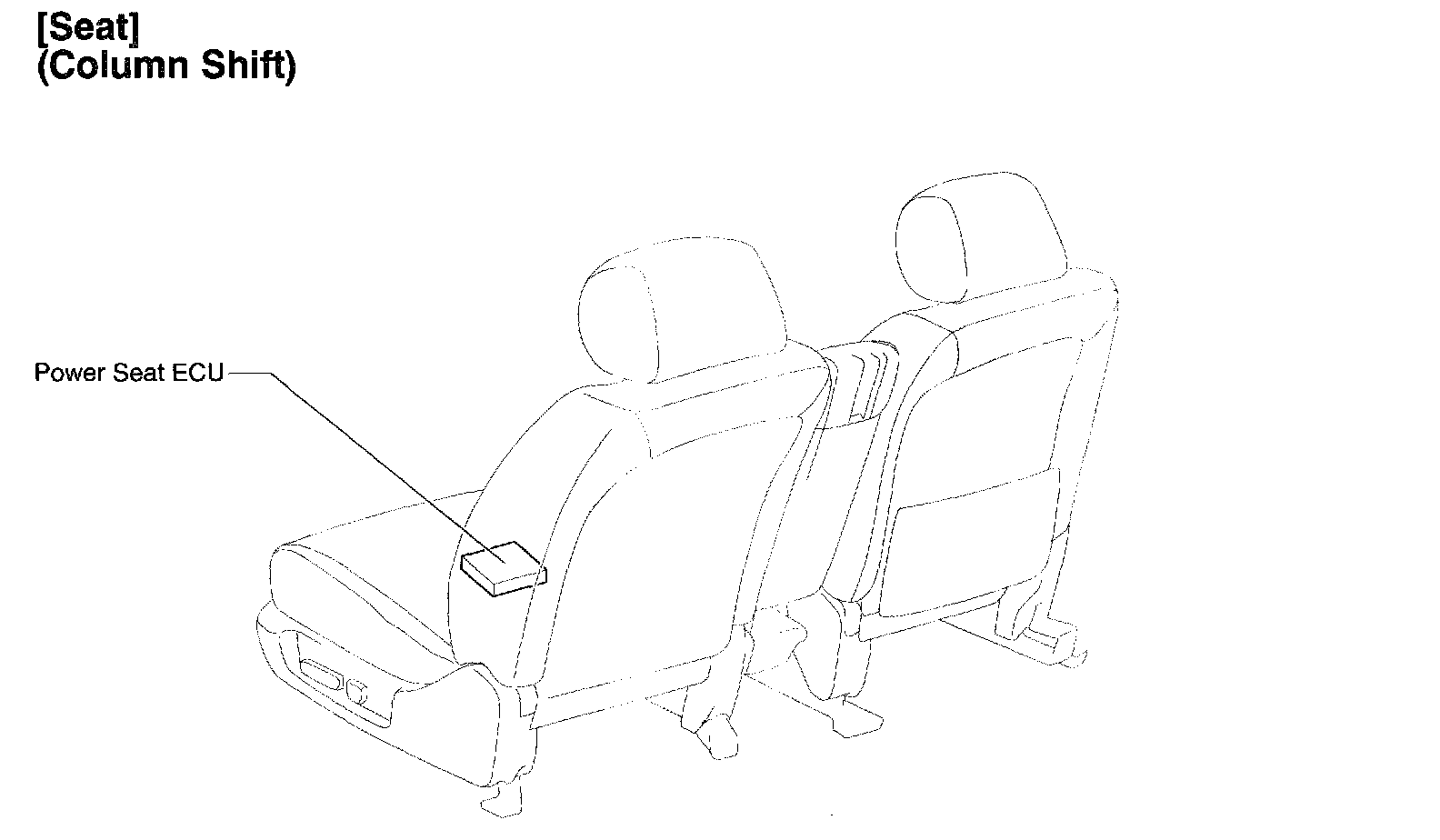

Seat - Column Shift:

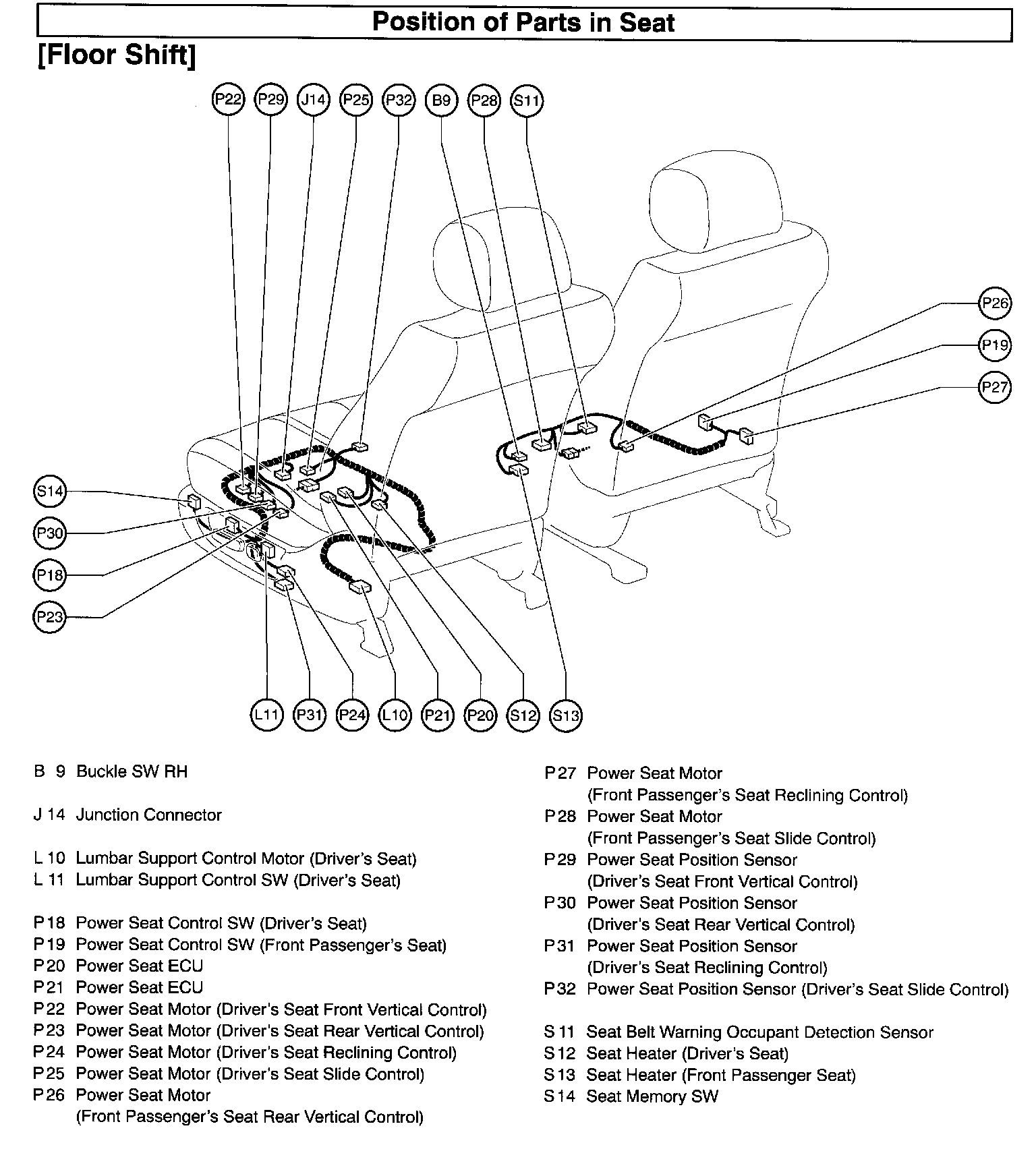

Seat - Floor Shift:

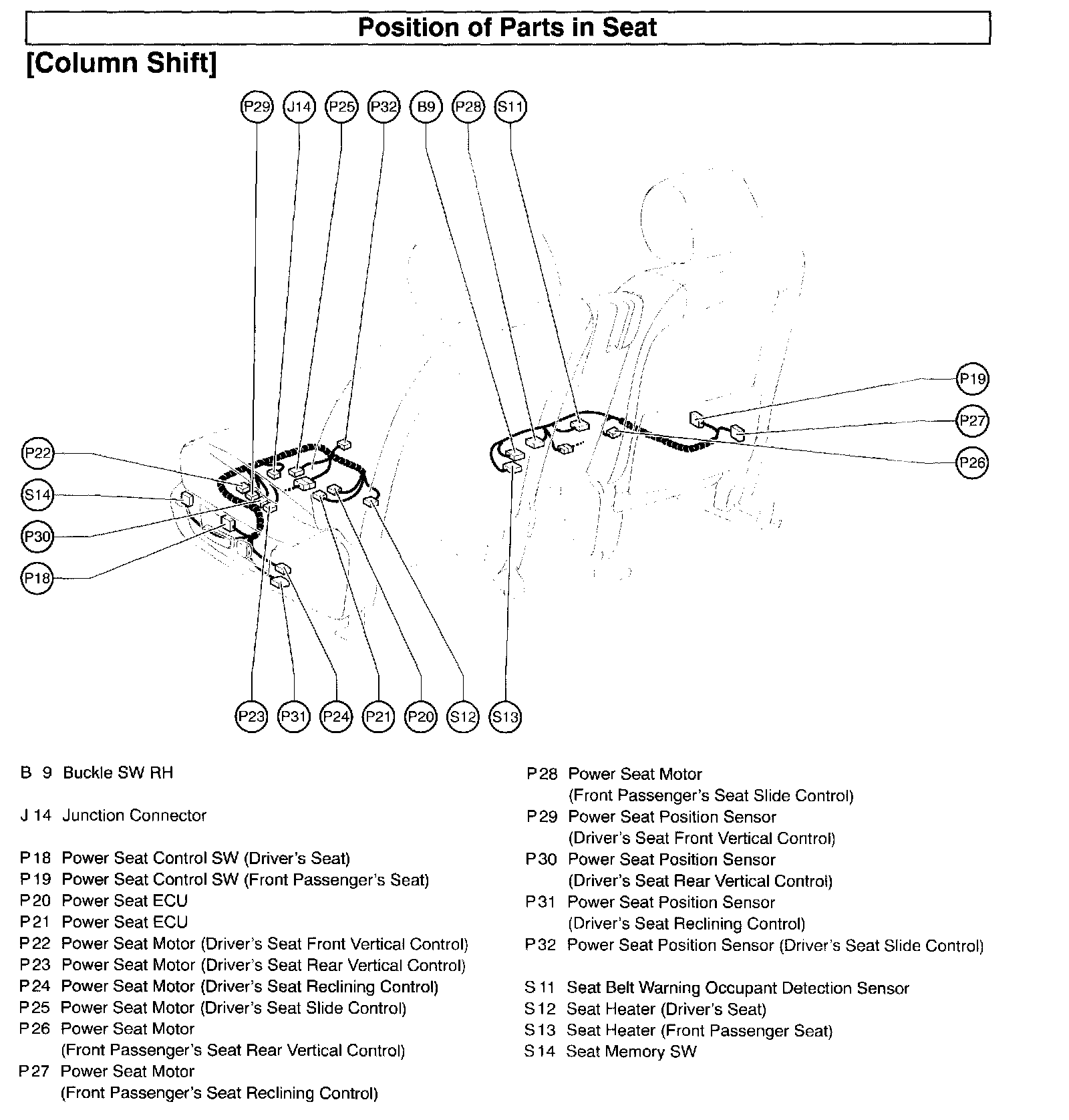

Bu - Se:
Bu - Se:

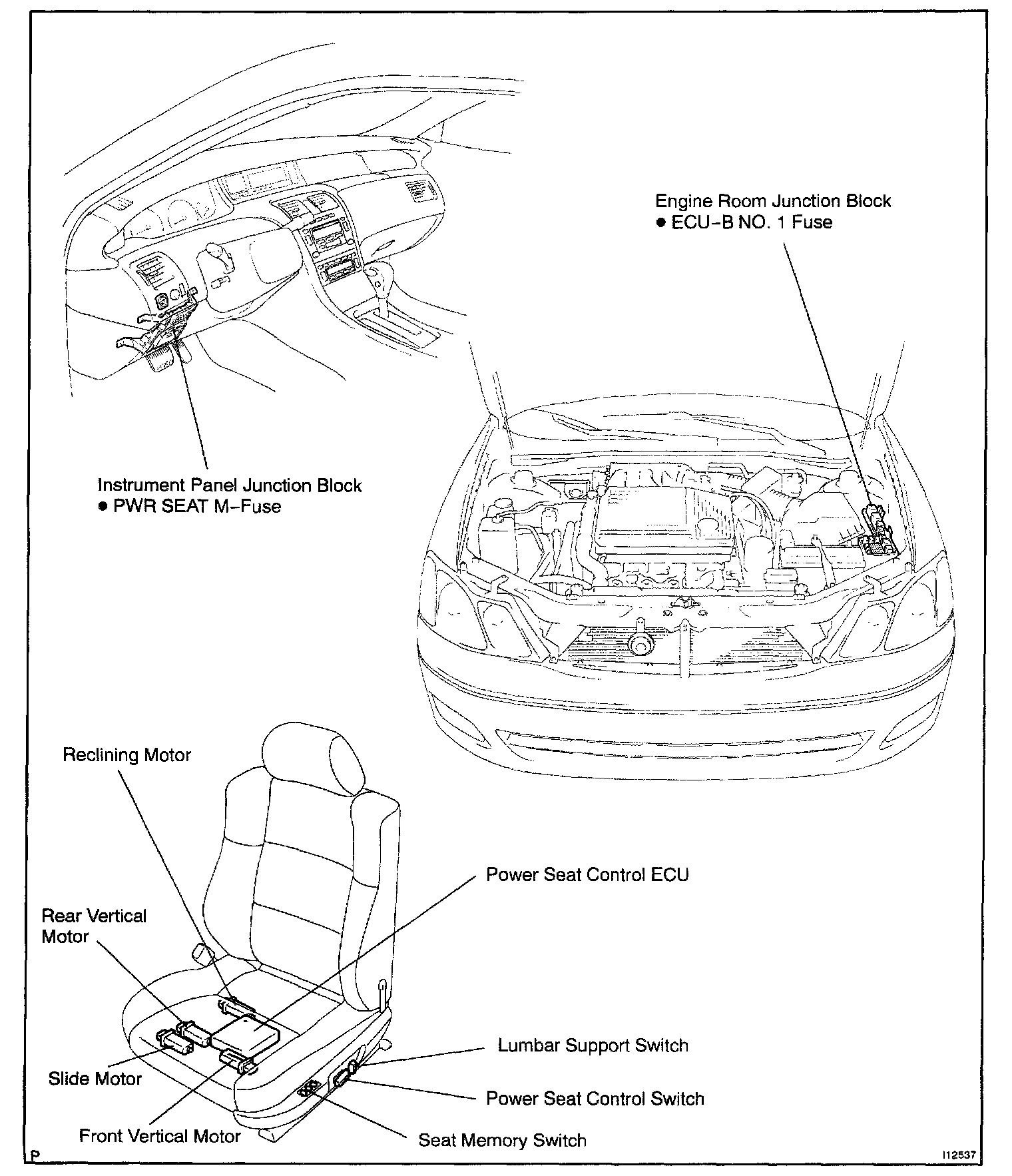

Power Seat Control System (w/ Driving Position Memory):
