Navigation Module: Testing and Inspection

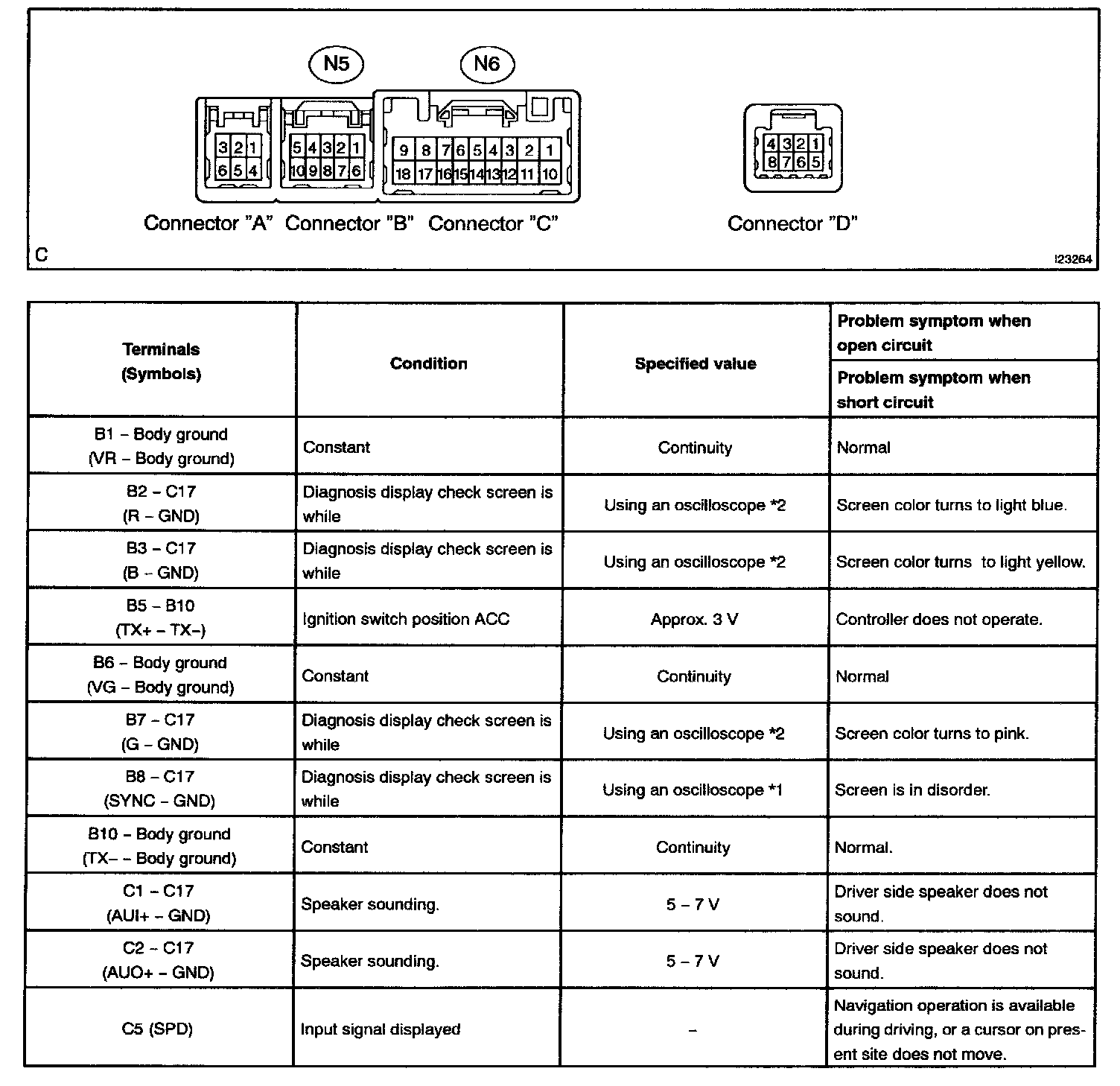

Terminals Of ECM/Pinouts - Multi Display:

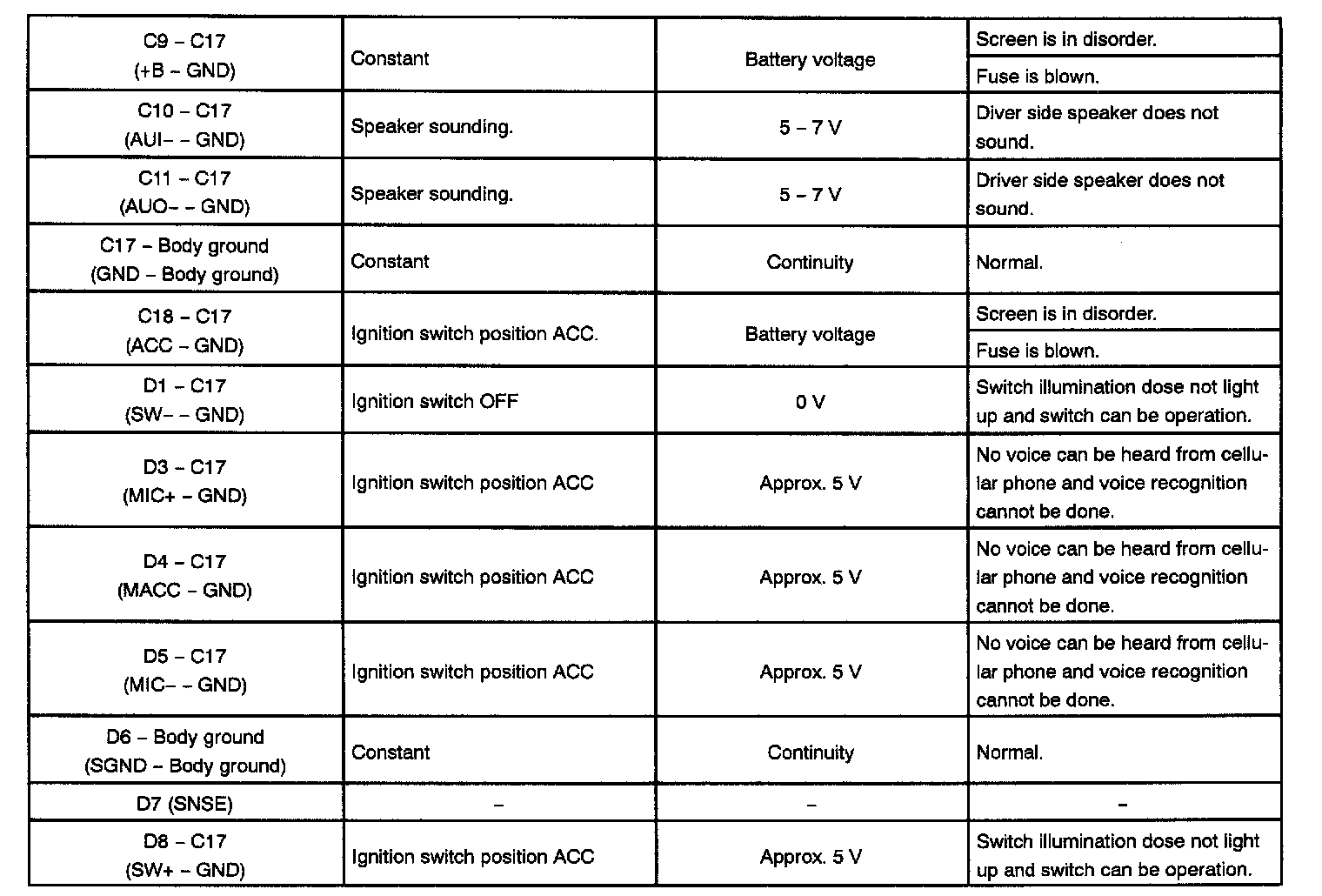

Terminals Of ECM/Pinouts - Multi Display Part 2:

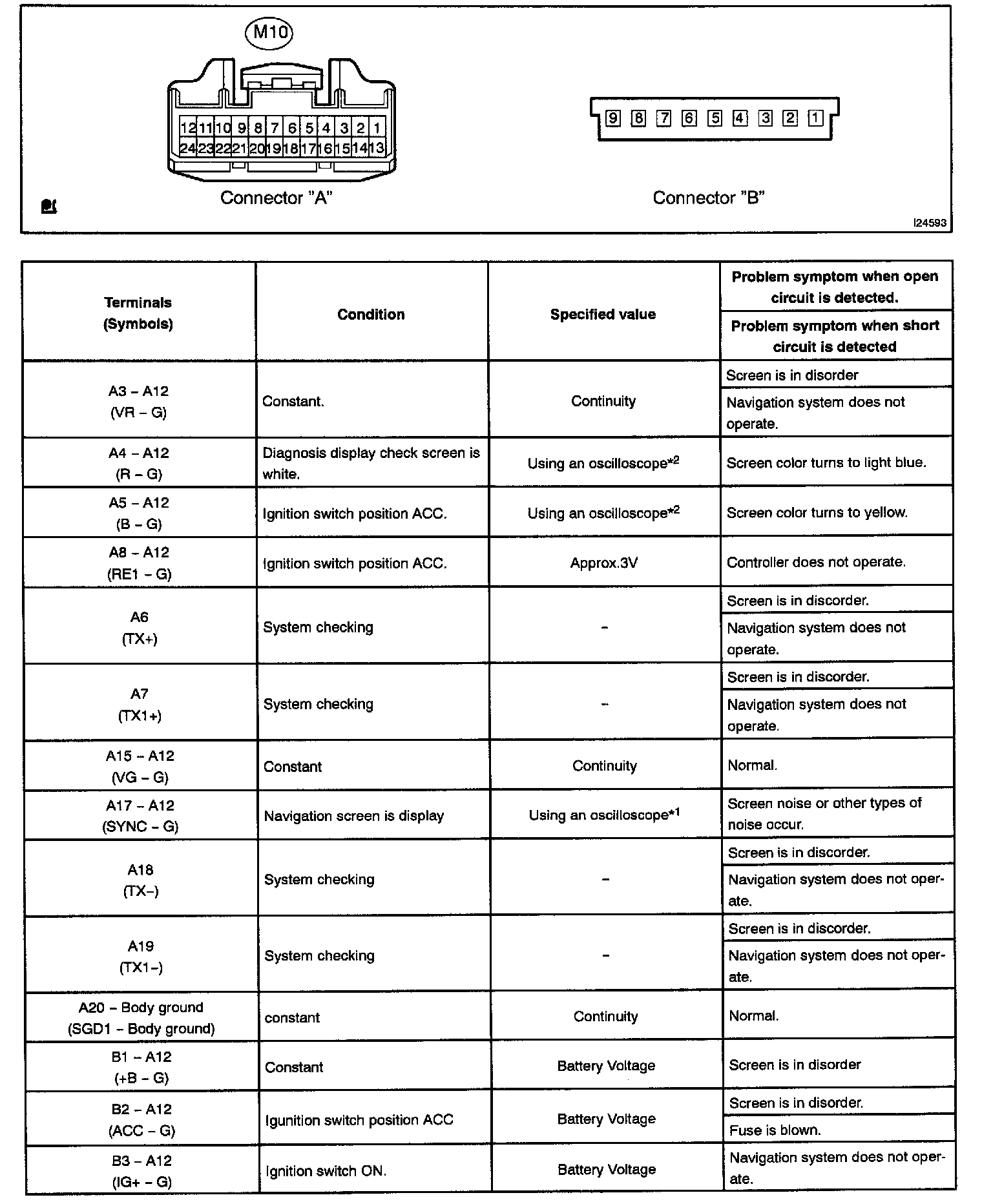

Terminals Of ECM/Pinouts - Navigation ECU Part 1:



Terminals Of ECM/Pinouts - Navigation ECU Part 2:



Oscilloscope Waveforms:
