Diagnostic Trouble Code Chart

If a malfunction code is displayed during the DTC check, check the circuit listed for that code in Fig 1 and proceed to appropriate diagnostic procedure in DIAGNOSTIC TROUBLE CODES .

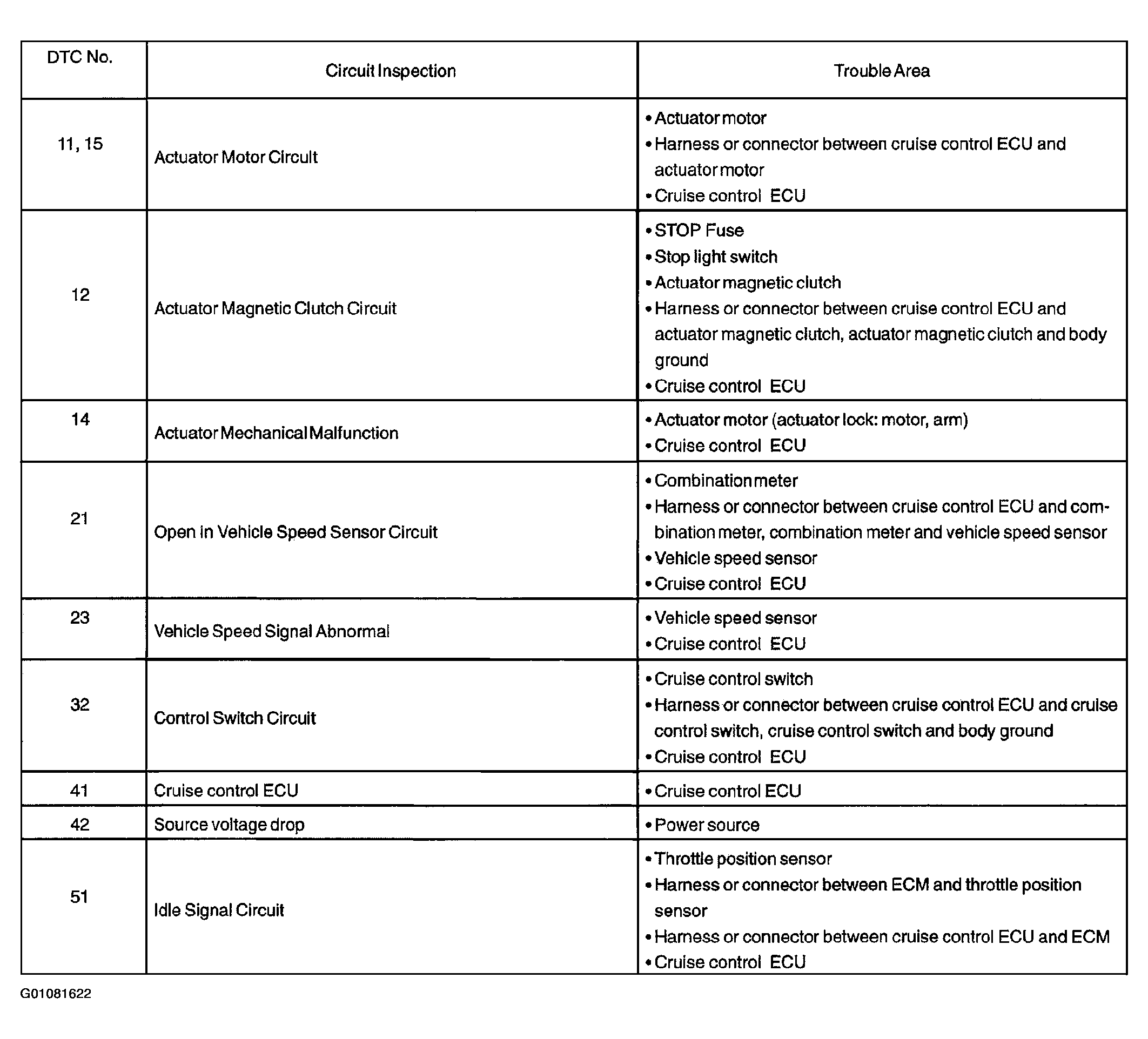

Fig 1: Identifying DTCs & Related Trouble Areas

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

For addition circuit testing/diagnostic procedures, see the following:

• STOP LIGHT SWITCH CIRCUIT
• ELECTRONICALLY CONTROLLED TRANSMISSION COMMUNICATION CIRCUIT
• PARK/NEUTRAL POSITION SWITCH CIRCUIT
• ECU POWER SOURCE CIRCUIT
• CRUISE MAIN INDICATOR LIGHT CIRCUIT
• DIAGNOSIS CIRCUIT
• ACTUATOR CONTROL CABLE
