Ignition Coil: Removal

Disconnect ignition coil (with igniter) connectors .
Remove ignition coils (with igniter) from spark plugs .
Remove the bolt, and pull out the ignition coil (with igniter). Remove the 8 ignition coils (with igniter).

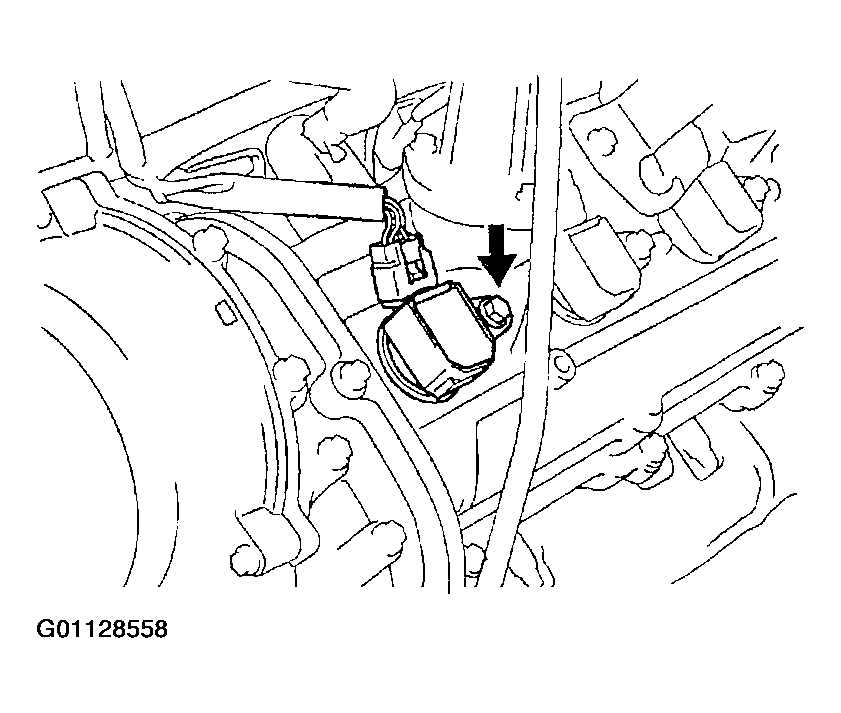

Fig 1: Locating Ignitor Coil Bolt
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
