Evaporative Emission (EVAP) Control System: Components

For locations of EVAP components, see illustration. See Fig 1.

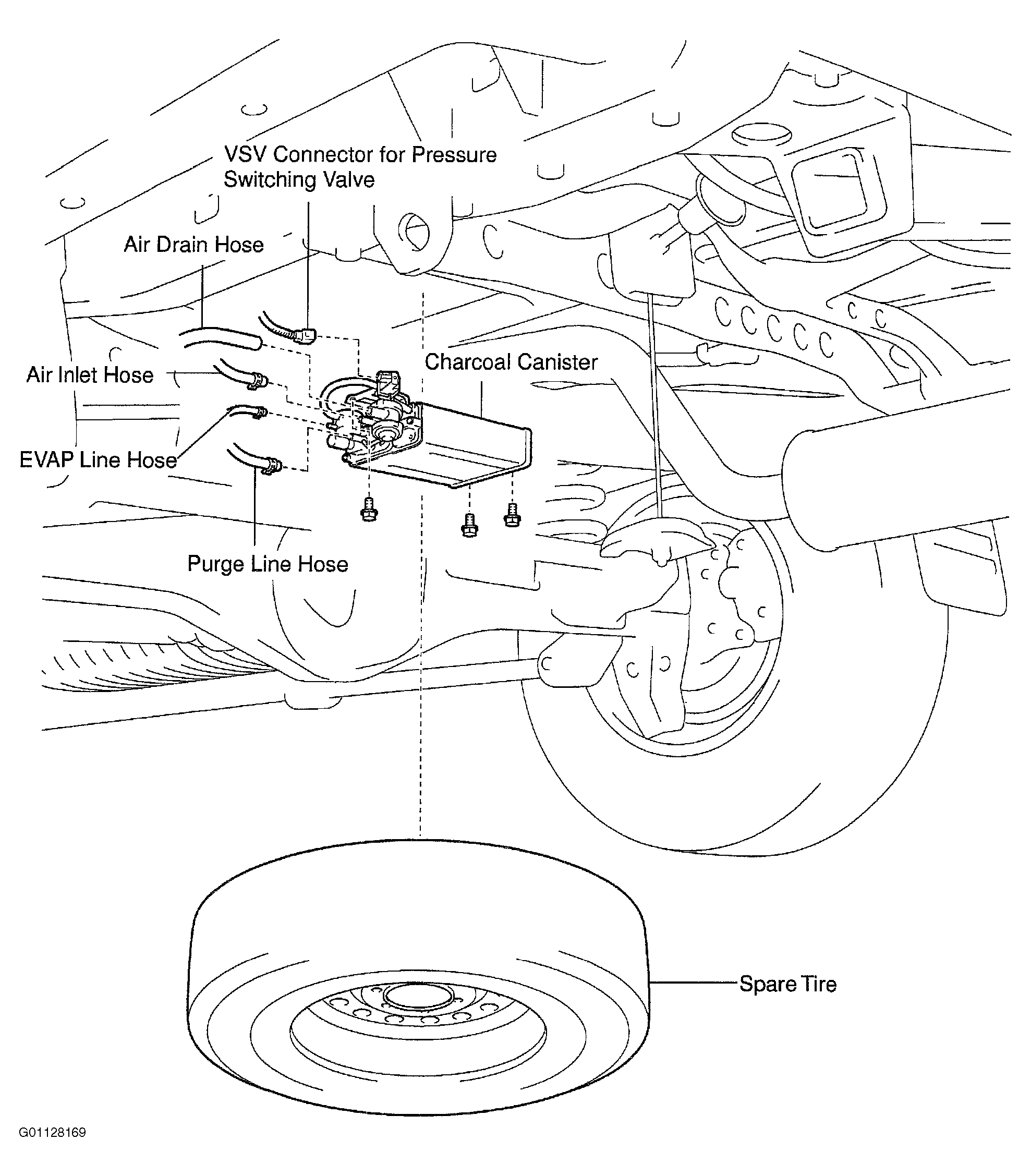

Fig 1: Locating EVAP components
G01128169Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
