Air Conditioning Control Assembly: Disassembly

WARNING: This page is about a different car, the 2002 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

W/O navigation system: disassemble integration panel .
1. Remove the knob.
  1. Pull out the dial knobs.
  2. Using a screwdriver, pull out the switch knobs.

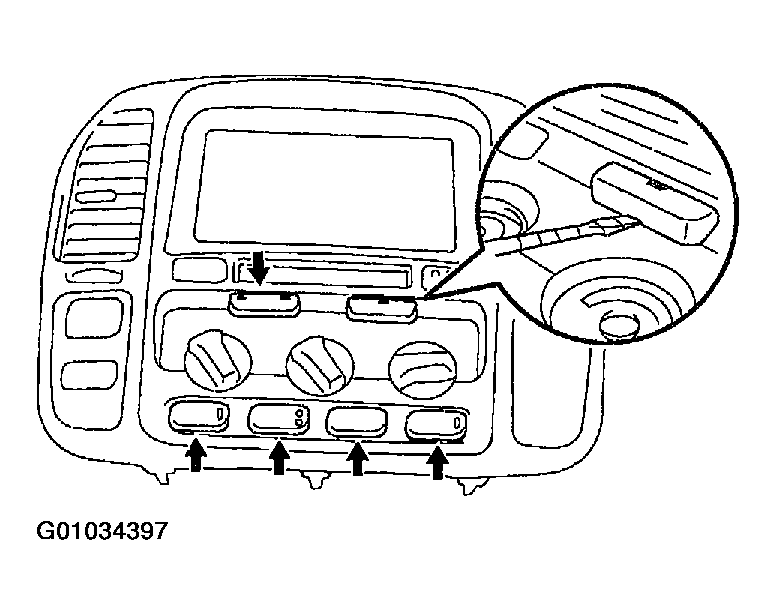

    Fig 1: Removing Switch Knobs
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NOTE: Tape the screwdriver tip before use.
2. Remove the A/C amplifier.
  1. Remove the 6 screws and cover.

    Fig 2: Locating Screws For Removal Of Cover
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Disconnect the connector and remove the amplifier.

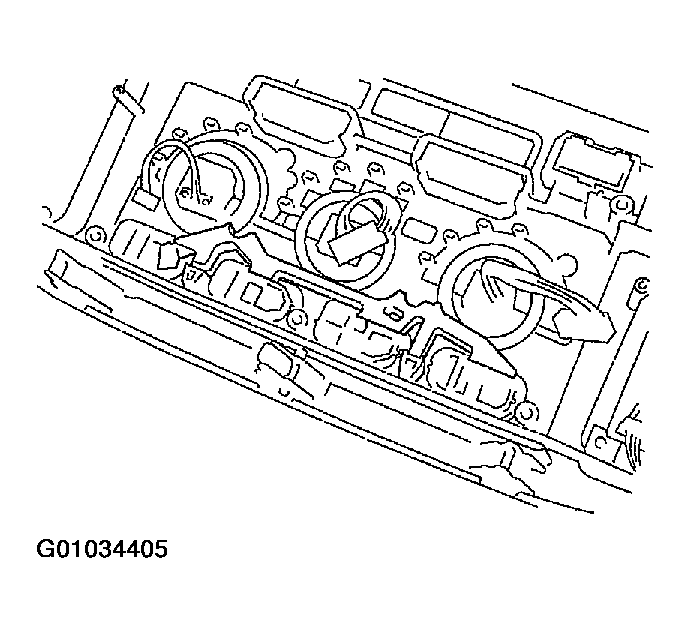

    Fig 3: Disconnecting Amplifier Connector
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the diff. lock and hazard switch.
  1. Using a screwdriver, pull out the switch knobs.
    NOTE: Tape the screwdriver tip before use.
  2. Remove the screw and switch.

    Fig 5: Locating Screw For Removal Of Switch
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. Using a screwdriver, turn the bulb to the left and pull out the bulb.
4. Remove the heater control.
  1. Remove the 3 nuts from the control switches.

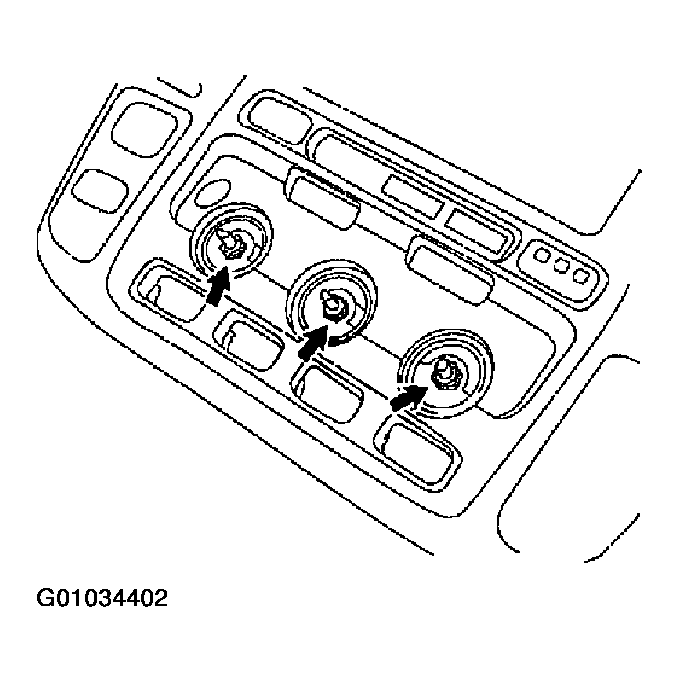

    Fig 6: Locating Nuts For Removal
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Remove the screw and heater control, then disconnect the connectors.

    Fig 7: Locating Heater Control Retaining Screw
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Remove the control switches.
  1. Disconnect the connectors and remove the switches.

    Fig 8: Removing Control Switches
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Remove the bulbs.
  1. Using a screw driver, turn the bulb to the left and pull out the bulb.
7. Remove the heater control lens.

  Fig 9: Removing Heater Control Lens
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
W/navigation system: disassemble integration panel .
1. Remove the knob.
  1. Pull out the dial knobs.
  2. Using a screwdriver, pull out the switch knobs.
  NOTE: Tape the screwdriver tip before use.

  Fig 10: Removing Switch Knobs
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the A/C amplifier.
  1. Remove the 5 screws and cover.

    Fig 11: Locating Screw For Removal Of Cover
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Disconnect the connector and remove the amplifier.
3. Remove the diff. lock and hazard switch.
  1. Using a screwdriver, pull out the switch knobs.

    Fig 12: Removing Switch Knobs
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NOTE: Tape the screwdriver tip before use.
  2. Remove the screw and switch.

    Fig 13: Locating Screw For Removal
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. Using a screwdriver, turn the bulb to the left and pull out the bulb.
