How To Proceed With Troubleshooting HV Battery Control System

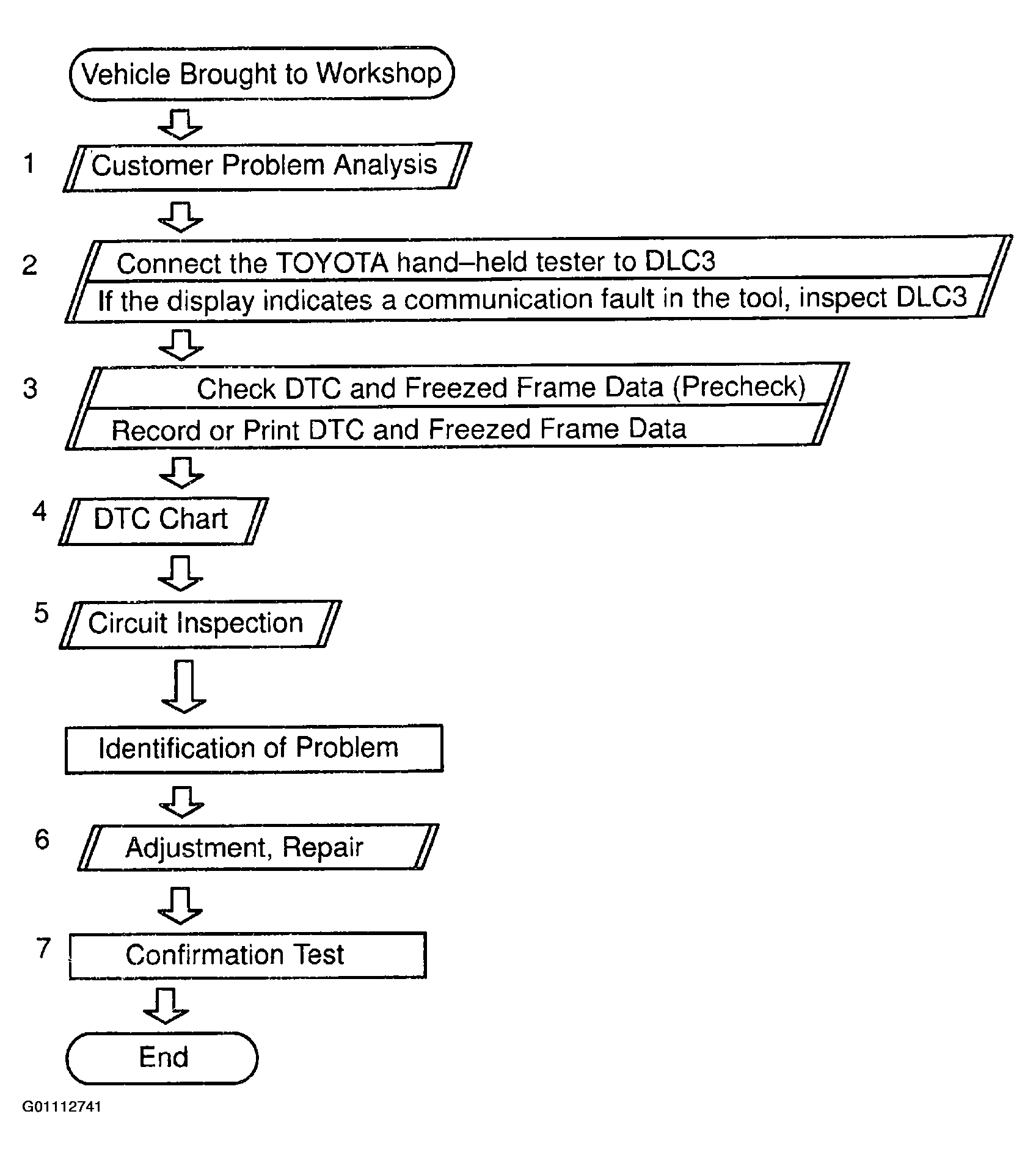

Fig 1: Troubleshooting Flowchart
G01112741Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
