Power Steering Gear: Components

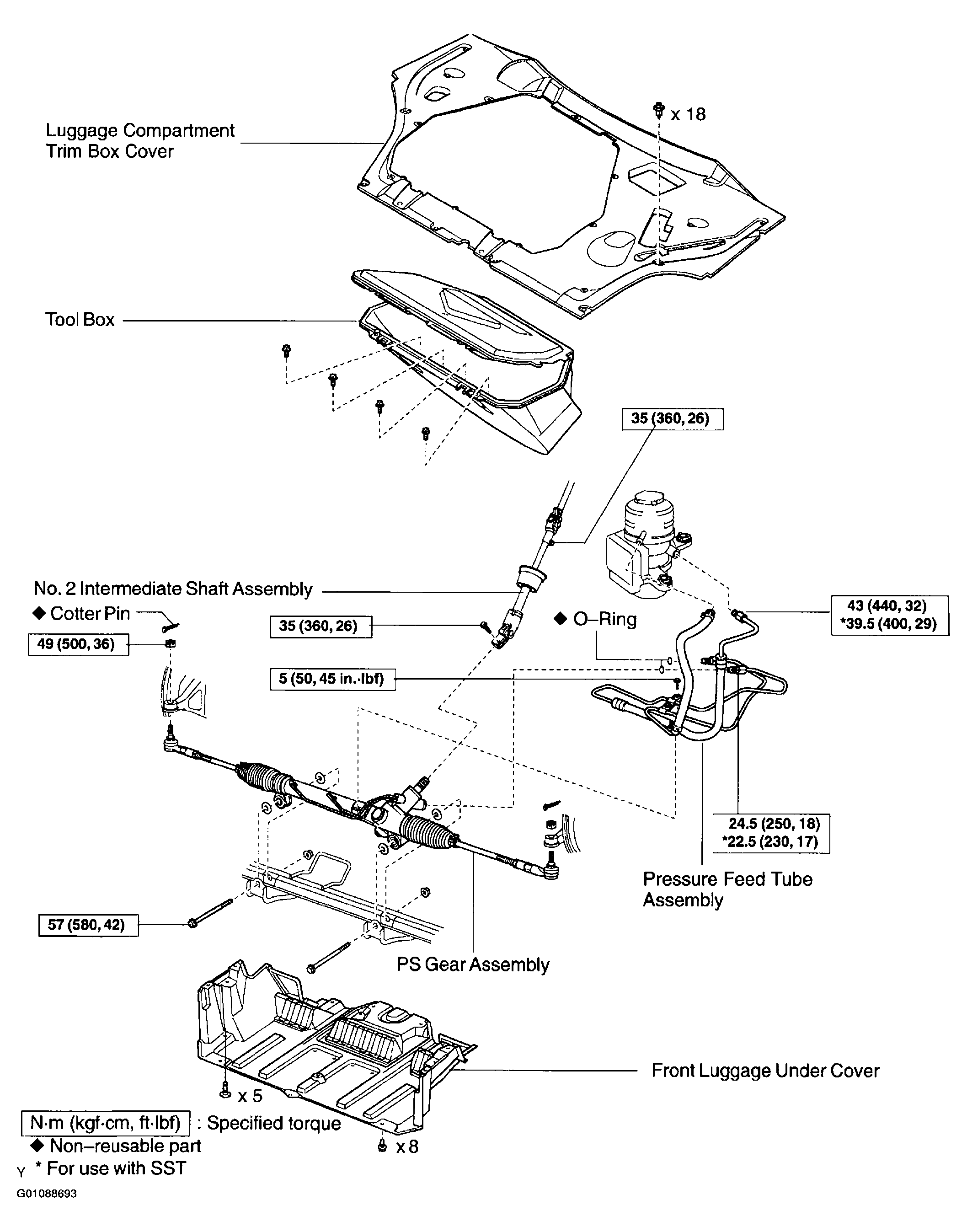

Fig 1: Locating Steering Gear & Surrounding Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

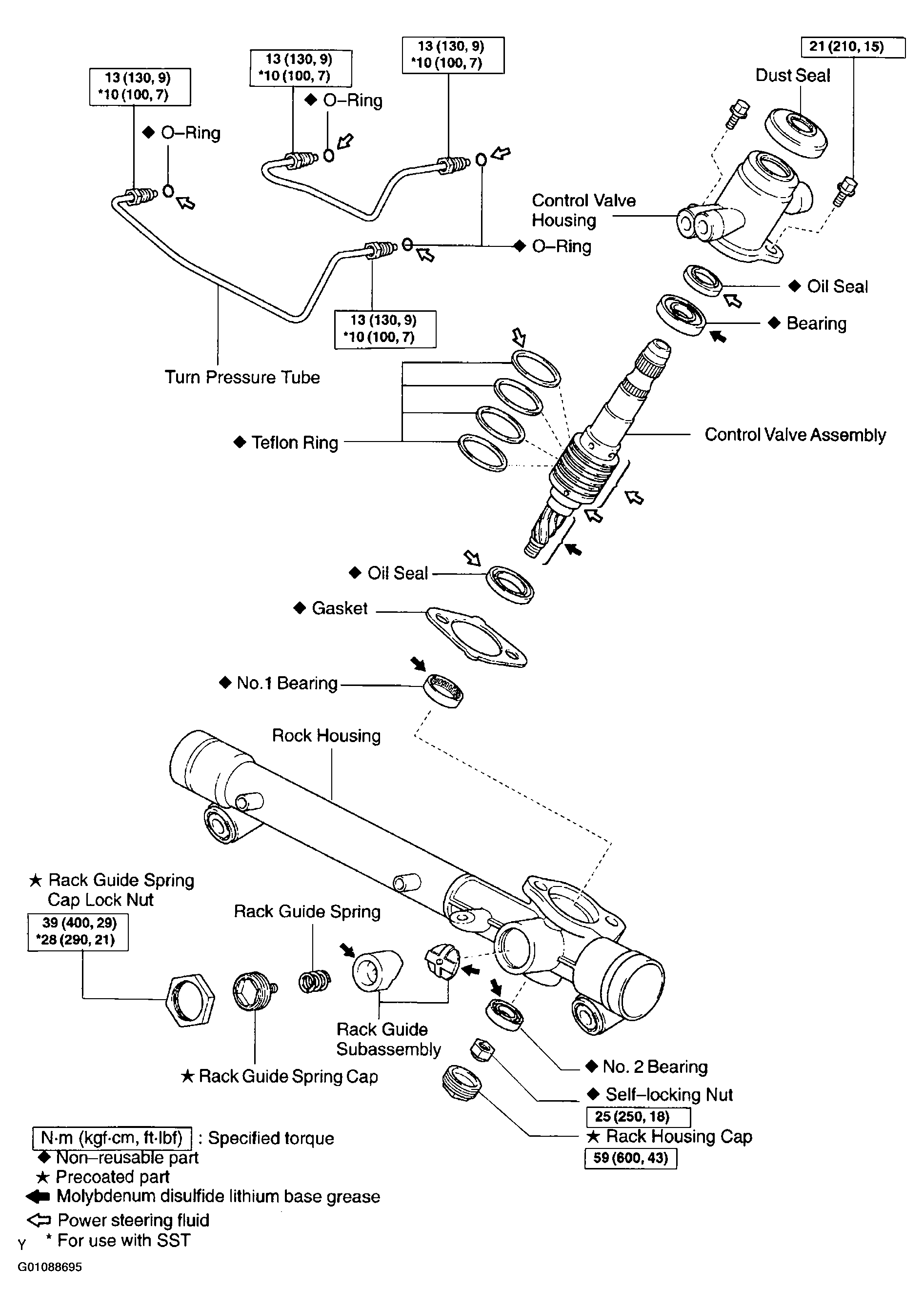

Fig 2: Identifying Steering Gear-Related Components (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

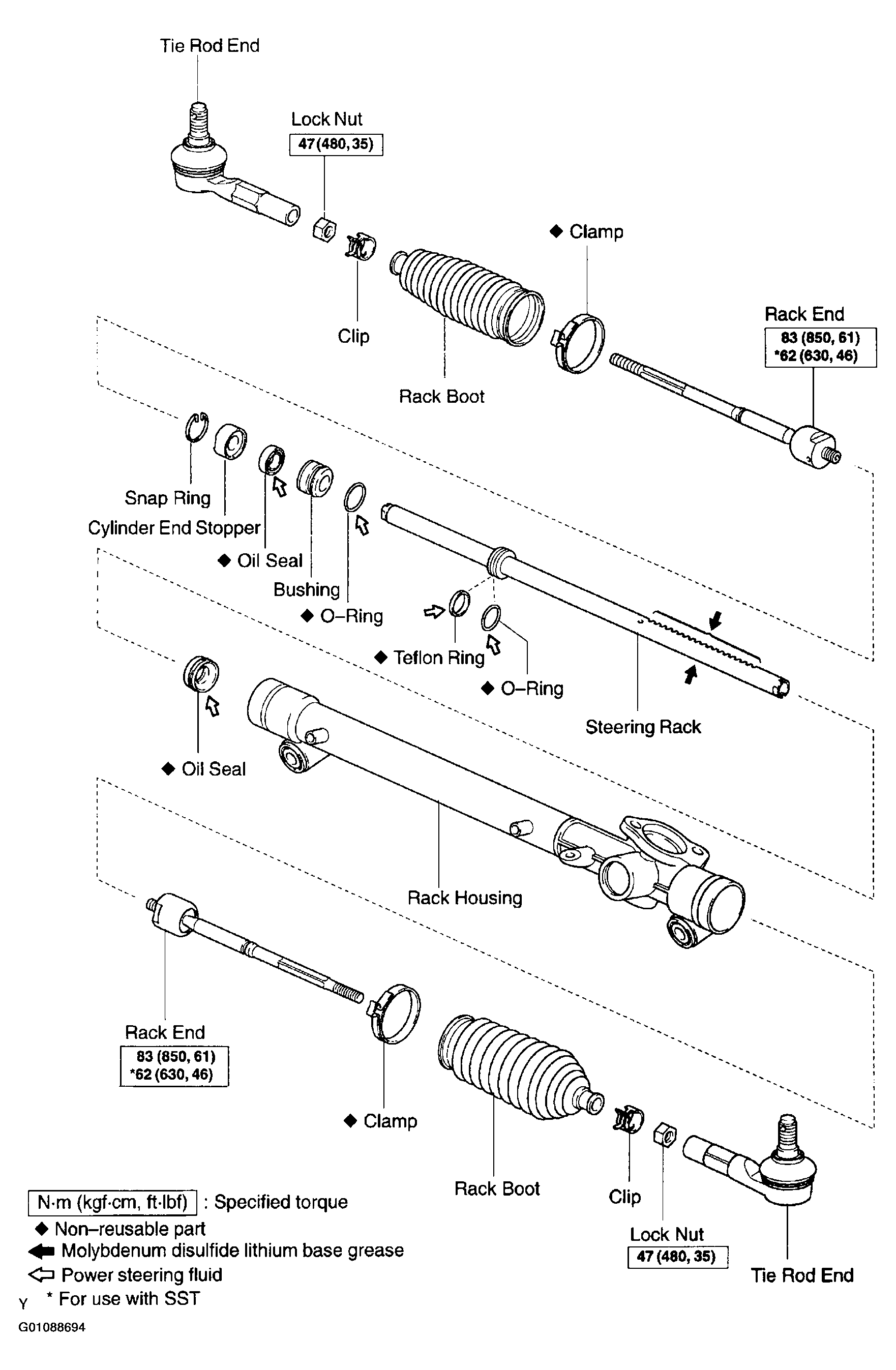

Fig 3: Identifying Steering Gear-Related Components (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
