Testing Procedure

For wiring diagrams, see Figure and Figure . For testing procedure see Fig 1.

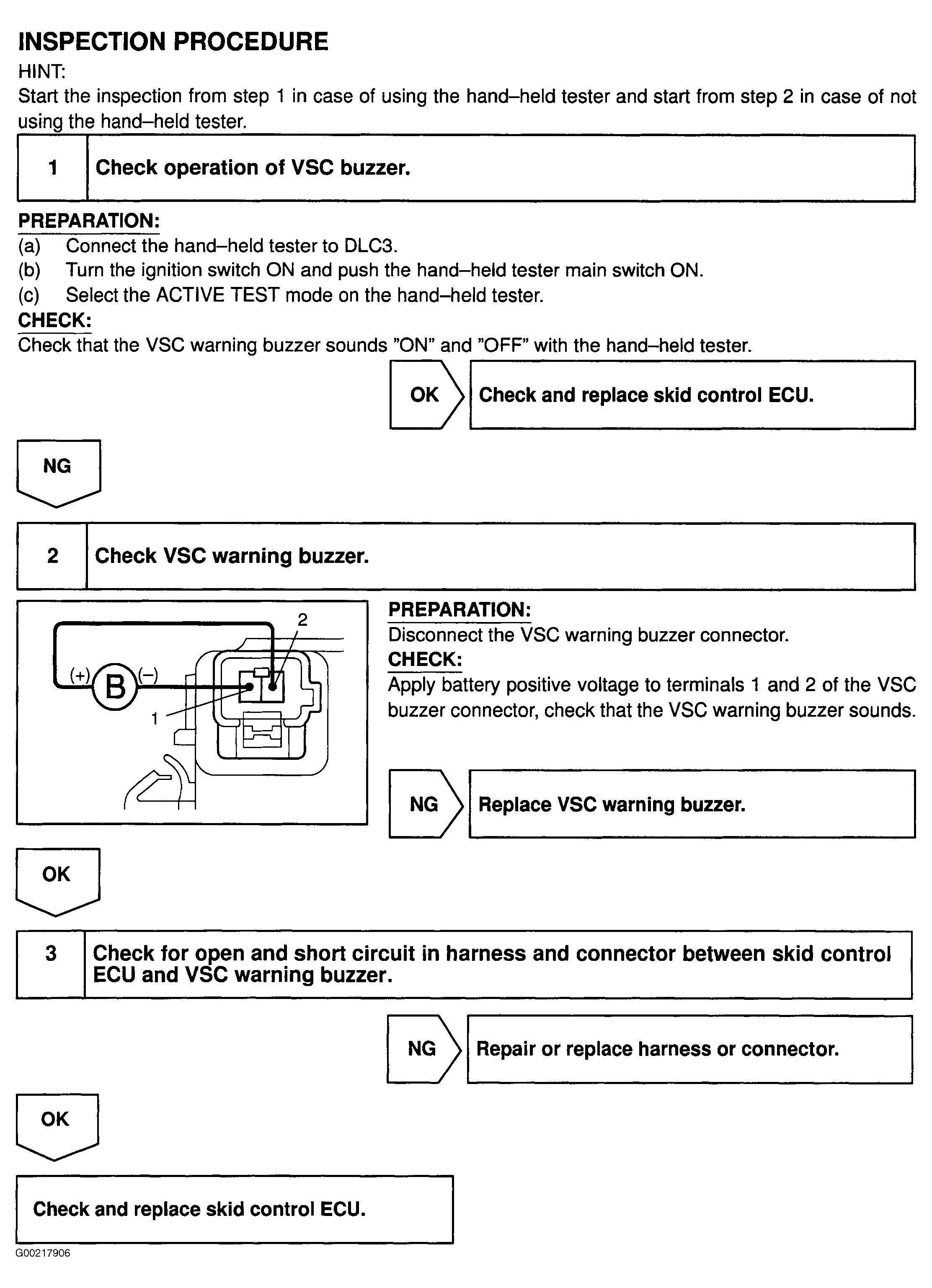

Fig 1: Testing Procedures VSC Warning Buzzer Circuit
G00217906Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
