Testing Procedure

For wiring diagram see Figure. For testing procedure see Fig 1 and Fig 2 .

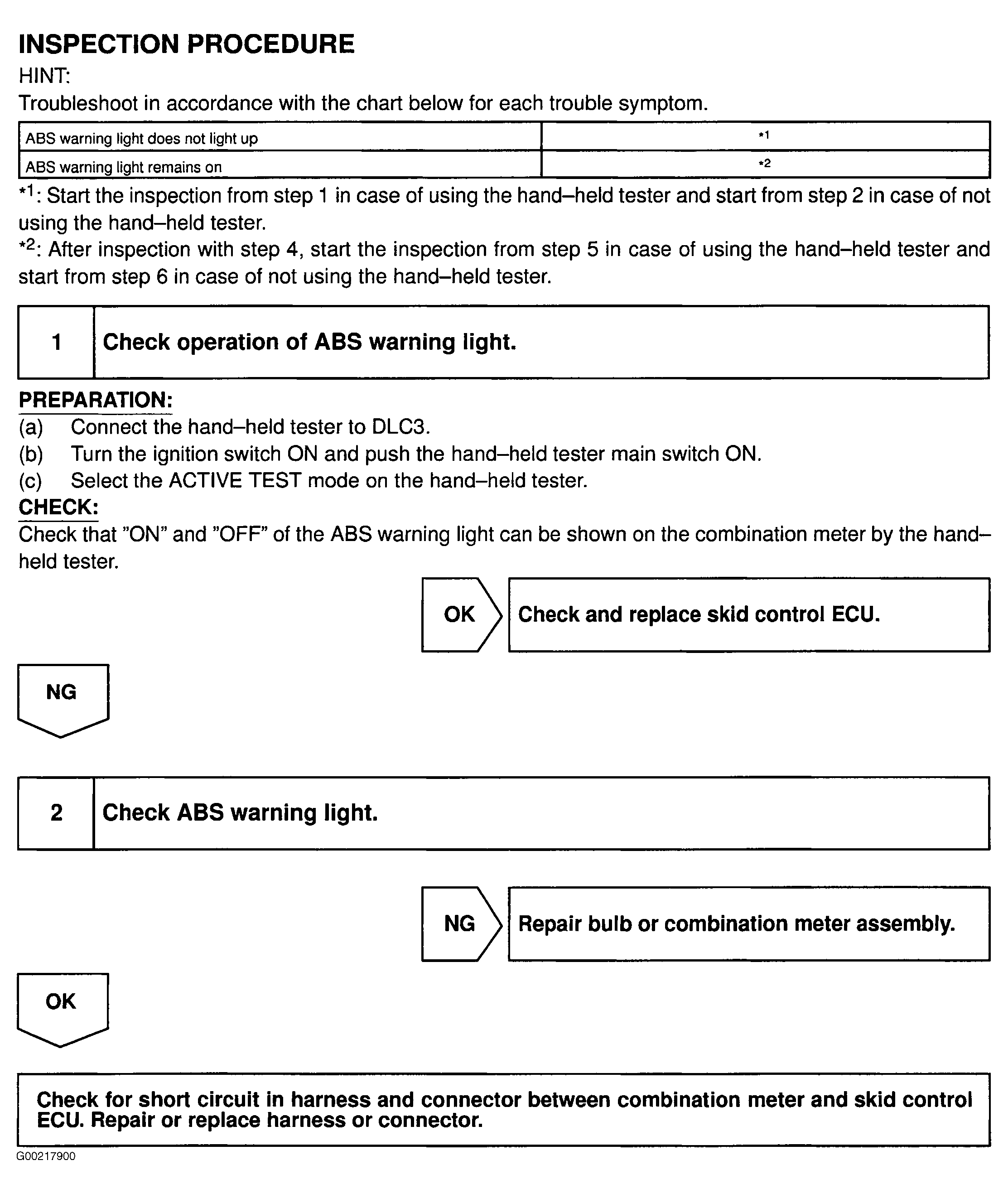

Fig 1: Testing Procedures ABS Warning Light Circuit (1 Of 2)

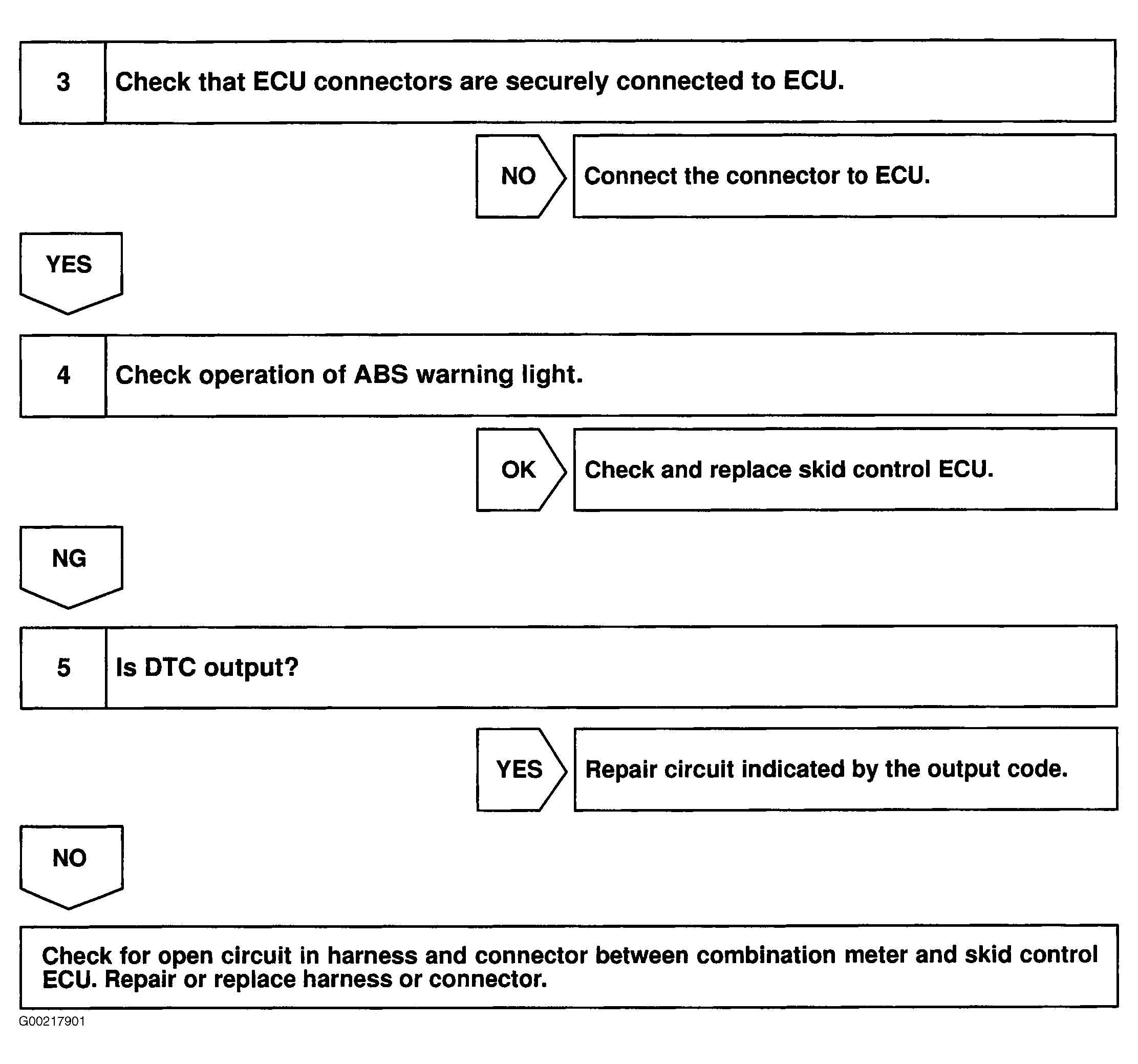

Fig 2: Testing Procedures ABS Warning Light Circuit (2 Of 2)
