Back Door Power Window Switch Circuit: Wiring Diagram

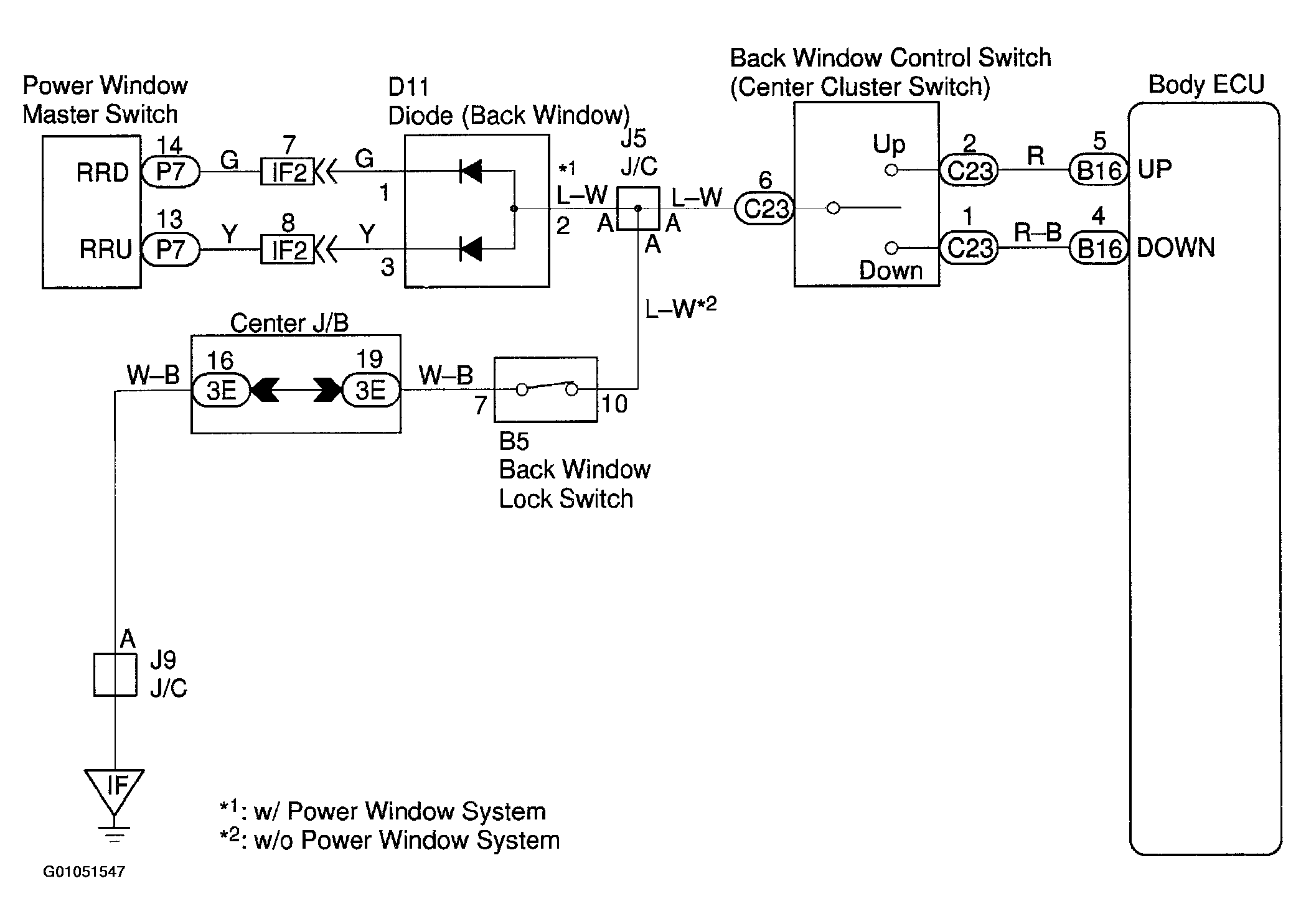

Fig 1: Back Door Power Window Switch Circuit Wiring Diagram
G01051547Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
