Transmission Control Systems
>>
Transmission Control System Transaxle
>>
HV Battery
>>
Hybrid Transaxle Assembly Components
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Hybrid Transaxle Assembly Components

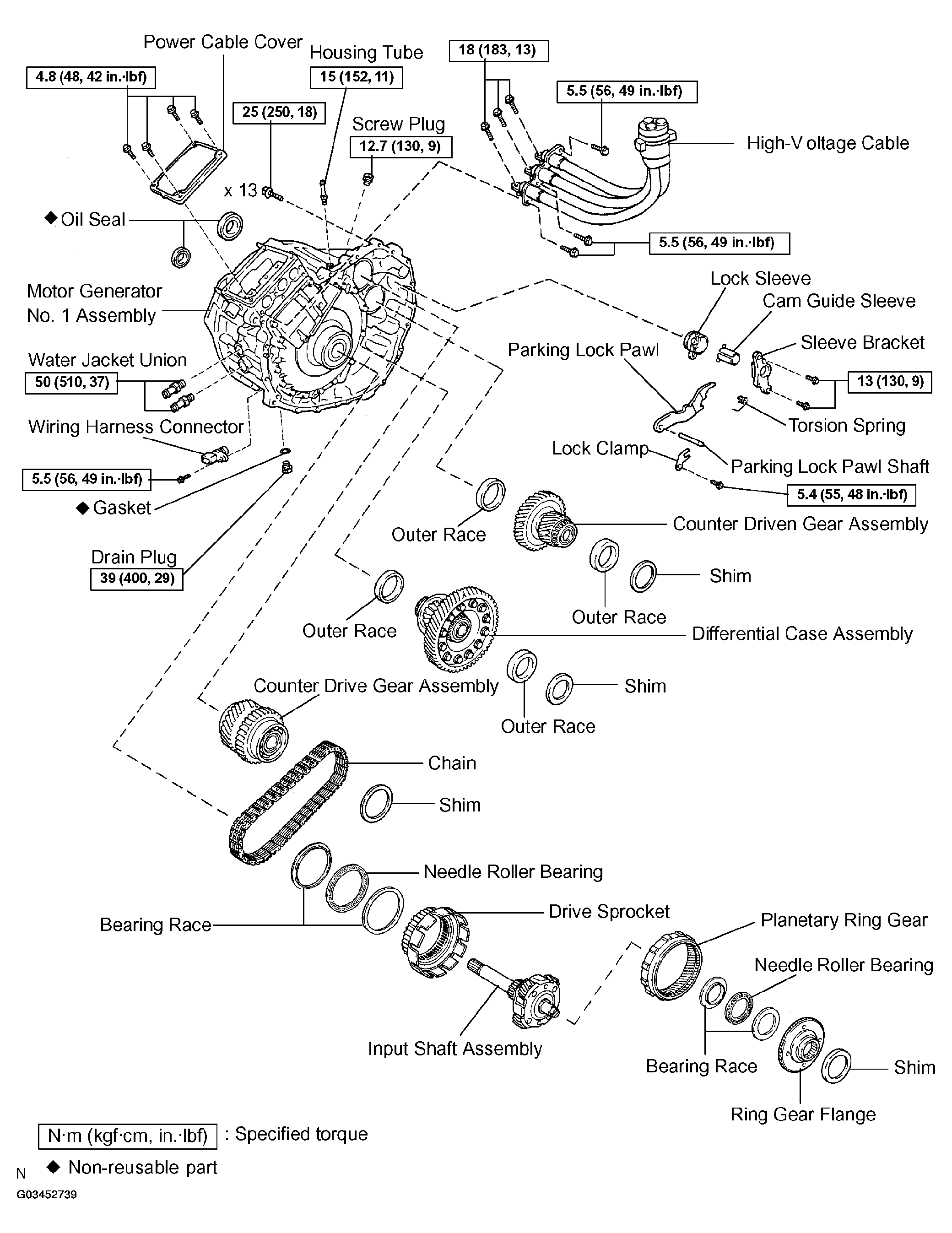

Fig 1: Exploded View Of Hybrid Transaxle Assembly Components (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

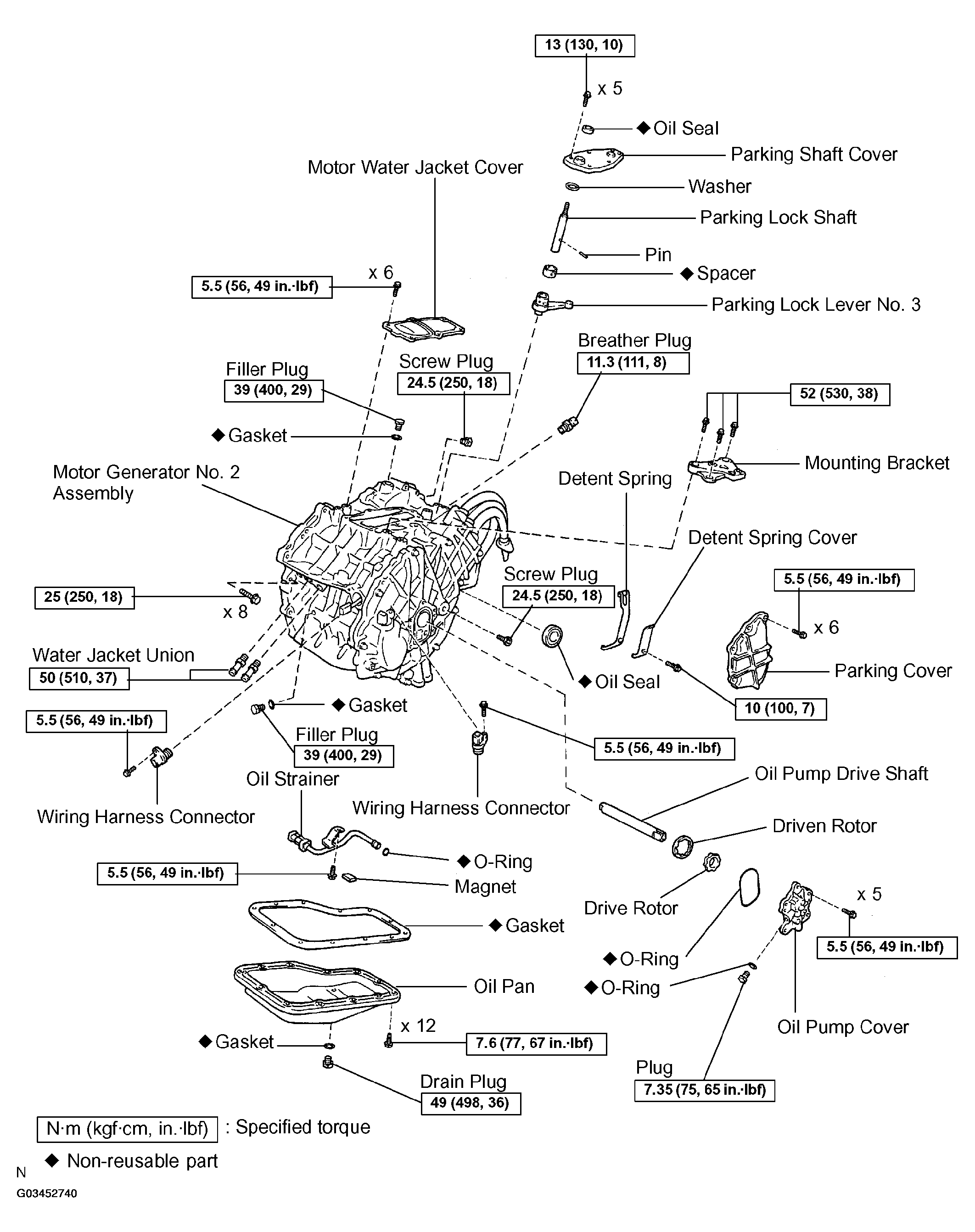

Fig 2: Exploded View Of Hybrid Transaxle Assembly Components (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
