Terminals Of Ecu

Disconnect connector "A" and "B" from the combination meter and inspect the connectors on the wire harness side.

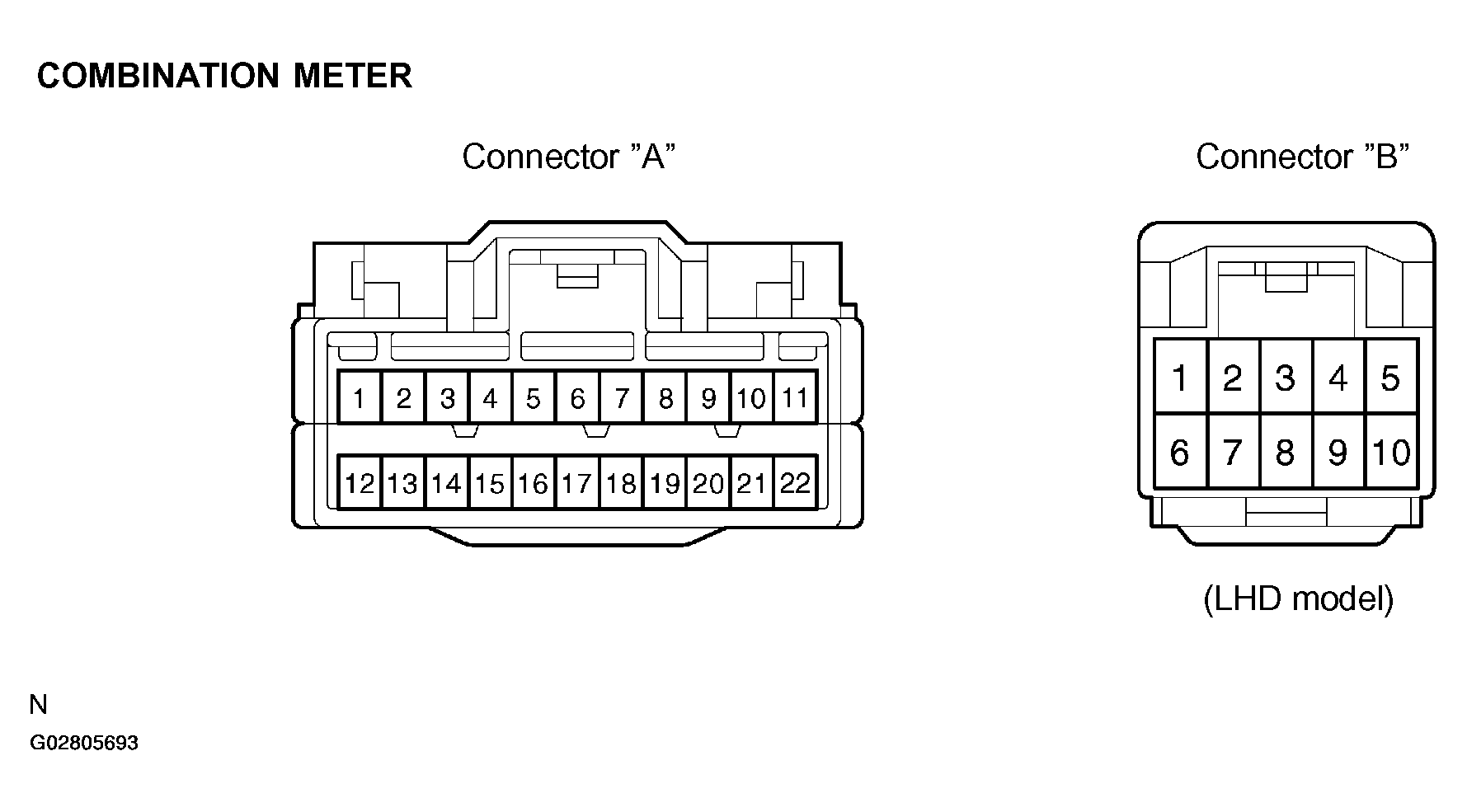

Fig 1: Identifying ECU Connector Terminal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

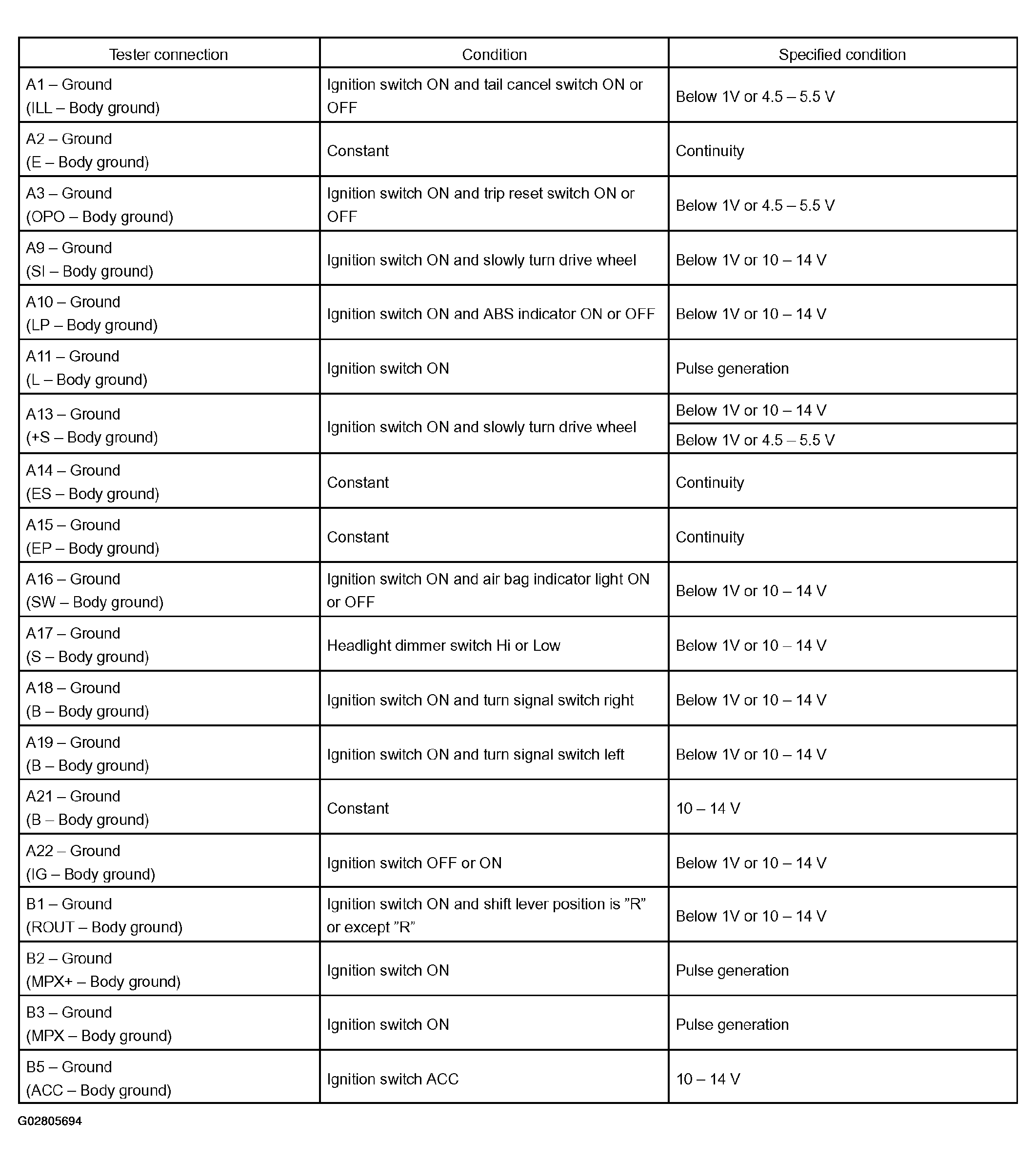

Fig 2: ECU Terminal Reference Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
