Park/Neutral Position Switch Circuit

WARNING: This page is about a different car, the 2002 Toyota Camry Solara. However, it is still accessible from the selected car via links, so may be relevant.

For Park/Neutral Position Switch Circuit testing procedure, see Fig 1-Fig 3 .

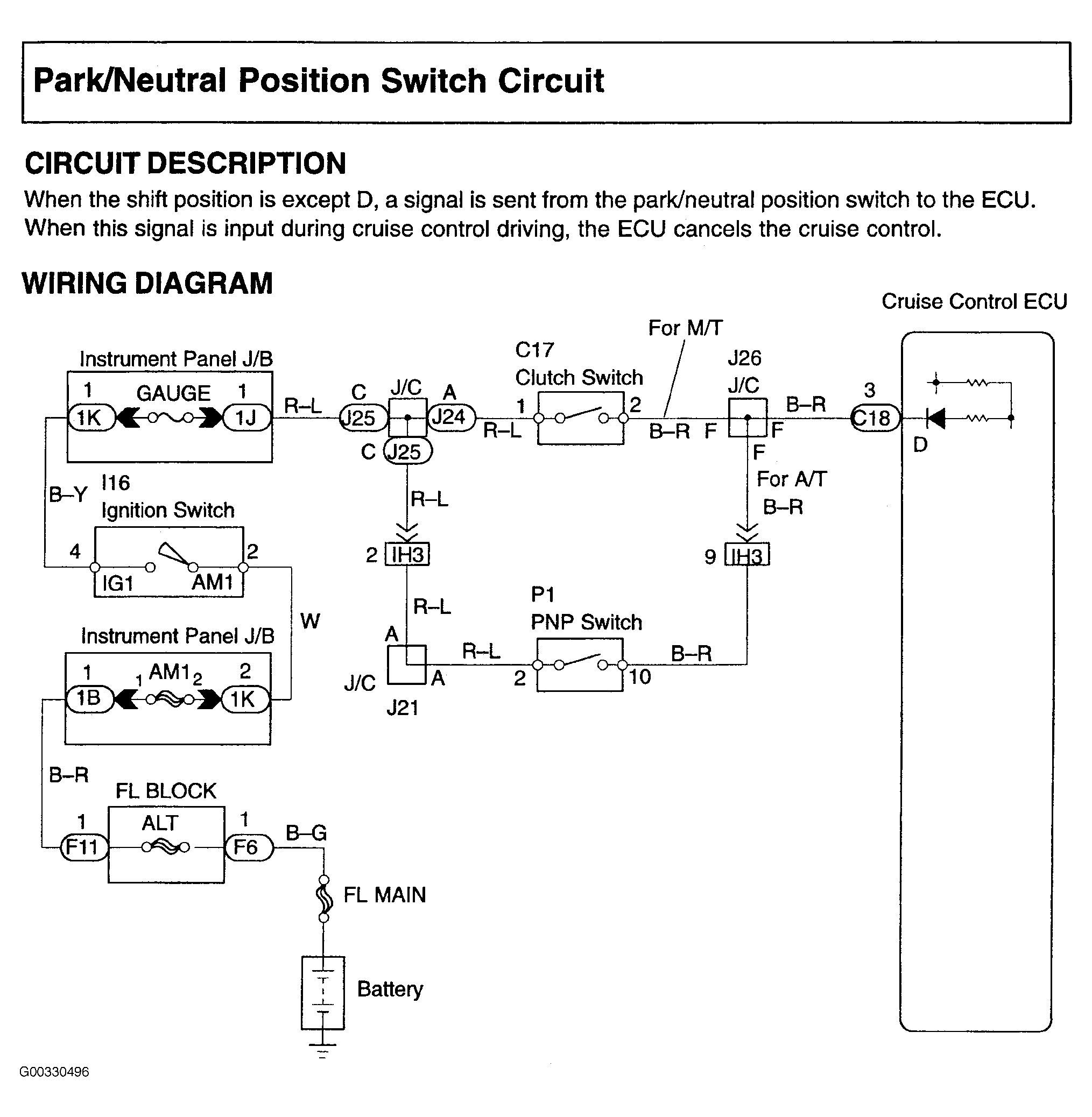

Fig 1: Testing Park/Neutral Position Switch Circuit

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

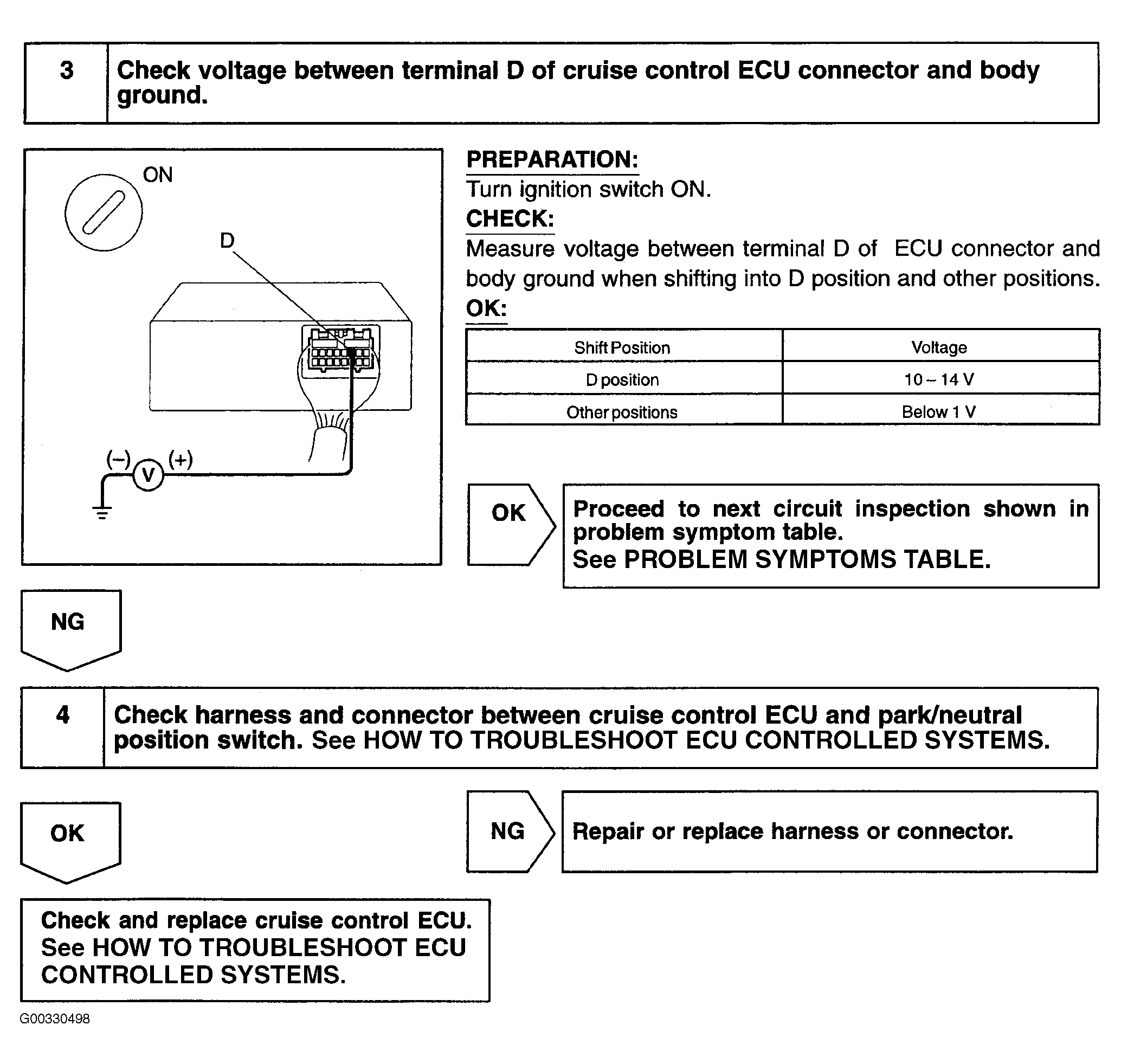

Fig 2: Testing Park/Neutral Position Switch Circuit

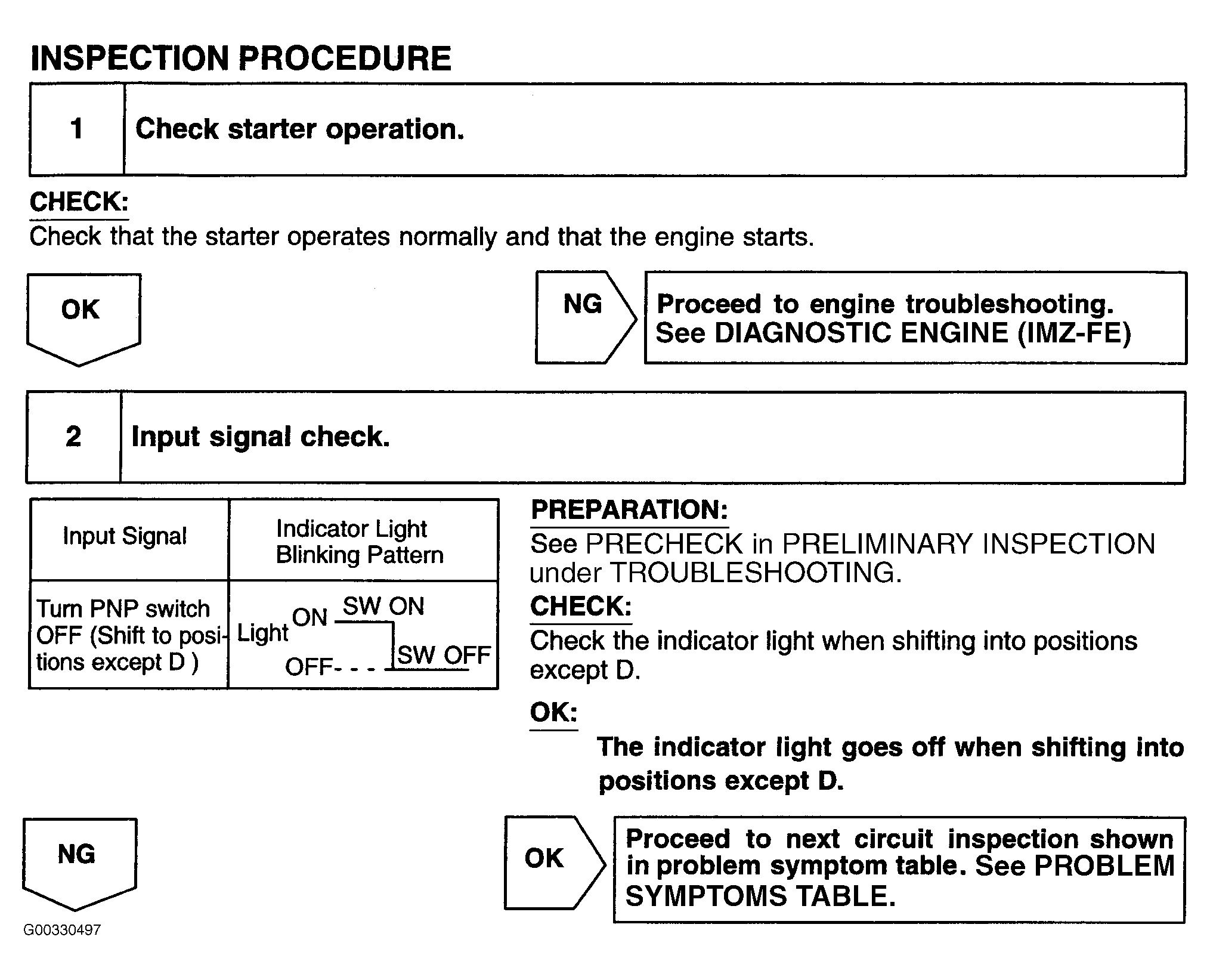

Fig 3: Testing Park/Neutral Position Switch Circuit
