Fuel Pressure Regulator Fuel Shutoff Valve (Camry CNG Models)
NOTE:
Fuel pressure regulator fuel shutoff valve may also be referred to as fuel shutoff valve (fuel pressure regulator).

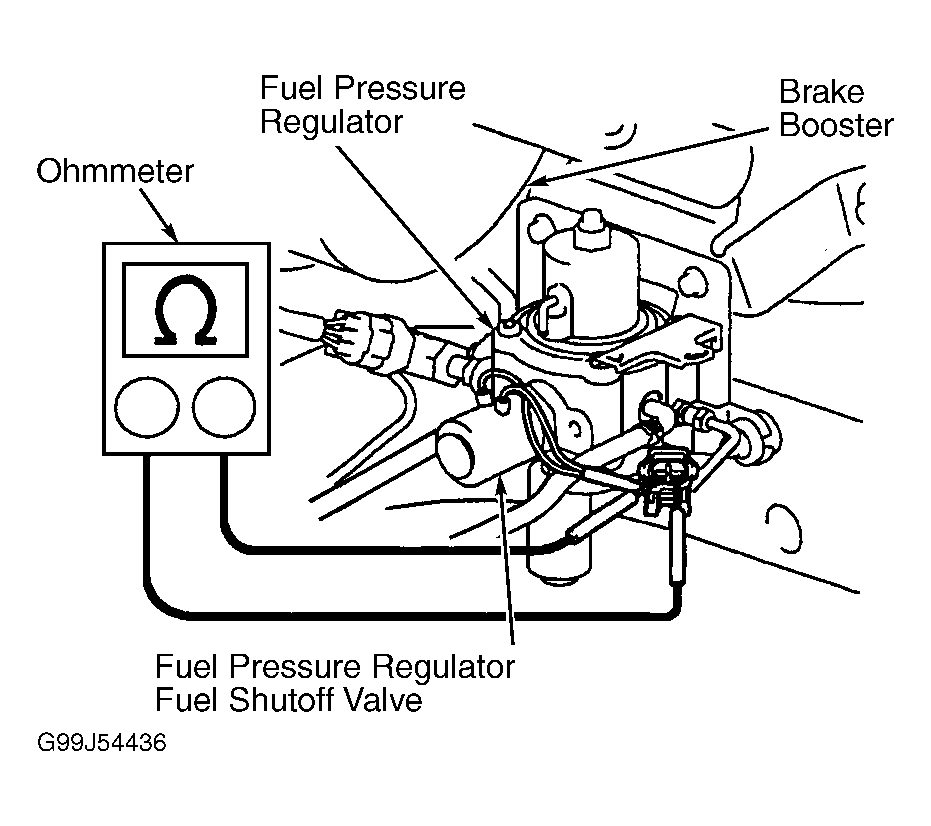

- Disconnect electrical connector at fuel pressure regulator fuel shutoff valve. Fuel pressure regulator fuel shutoff valve is located on fuel pressure regulator located in fuel line between fuel tank and fuel rail, just below brake booster. See Fig 1.
- Using ohmmeter, check between electrical terminals on electrical connector for fuel pressure regulator fuel shutoff valve. See Fig 1. Replace fuel pressure regulator fuel shutoff valve if resistance is not 1.4-1.8 ohms at 68°F (20°C).
