Engine Torque

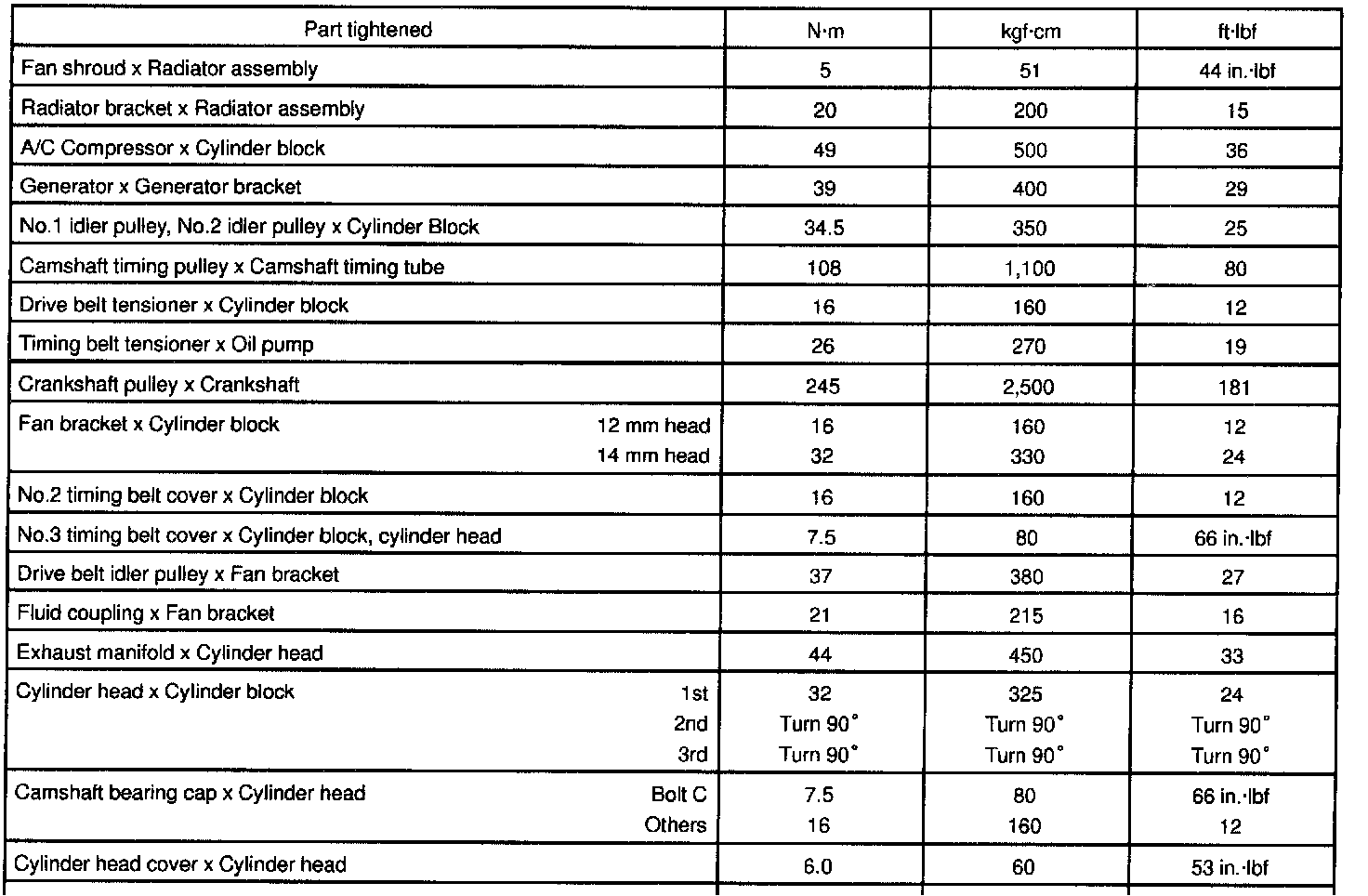

2UZ-FE Engine Mechanical Torque:

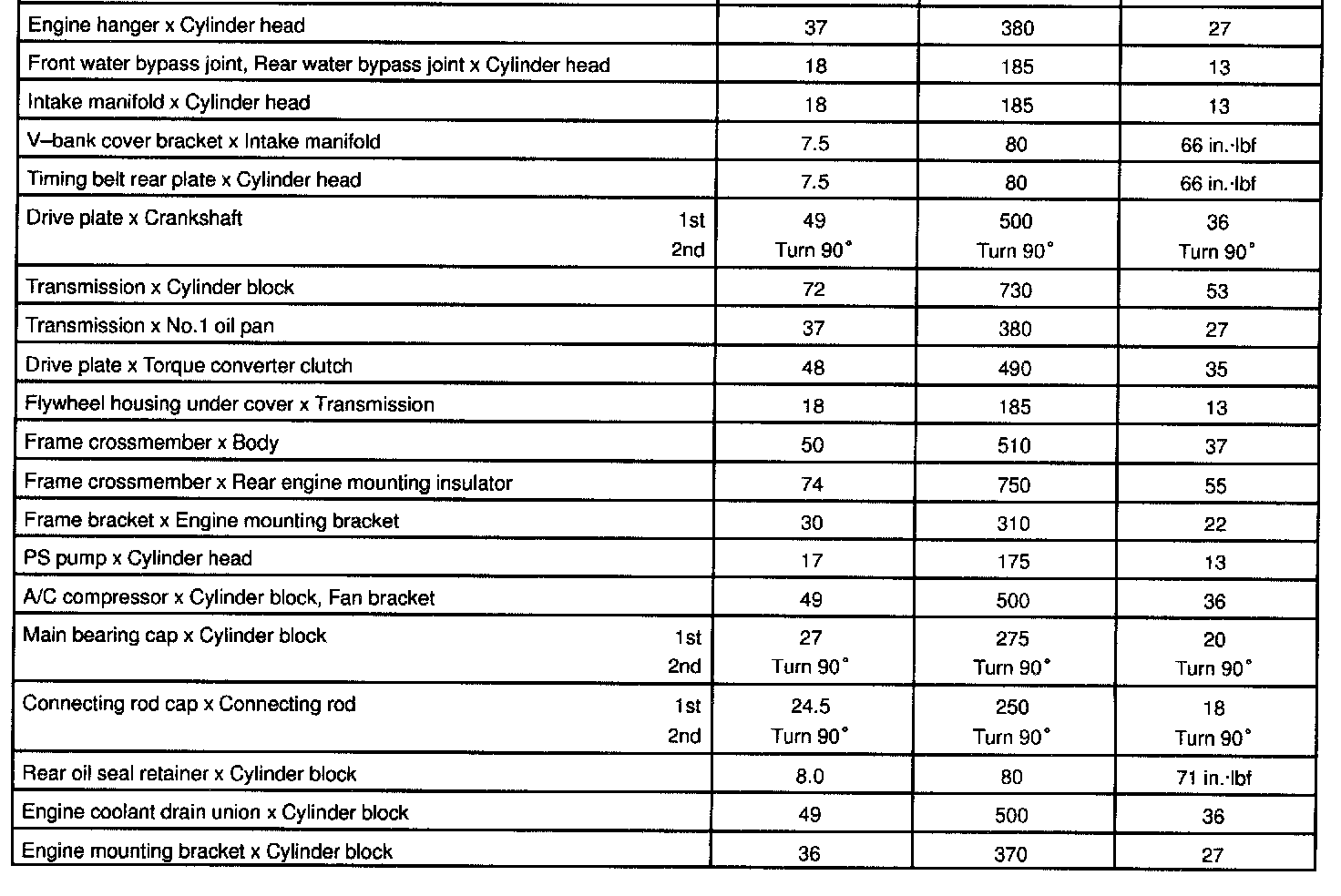

2UZ-FE Engine Torque Cont.:





2UZ-FE Engine Torque Cont.:

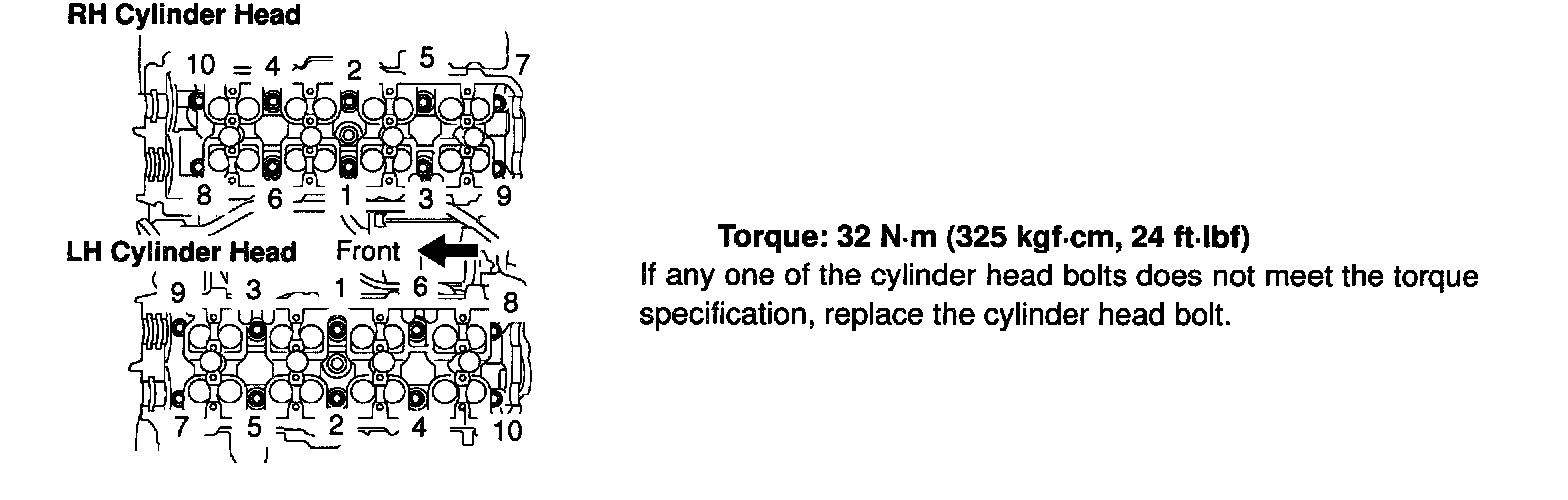

2UZ-FE Cylinder Head Torque & Sequence:

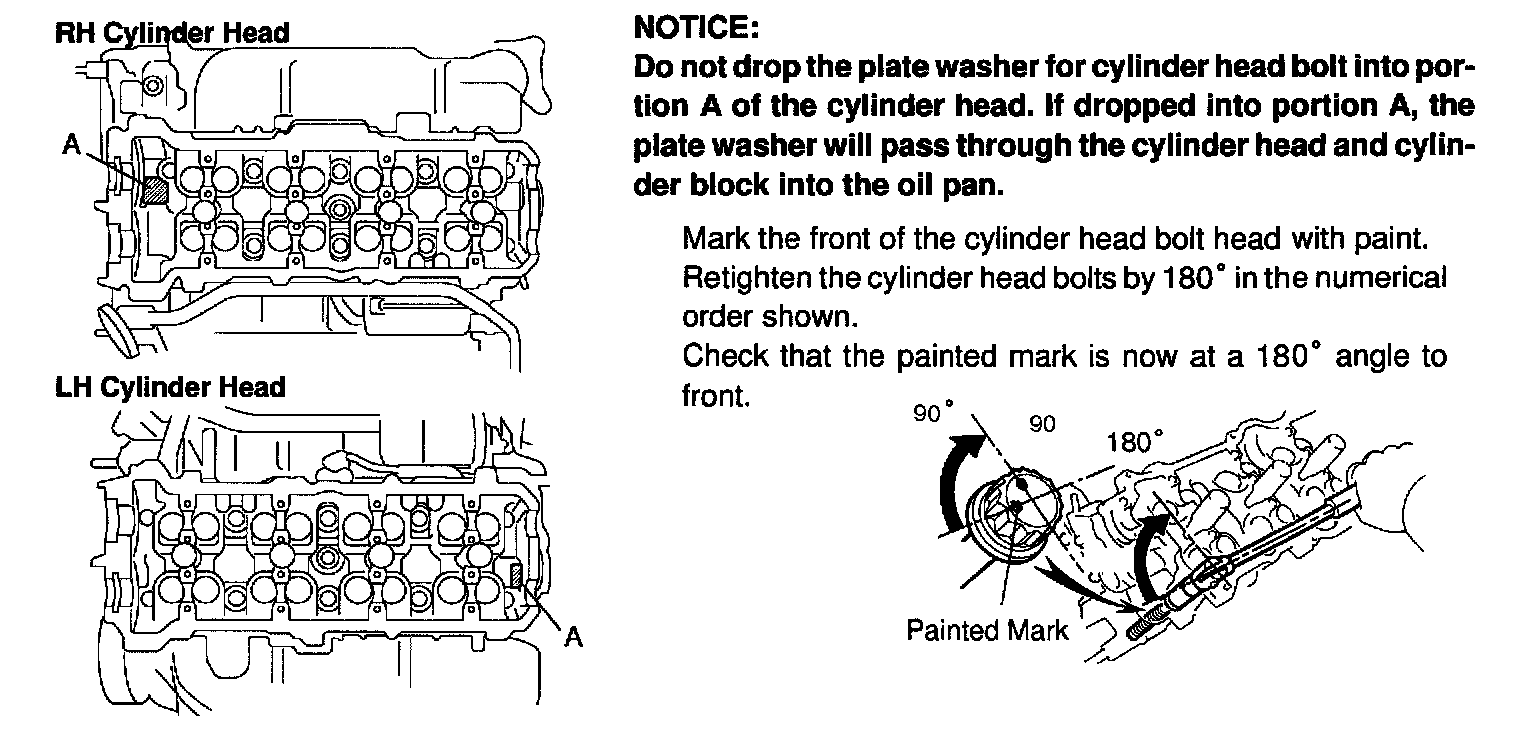

2UZ-FE Cylinder Head Torque & Sequence Cont.:
