Ground Locations

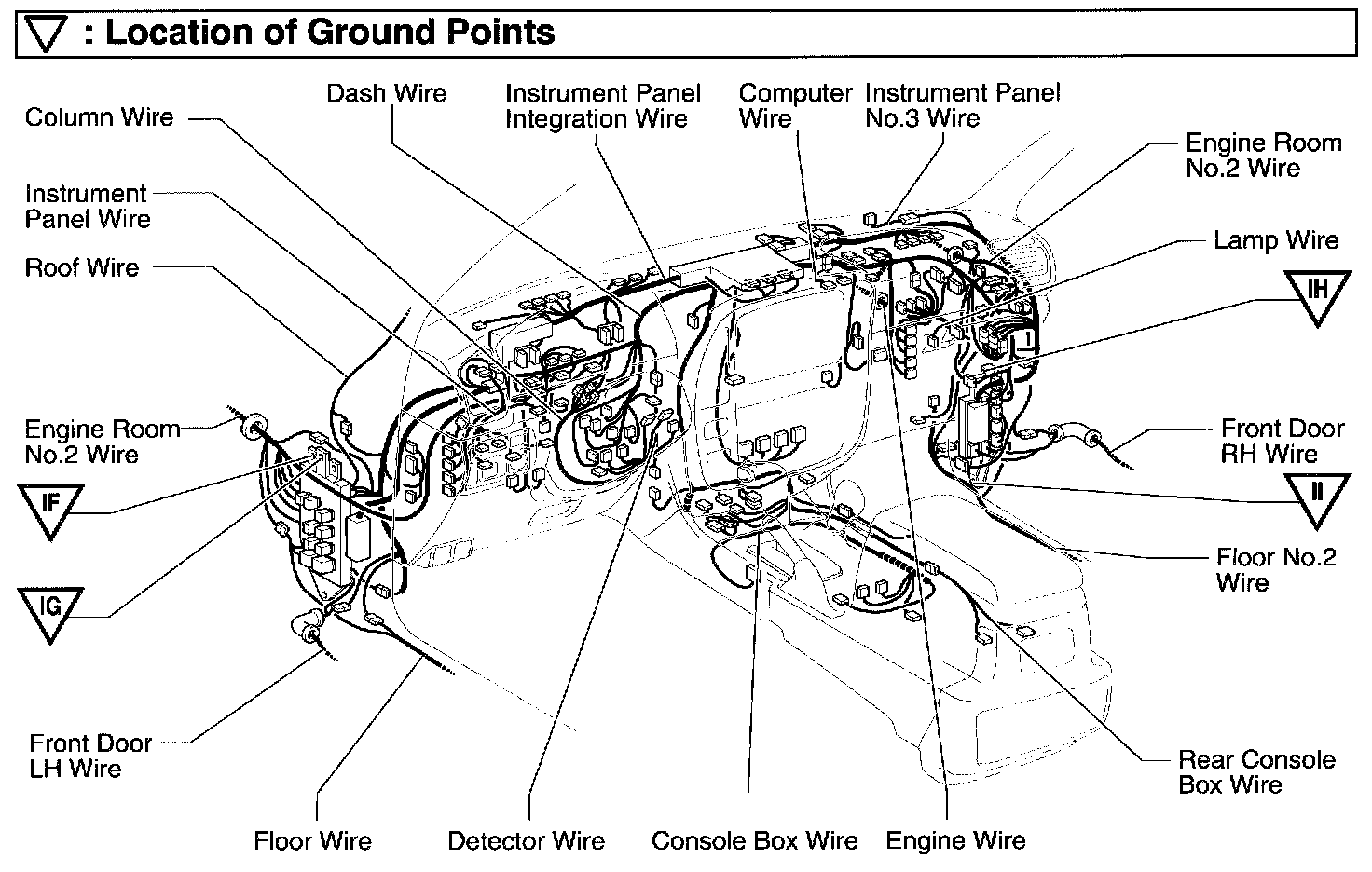

Fig 46a - Location Of Ground Points:

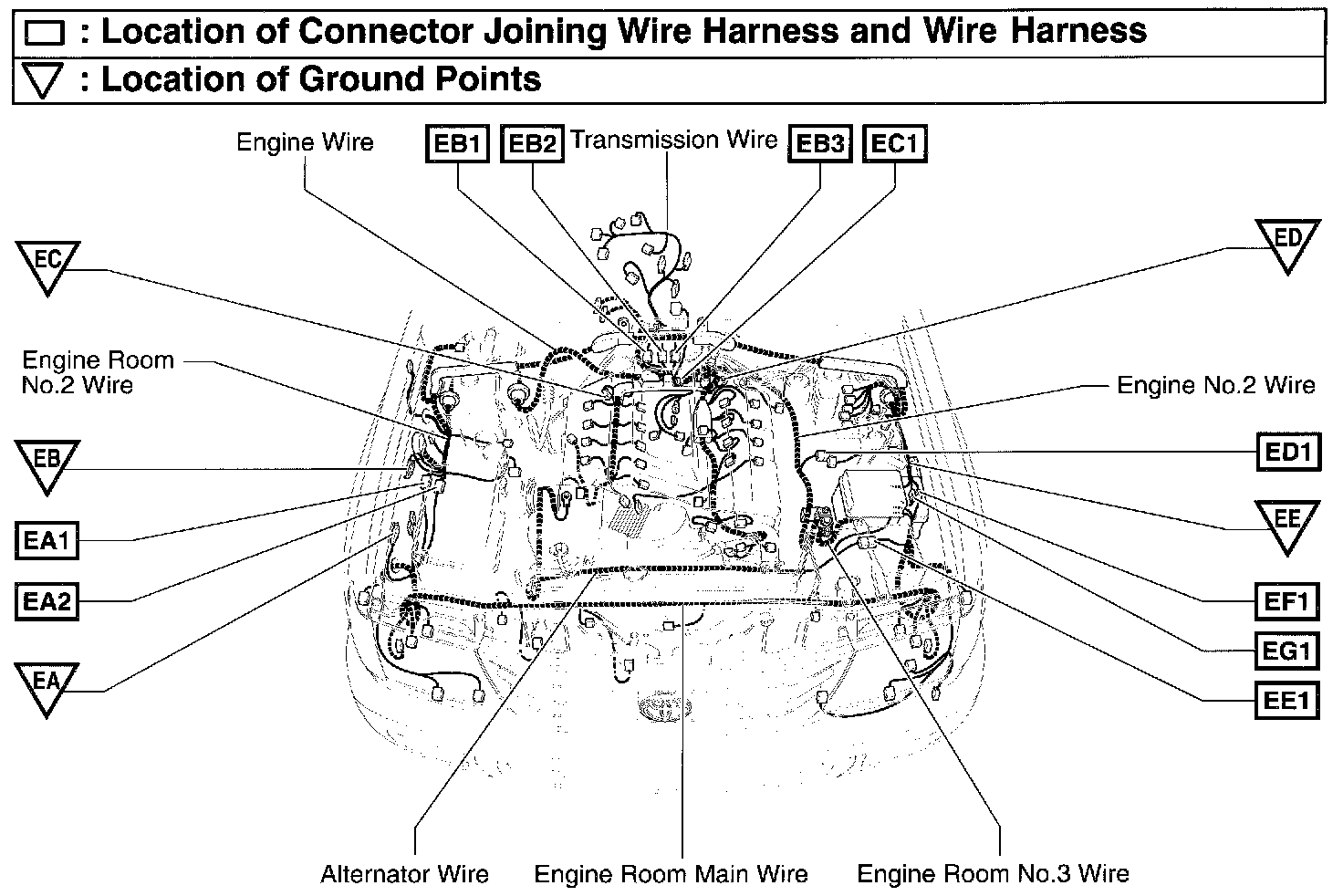

Fig 48b - Location Of Ground Points:



Ground Points:
