System Diagram

ENGINE UNIT REPLACEMENT W/ RELATED COMPONENTS

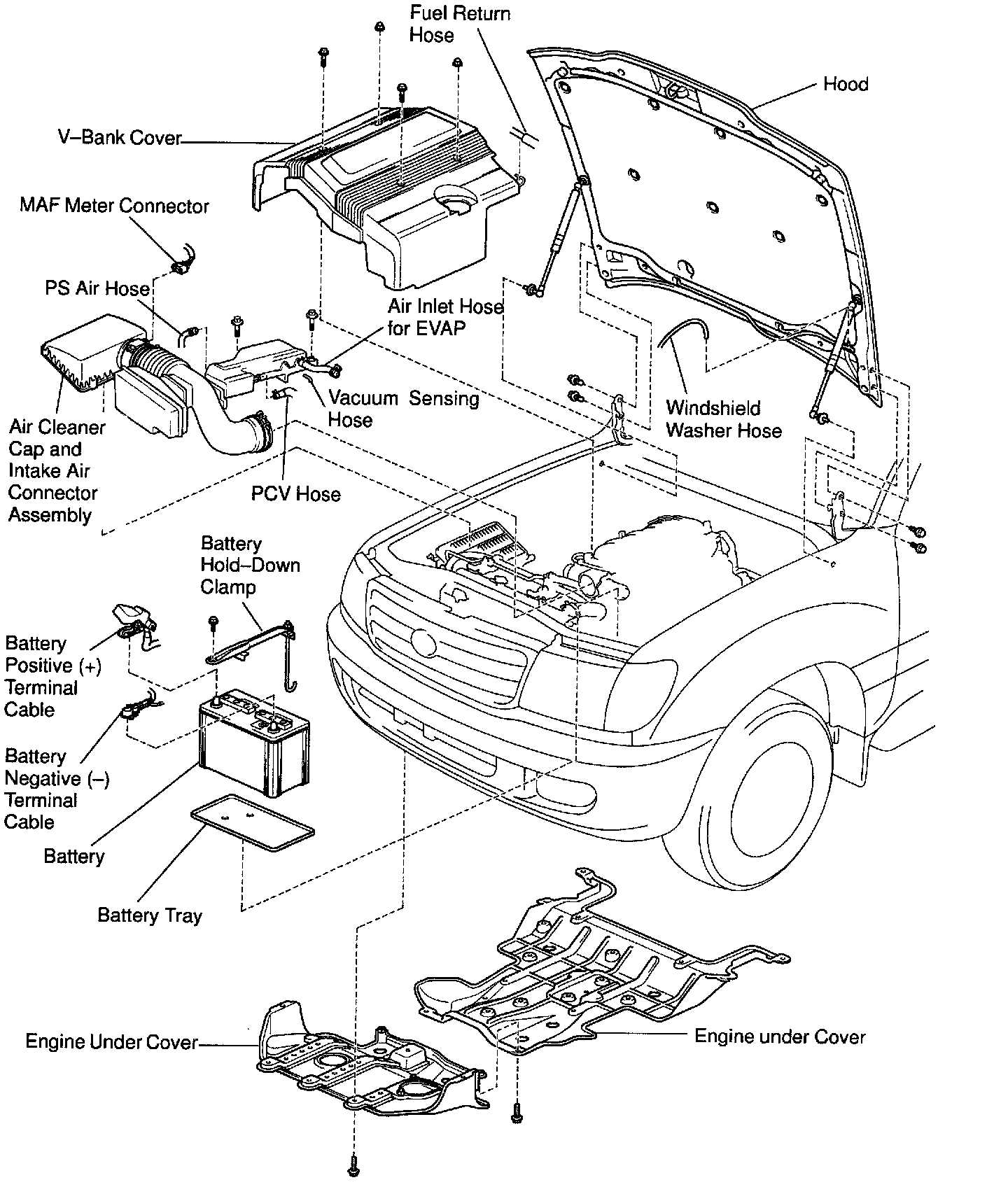

Hood, Battery, Air Cleaner Assb., V-Bank Cover:

Part 1 of 7

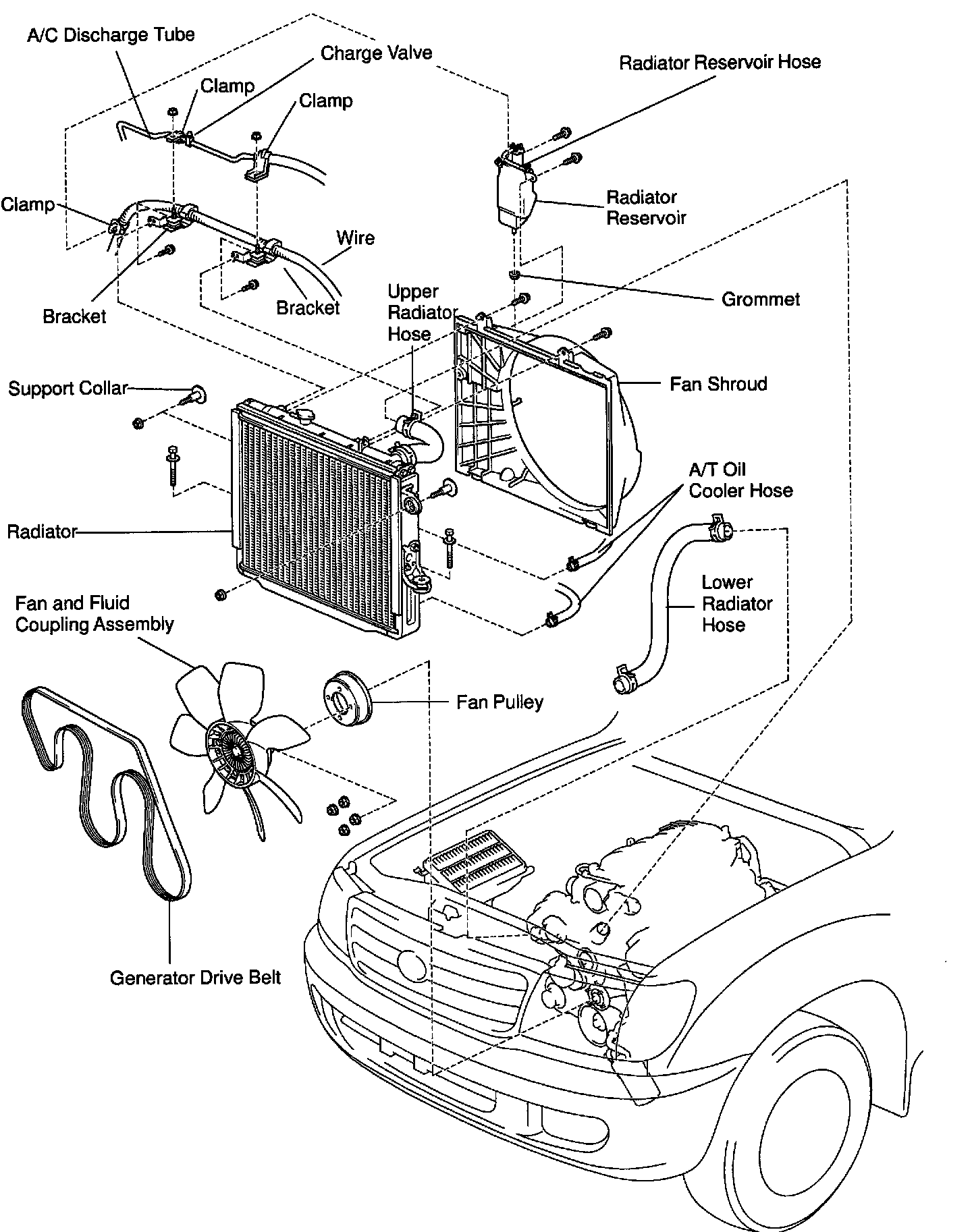

Radiator, Fan, Shroud, And Various Components:

Part 2 of 7

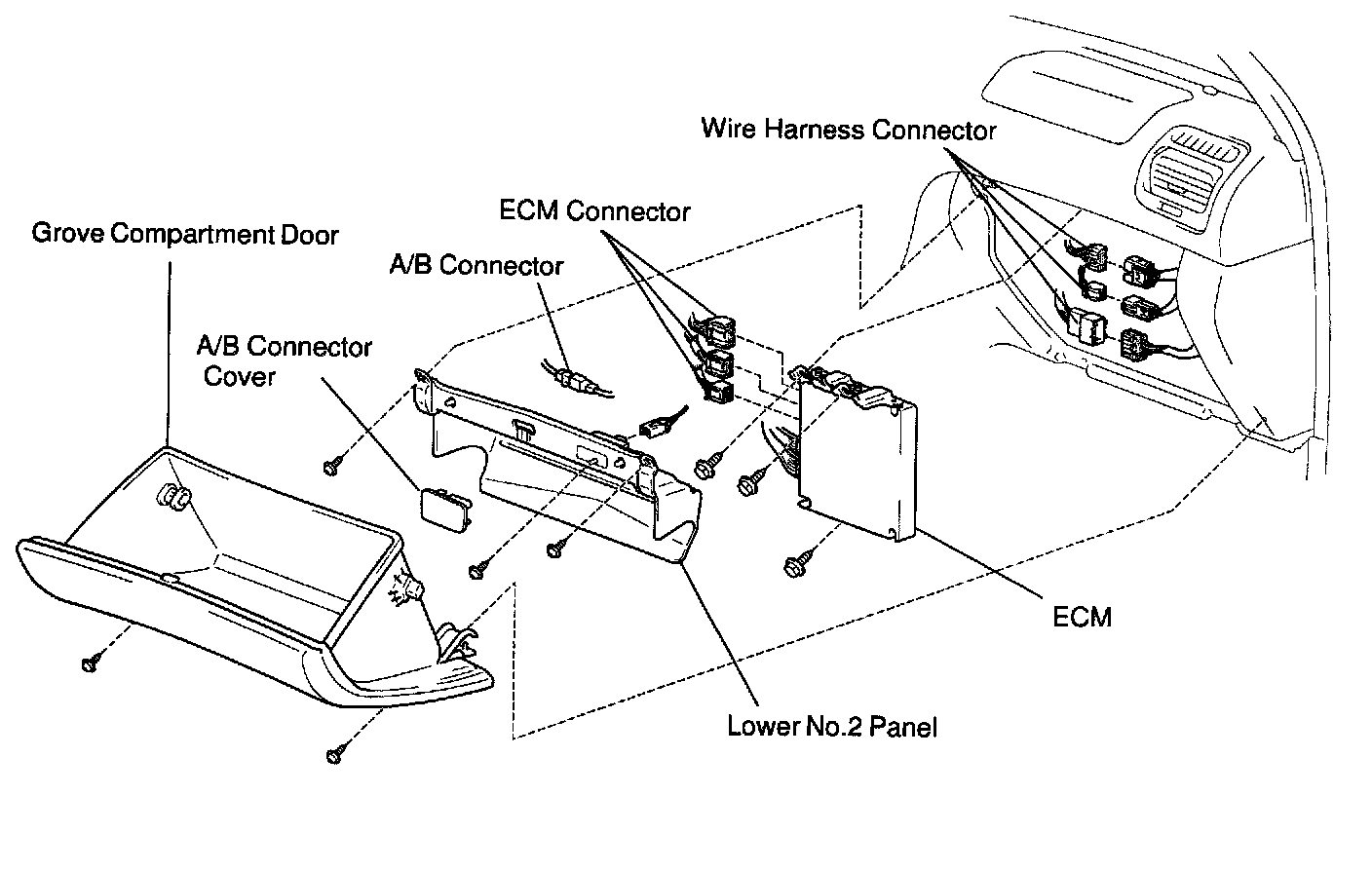

ECM (Passenger Compartment):

Part 3 of 7

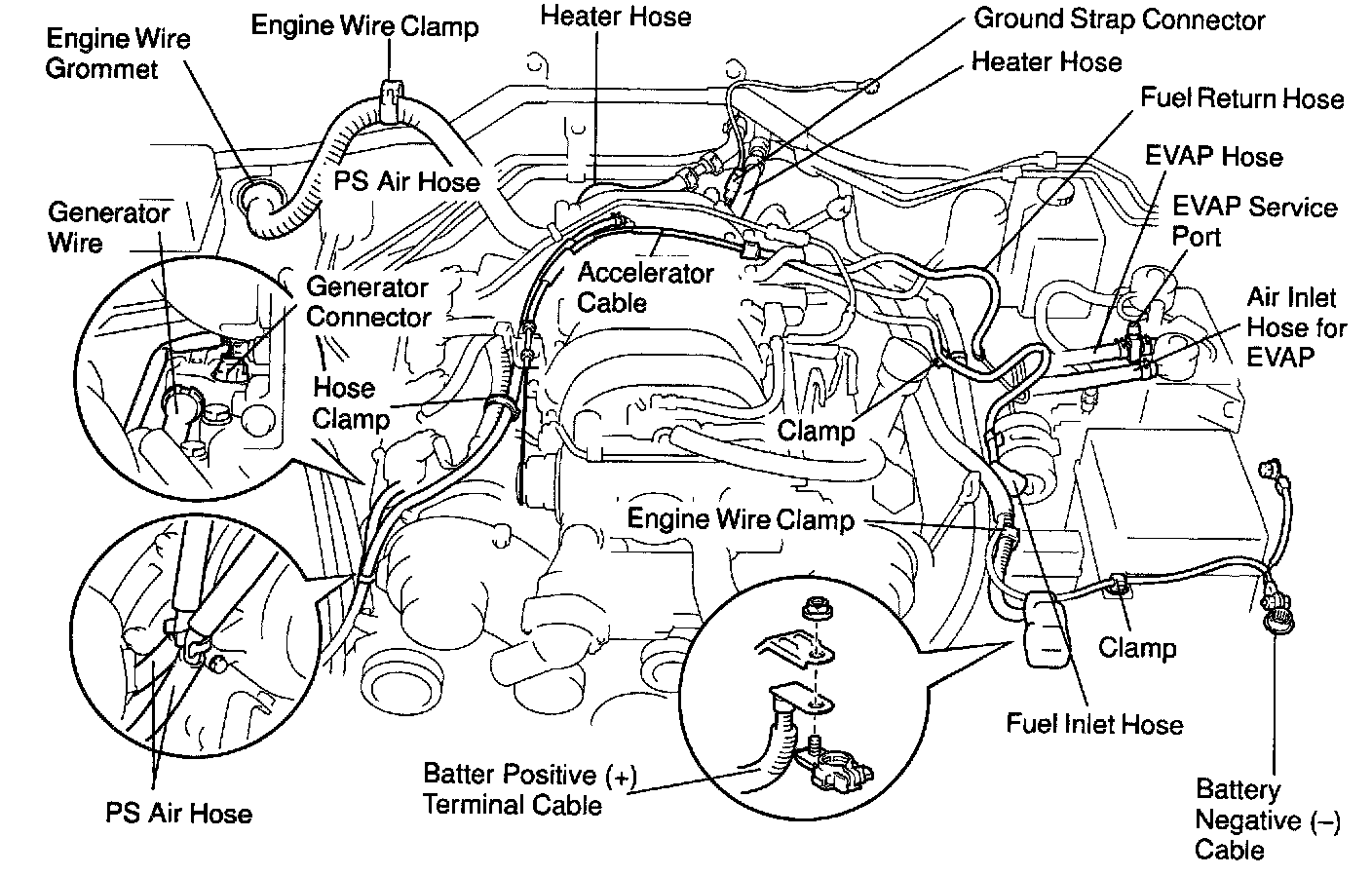

Battery Cables And Various Hoses:

Part 4 of 7

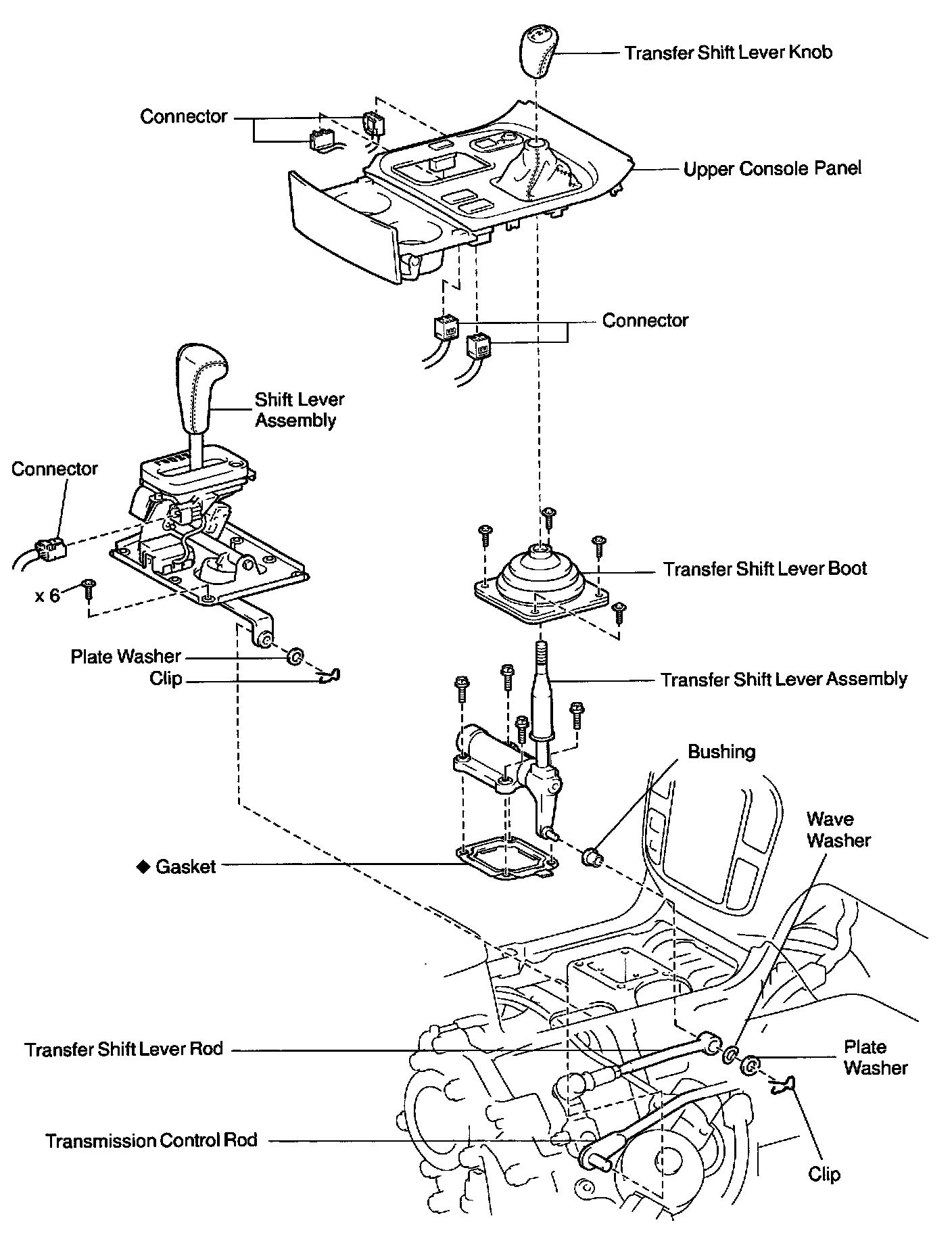

Shift Lever Assb. And Related Components:

Part 5 of 7

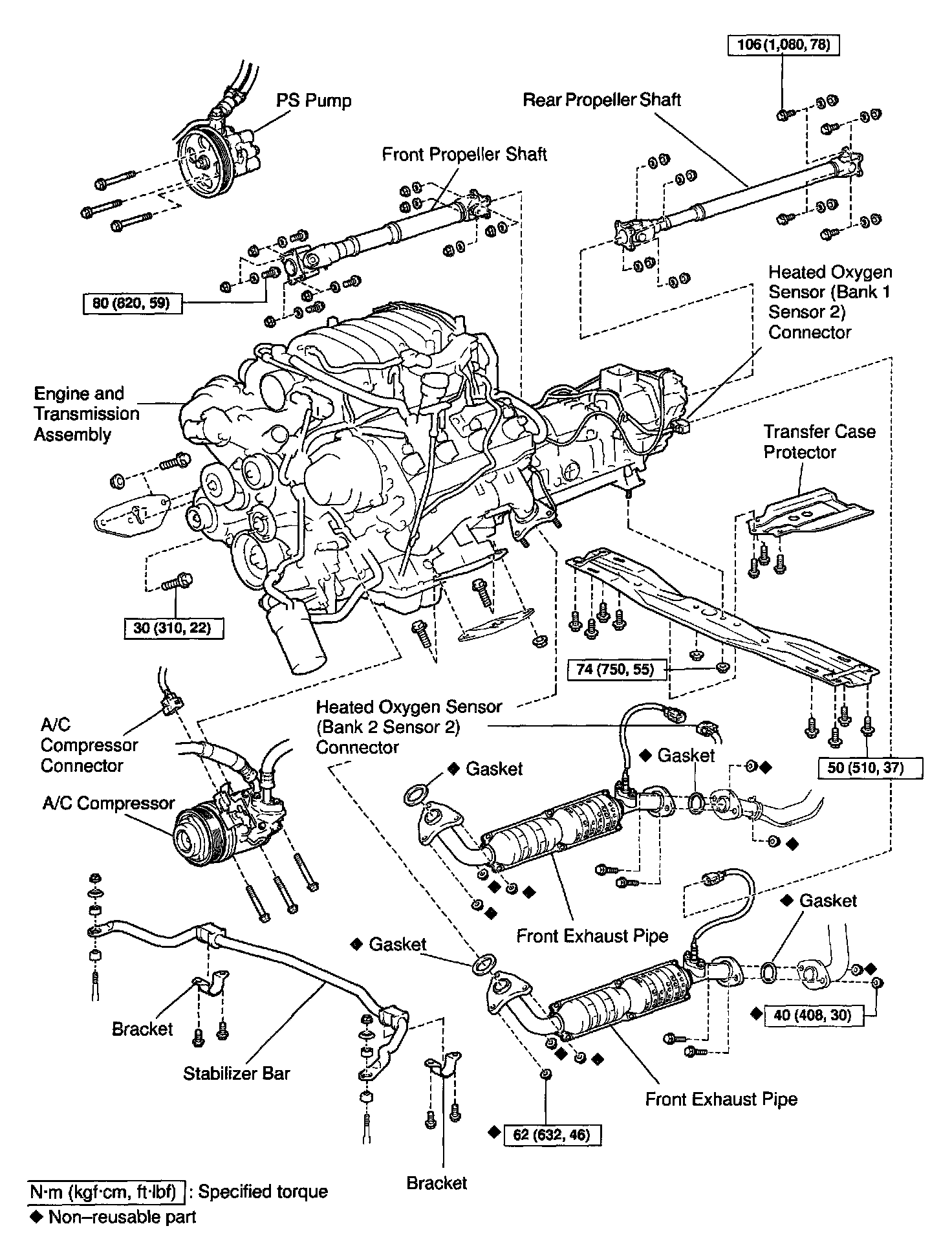

Drive Shafts, Crossmember, Front Exhaust Pipes, And Sway Bar:

Part 6 of 7

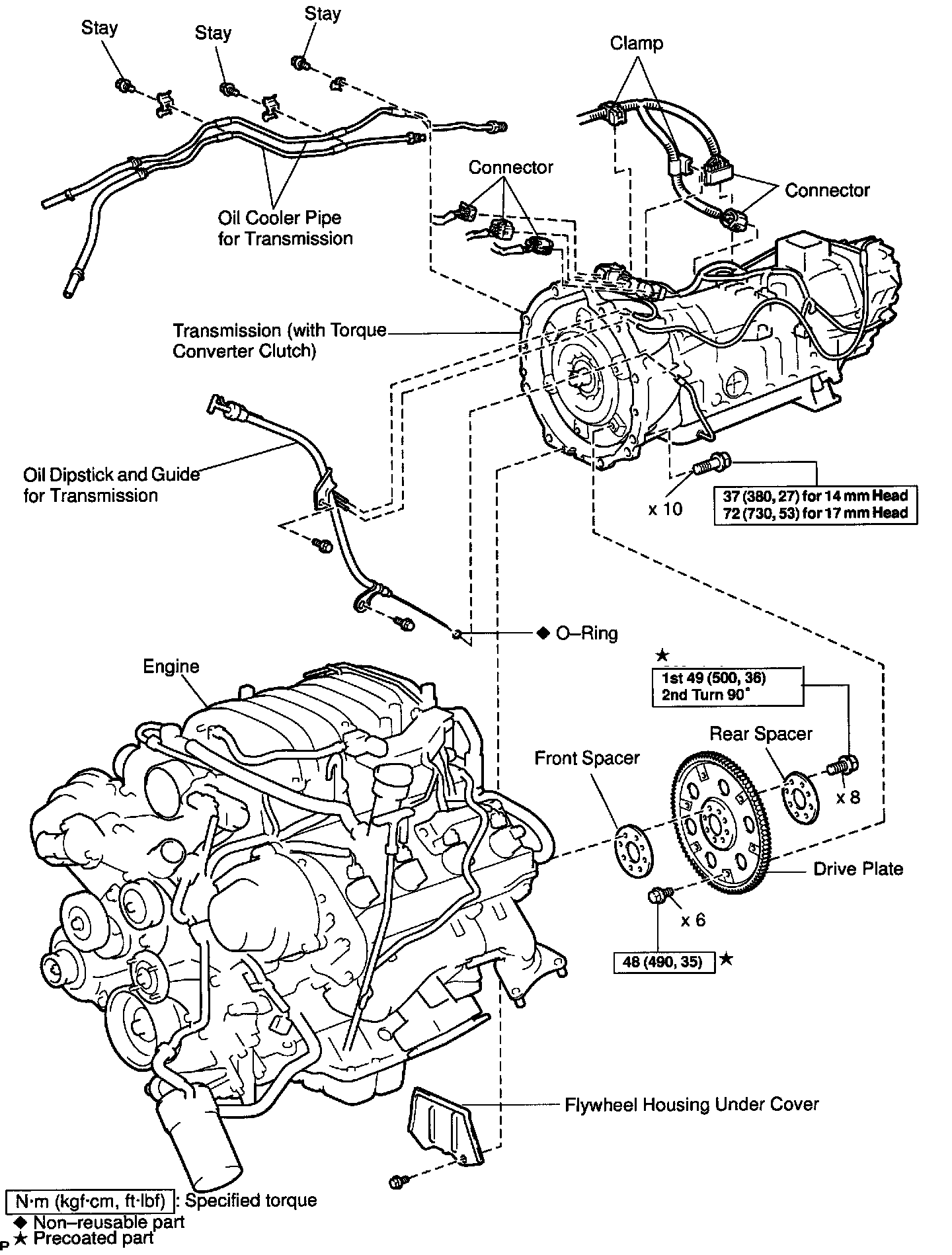

Engine And Transmission:

Part 7 of 7
