Standard Bolt and Nut Identification

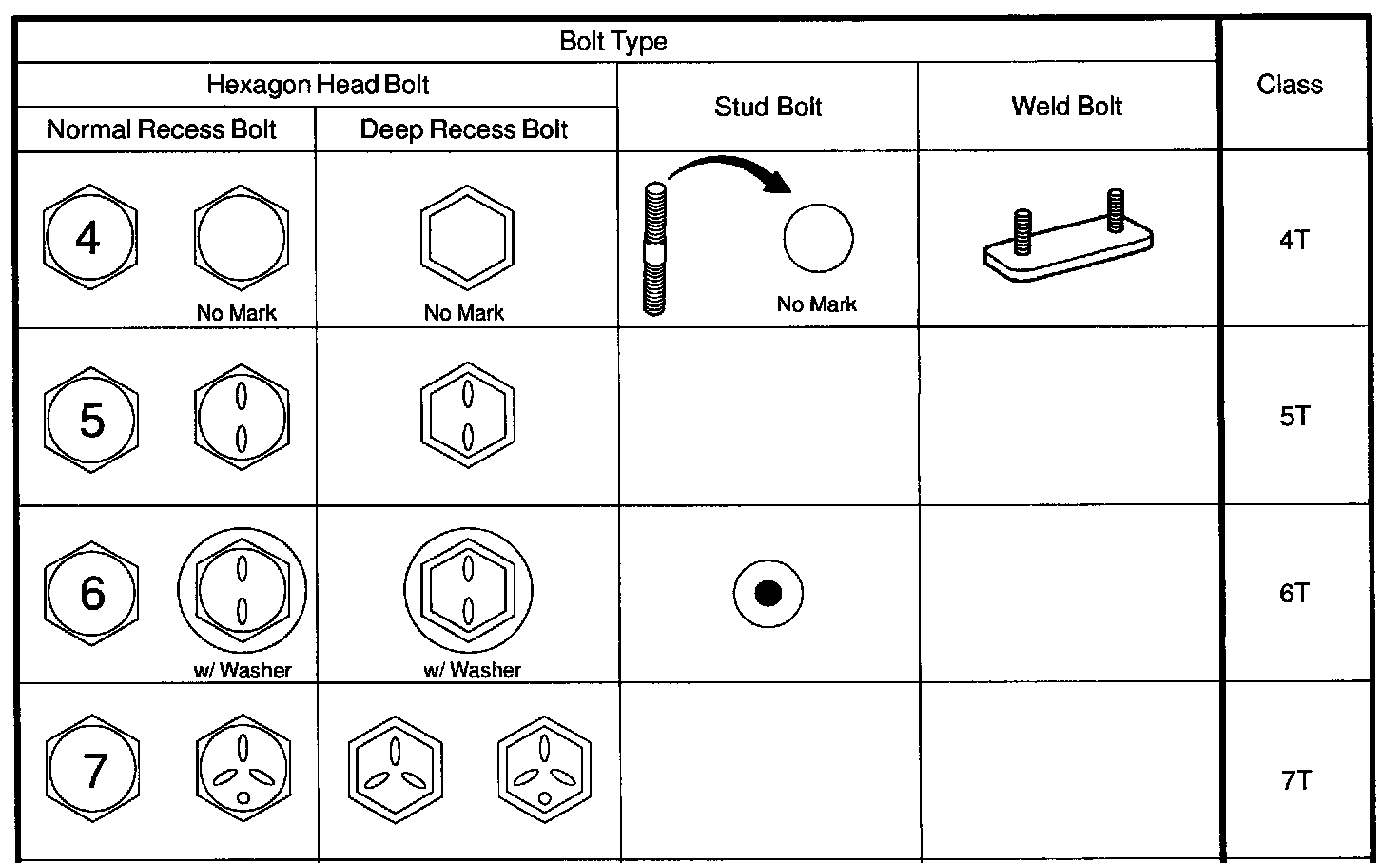

Standard Bolt Type Chart:




Standard Bolt Type Chart Cont.:





Standard Bolt Torque:




Standard Bolt Torque Cont.:

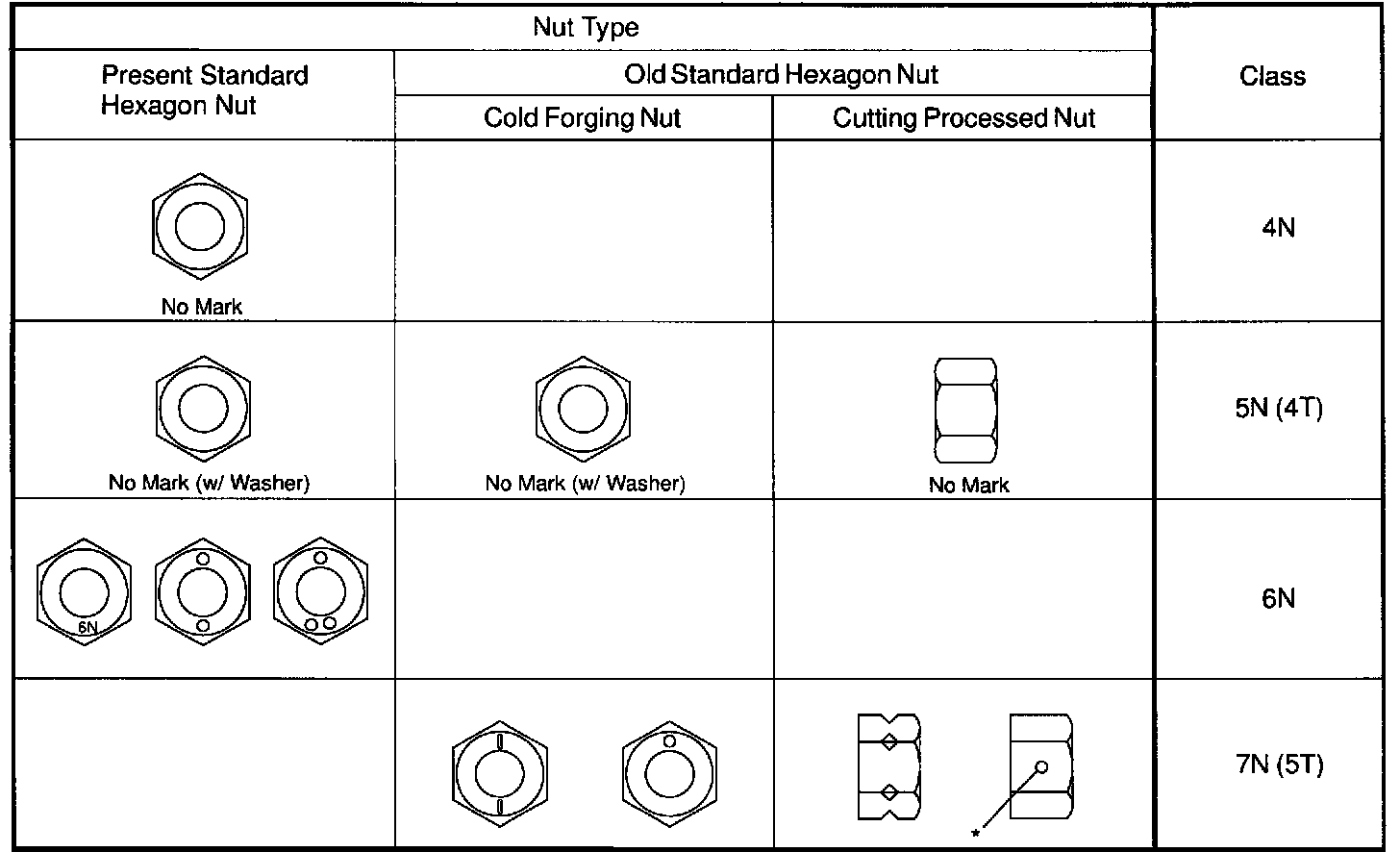

Standard Nut Type Chart:

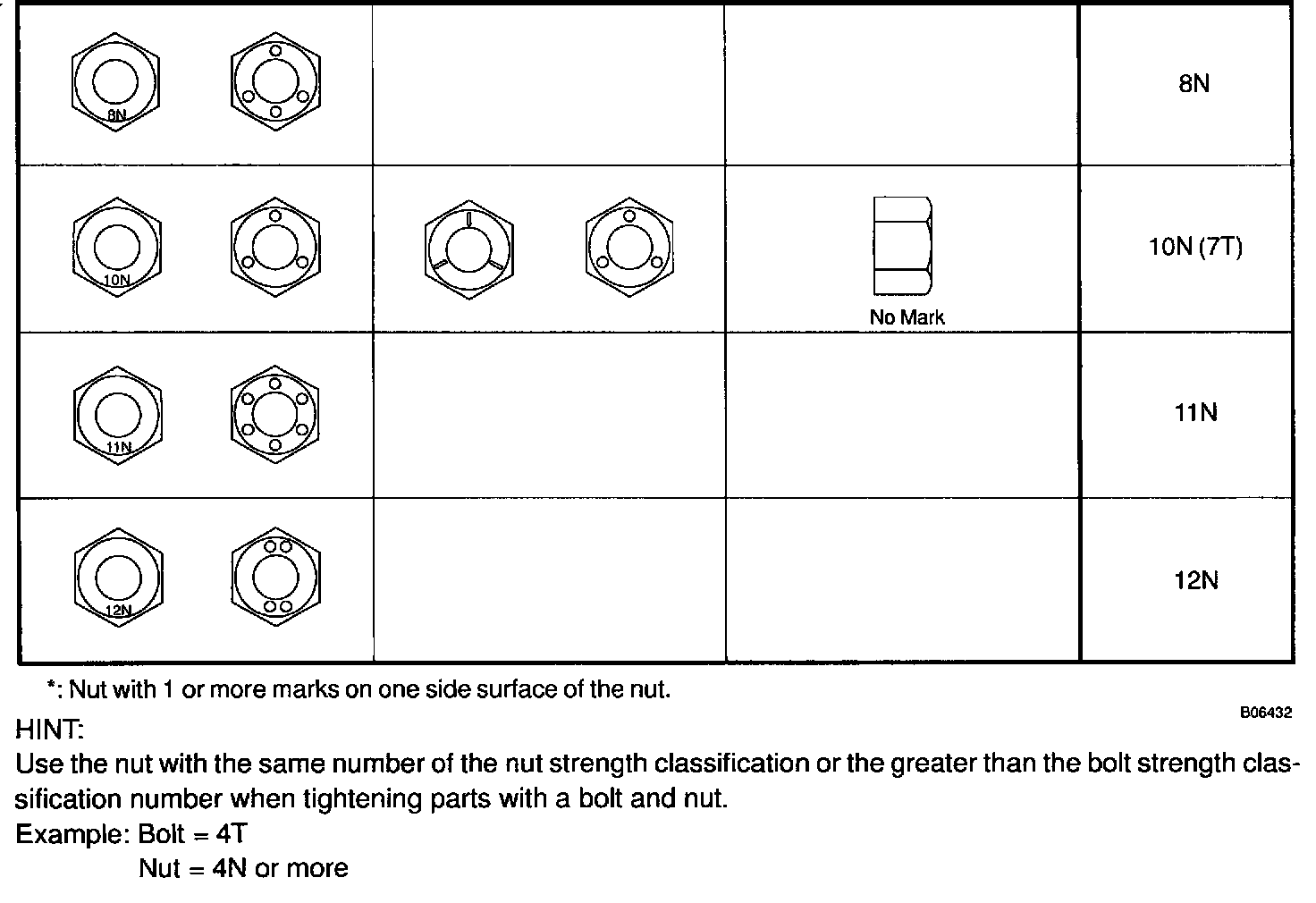

Standard Nut Chart Cont.:
