Engine Service Data

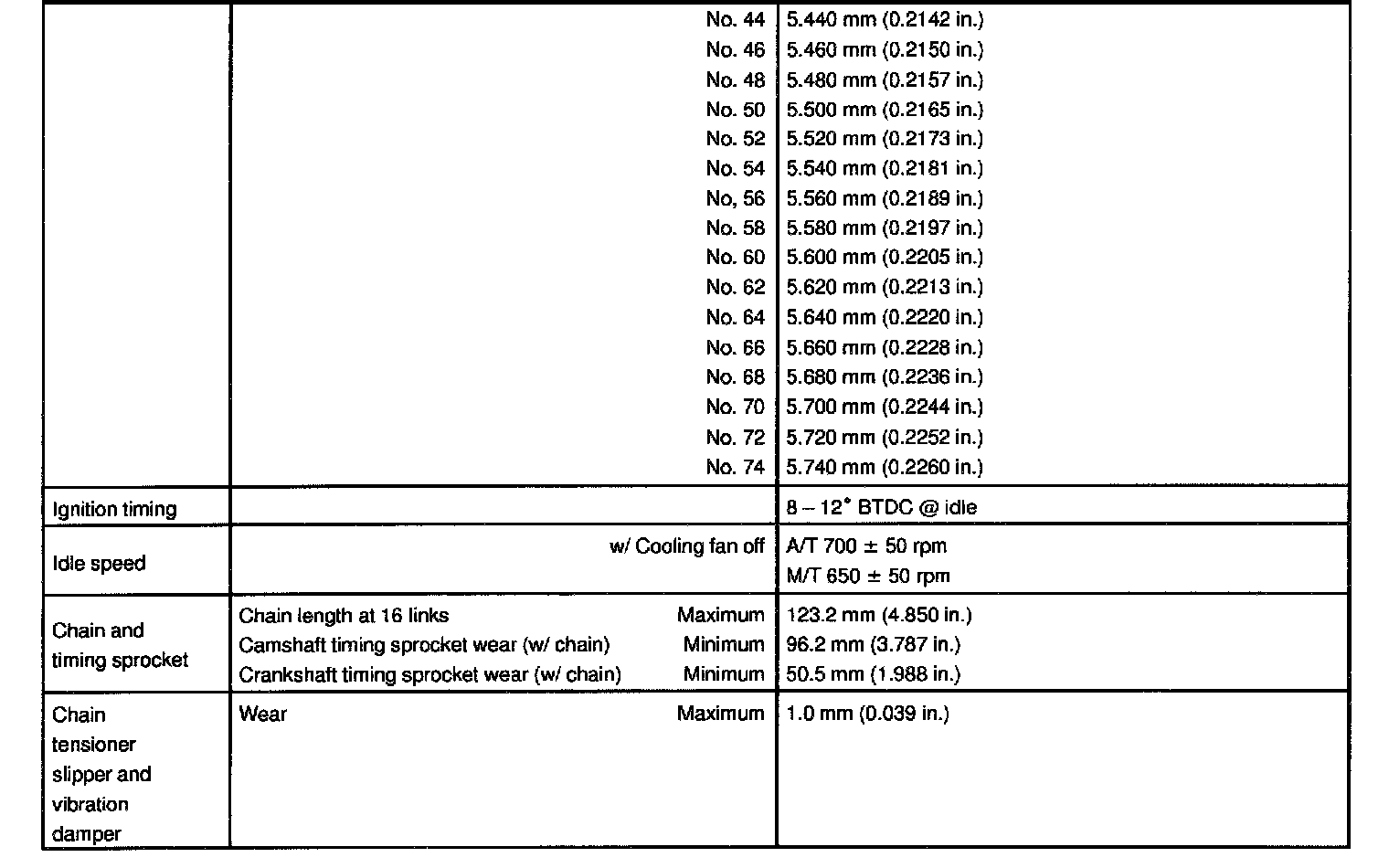

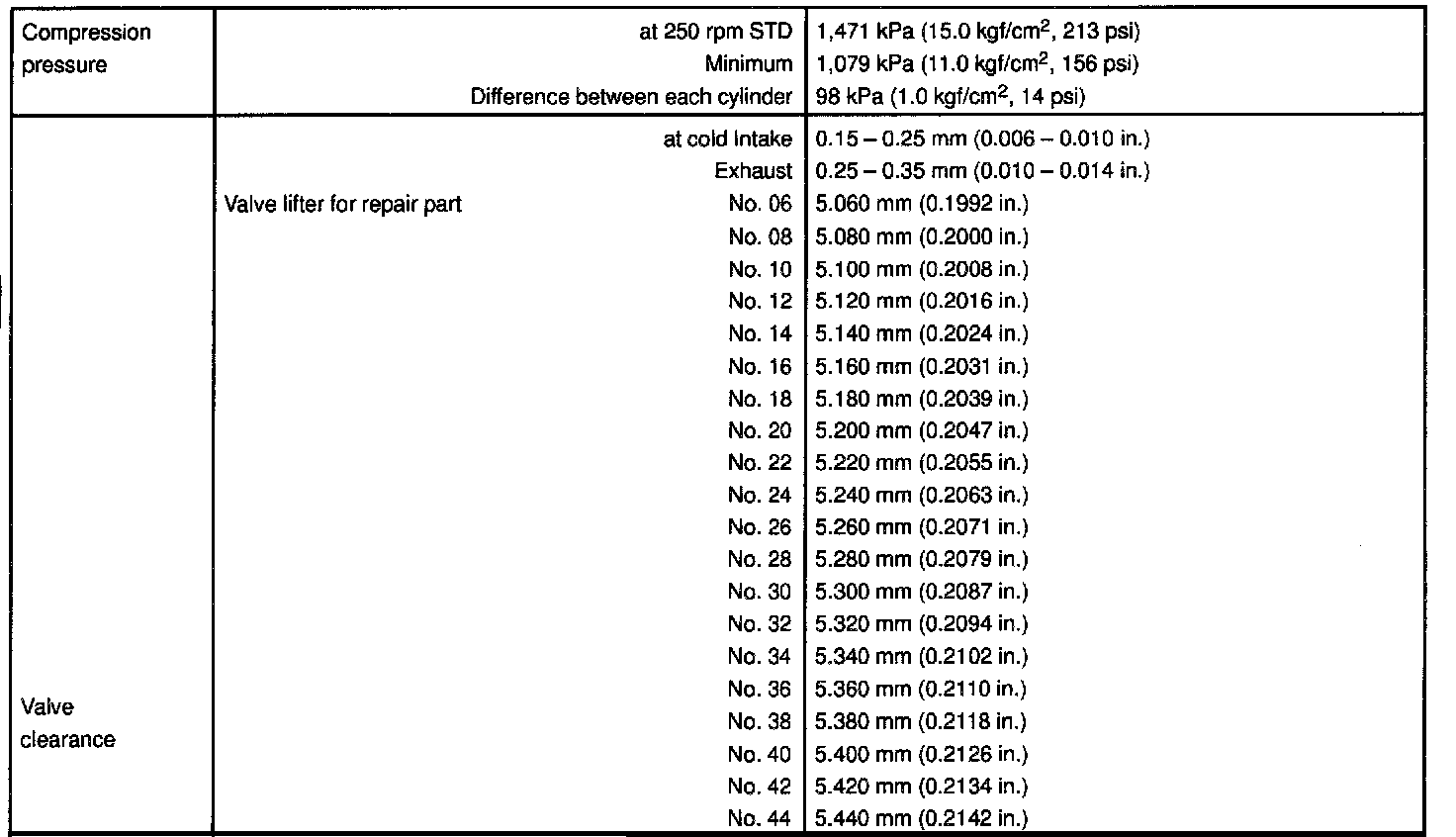

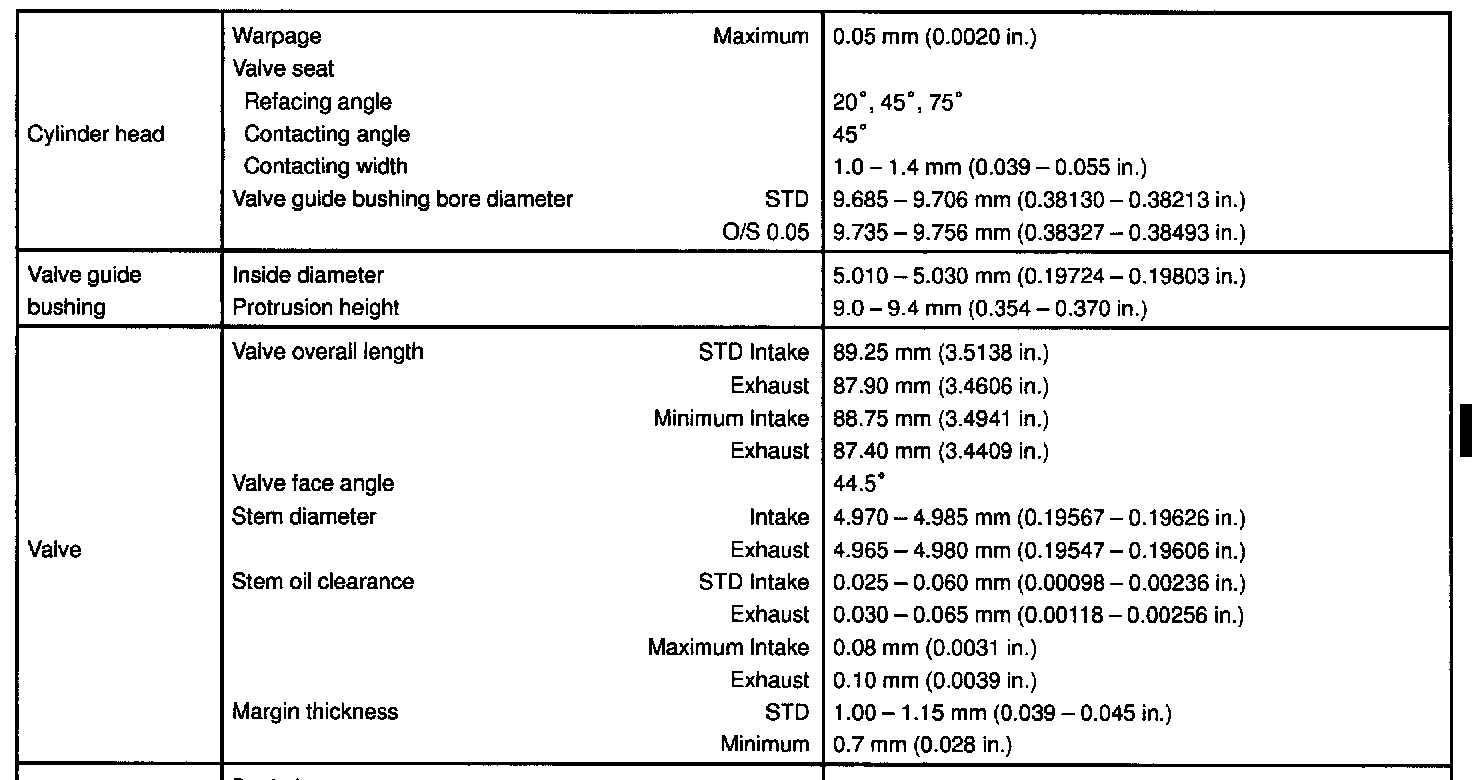

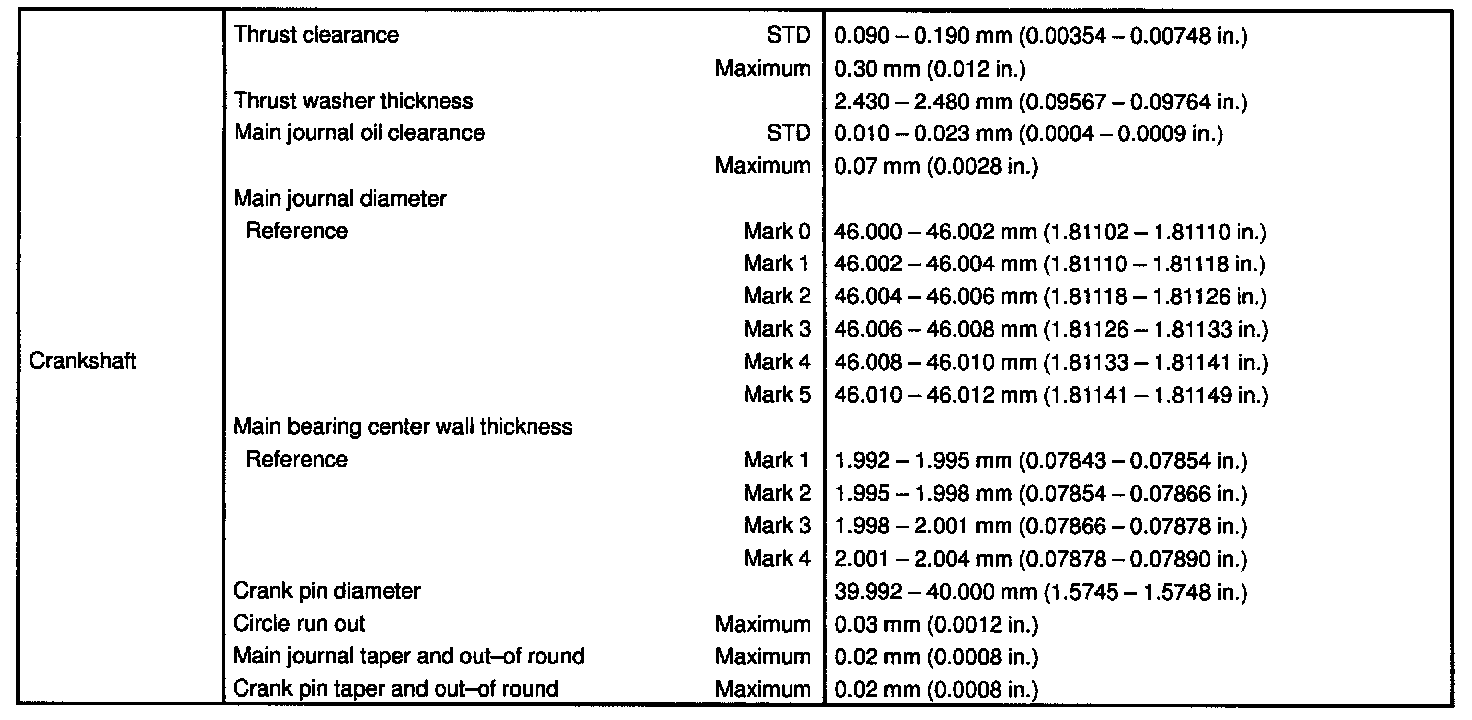

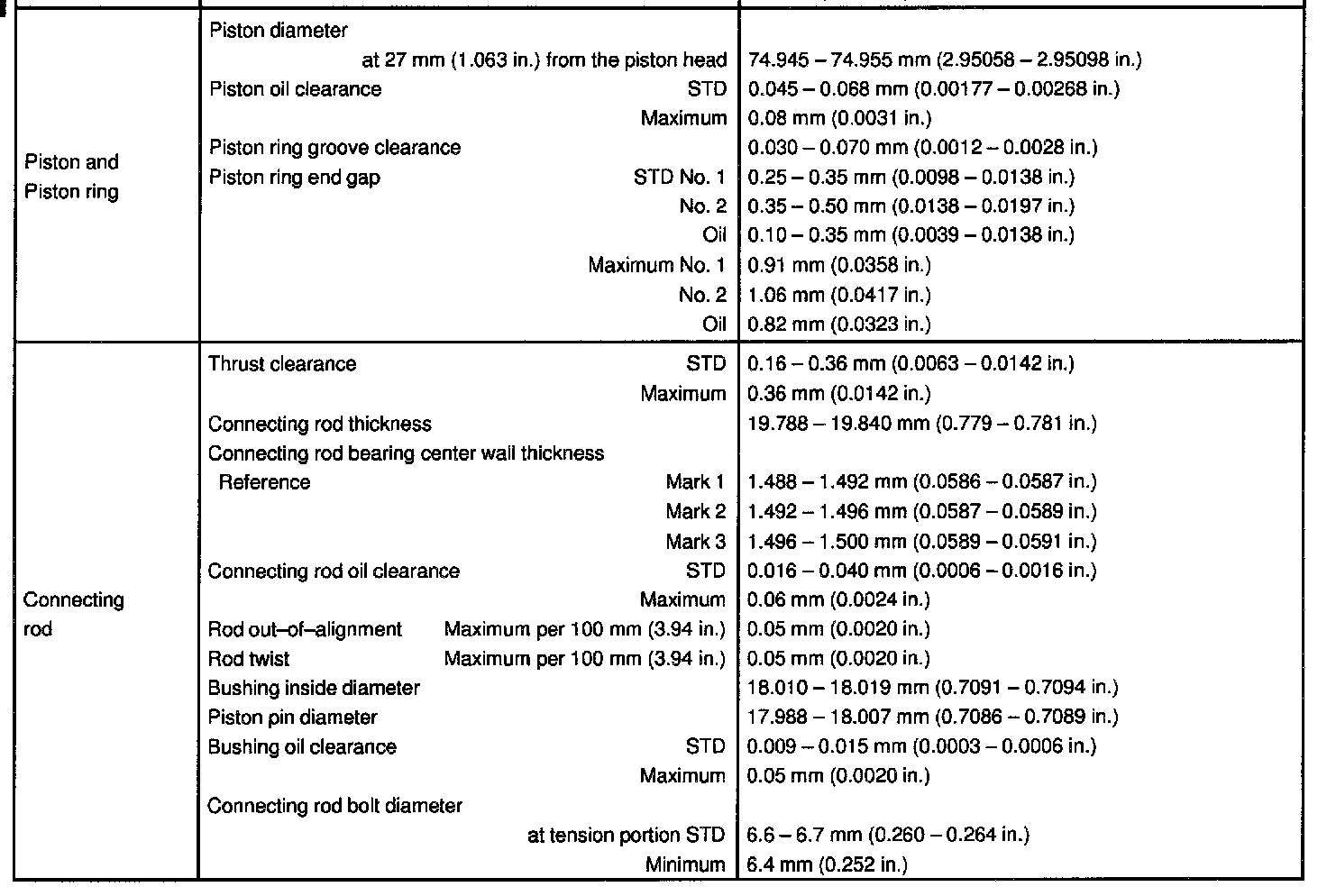

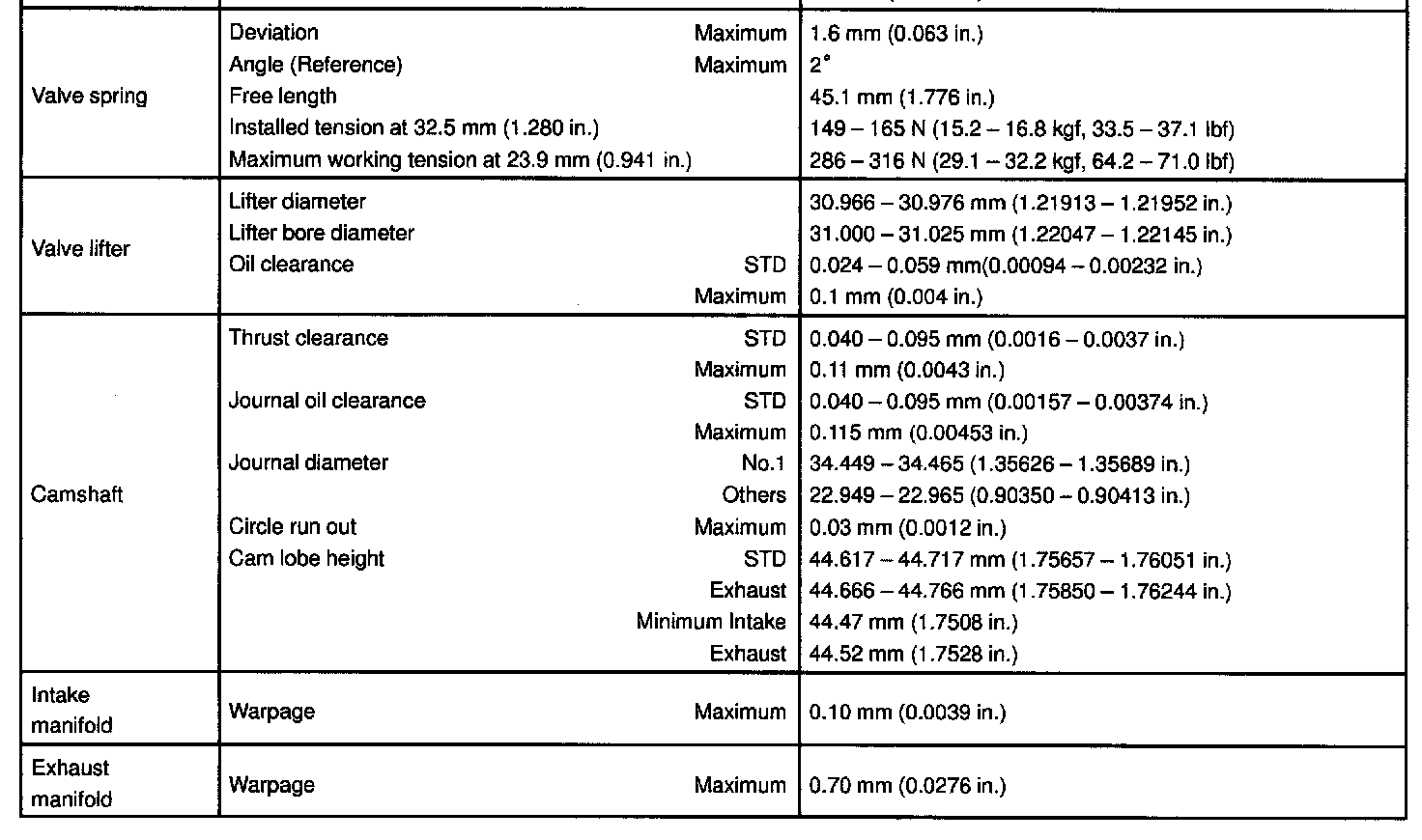

1.5L Engine Mechanical Data:




1.5L Engine Mechanical Cont.:





1.5L Engine Mechanical Cont.:




1.5L Engine Mechanical Cont.:





1.5L Engine Mechanical Cont.:




1.5L Engine Mechanical Cont.:





1.5L Engine Mechanical Cont.:
